Peugeot 307 Thermo Top C, E
27

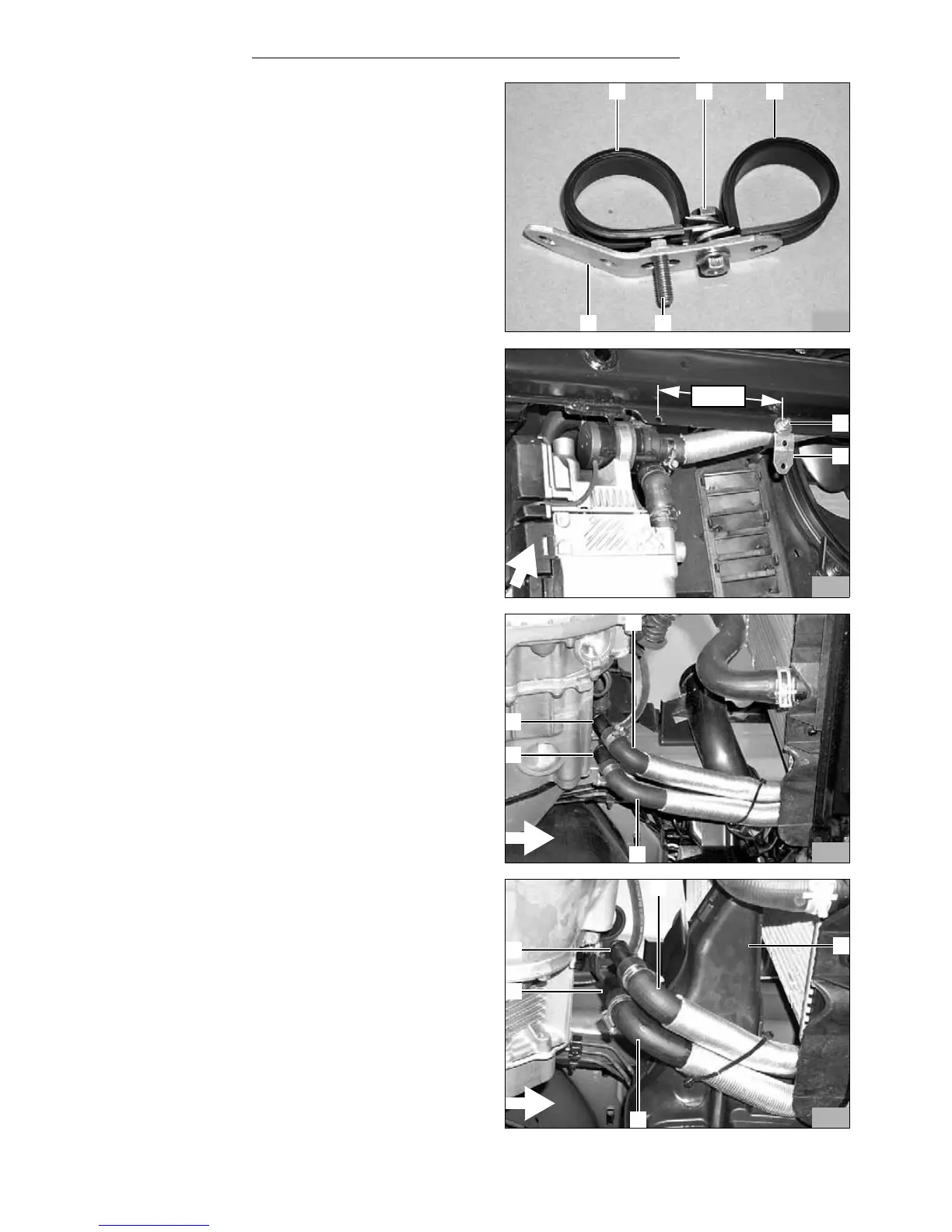

- Insert the M6x20 screw (4) according to the figure
with the body washer in the oblong hole on the bend
fastening strap (5).
- Loosely pre-assemble the rubberized 34mm tube
clamps (1,3) according to the figure with the M6x20
bolt and M6 flanged nut.
- Drill a Ø 6.5mm bore hole at position (1) in the cross-
piece according to the figure.
- Insert the preassembled fastening strap (2) into the
hole with the bolt (51/4) according to the figure and
fasten to the cross-piece with the body washer and
the flanged nut.
- Slide the 1,000 mm heat protection hose on the
1,200 mm long water hose.
- Slide the 1,000 mm heat protection hose on the
1,150mm long water hose.
NOTE:
Figure 53 shows the vehicle without a resonator.
Figure 54 shows the vehicle with a resonator (52/2).
Figure 55 shows the vehicle with an automatic
transmission.
- Run the 1,150mm long water hose (53/2 or 54/3;
56/1,3 and 55/3) from the engine compartment
through the right rubberized tube clamp (56/4) to the
front as shown in the figures 53 to 58.
- Run the 1,200 mm long water hose (53/1 or 54/1;
56/3 and 55/4) from the engine compartment over
the 1150 mm water hose to the front as shown in the
figures 53 to 58.
- Align both 90° bends up as shown in figure 53,
figure 54 or figure 55.
- Insert the 20x20 (53/3,4; 54/4,5; 55/1,2) connecting
pipe in the 1,150mm long water hose and in the
1,200 mm long water hose and secure with hose
clamps.
51
5 4
1 2
3
52
2
1
150mm
53
2
1
4
3
54
2
1
3
5
4
