WEG CFW500 - Power Connections

CFW500 | 17
Installation and Connection
English
3.2.3 Power Connections
Shield
PE
Disconnecting
switch
Fuses
R
S
T
Input power
supply
PE
WVU
R BRS T U-Ud +Ud V W
PEPE
(*)
(*) The power terminals -Ud, BR and +Ud are not available in models of frame size A.
(a) Frame sizes A, B, C and F
Shield
PE
Disconnecting
switch
Fuses
R
S
T
Input power
supply
PE WVU
R BR
DCR
S T U-Ud +Ud V W
PEPE
(b) Frame sizes D and E

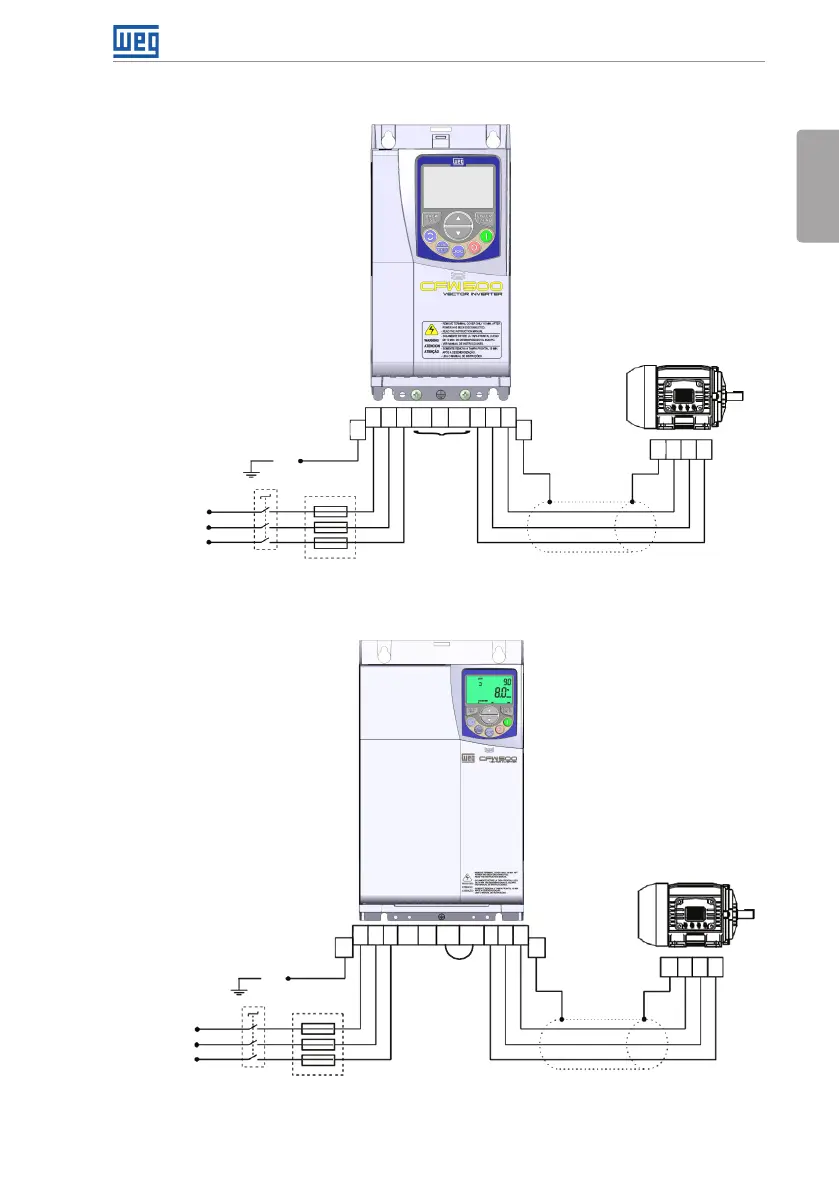

Figure 3.1: (a) and (b) Power and grounding connections
