5.2.2 Menu BASIC - Basic Application

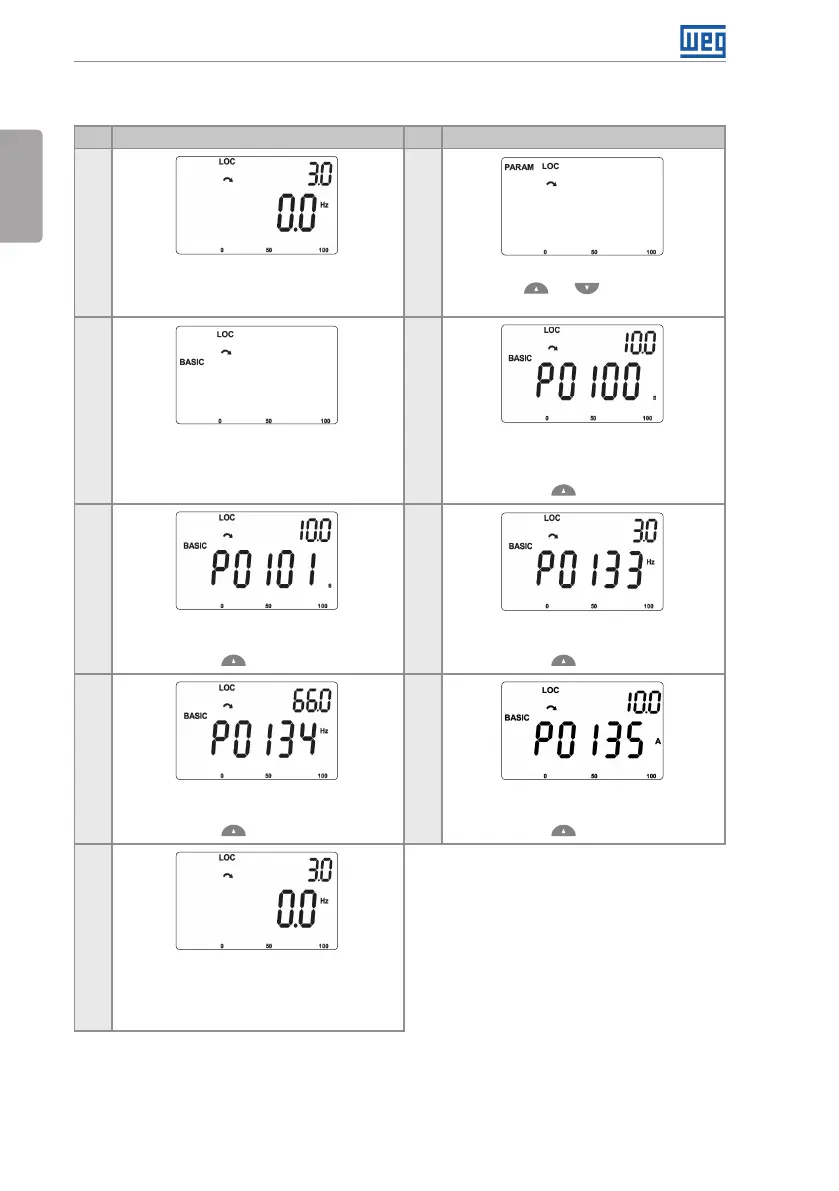

Step Indication on the Display/Action Step Indication on the Display/Action
1
2
 Monitoring mode. Press the key ENTER/
MENU to enter the 1
st
level of the
programming mode
 The PARAM group is selected, press
the keys or until selecting the
BASIC group
3 4
 When the BASIC group is selected press
the key ENTER/MENU
 Basic Application routine is started. If
necessary, modify the content of "P0100
- Acceleration Time"
 Press the key for the next parameter
5 6
 If necessary, modify the content of "P0101
- Deceleration Time"
 Press the key for the next parameter
 If necessary, modify the content of "P0133
- Minimum Speed"
 Press the key for the next parameter
7 8
 If necessary, modify the content of "P0134
- Maximum Speed"
 Press the key for the next parameter
 If necessary, modify the content of "P0135
- Maximum Output Current"
 Press the key for the next parameter
9
 To end the Start-up routine, press the key
BACK/ESC
 To return to the monitoring mode, press the
key BACK/ESC again
Figure 5.4: Sequence of the basic application group
