Powering up and Startup
English
5.2 STARTUP
The startup is explained in a very simple way, using the programming features with the existing
parameter groups in the menus STARTUP and BASIC.
5.2.1 STARTUP Menu
5.2.1.1 V/f Control Type (P0202 = 0)

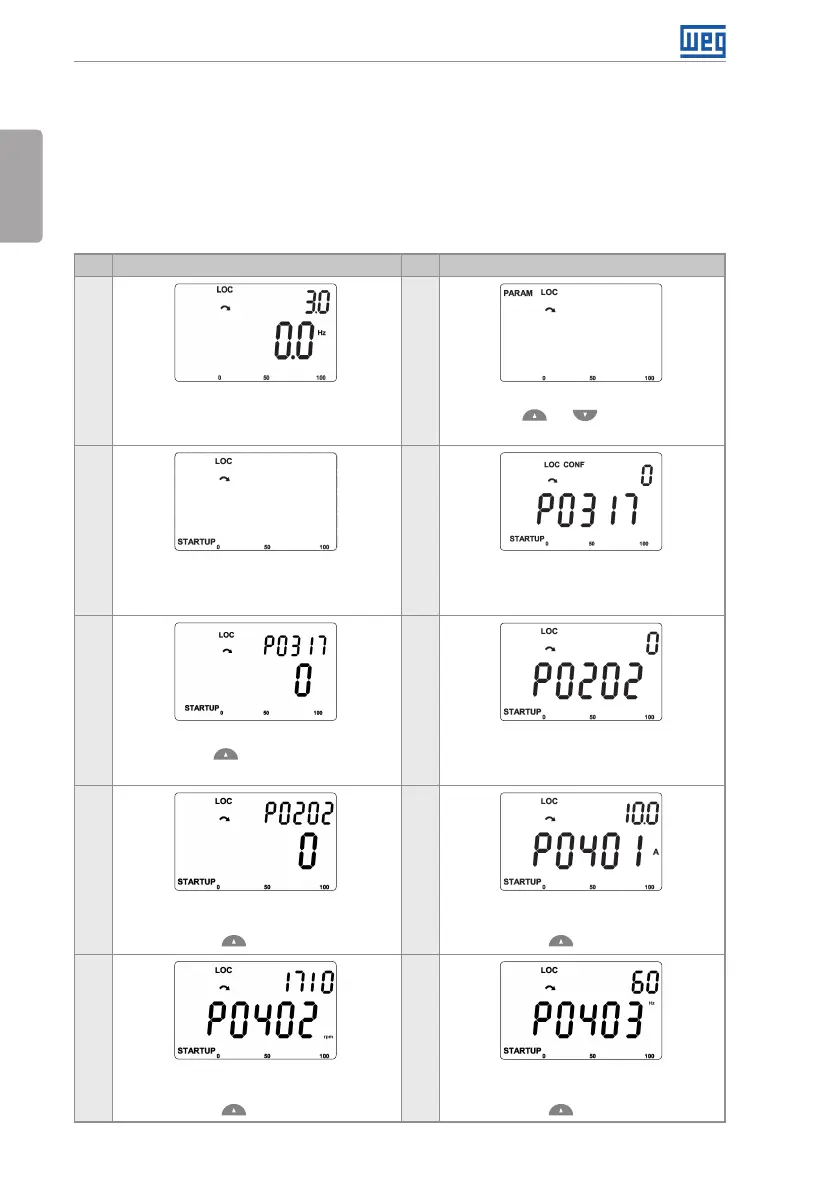

Step Indication on the Display/Action Step Indication on the Display/Action
1
2
 Monitoring mode
 Press the key ENTER/MENU to enter 1
st
level of programming mode
 The PARAM group is selected, press
the keys or until selecting the
STARTUP group
3 4
 When the STARTUP group is selected
Press the key ENTER/MENU
 The parameter "P0317 - Oriented Start-
Up" is then selected, press the ENTER/
MENU to get into the parameter content
5 6
 Change the parameter P0317 to "1 - Yes",
by using the key
 If necessary, press ENTER/MENU to
modify the content of "P0202 - Control
Type" for P0202 = 0 (V/f)
7 8
 When the desired value is reached, press
ENTER/MENU to save the modification
 Press the key for the next parameter
 If necessary, modify the content of "P0401
- Motor Rated Current"
 Press the key for the next parameter
9 10
 If necessary, modify the content of "P0402
- Motor Rated Speed"
 Press the key for the next parameter
 If necessary, modify the content of "P0403
- Motor Rated Frequency"
 Press the key for the next parameter
