INSTALLATIONANDCONNECTION
1
4
32
5 6

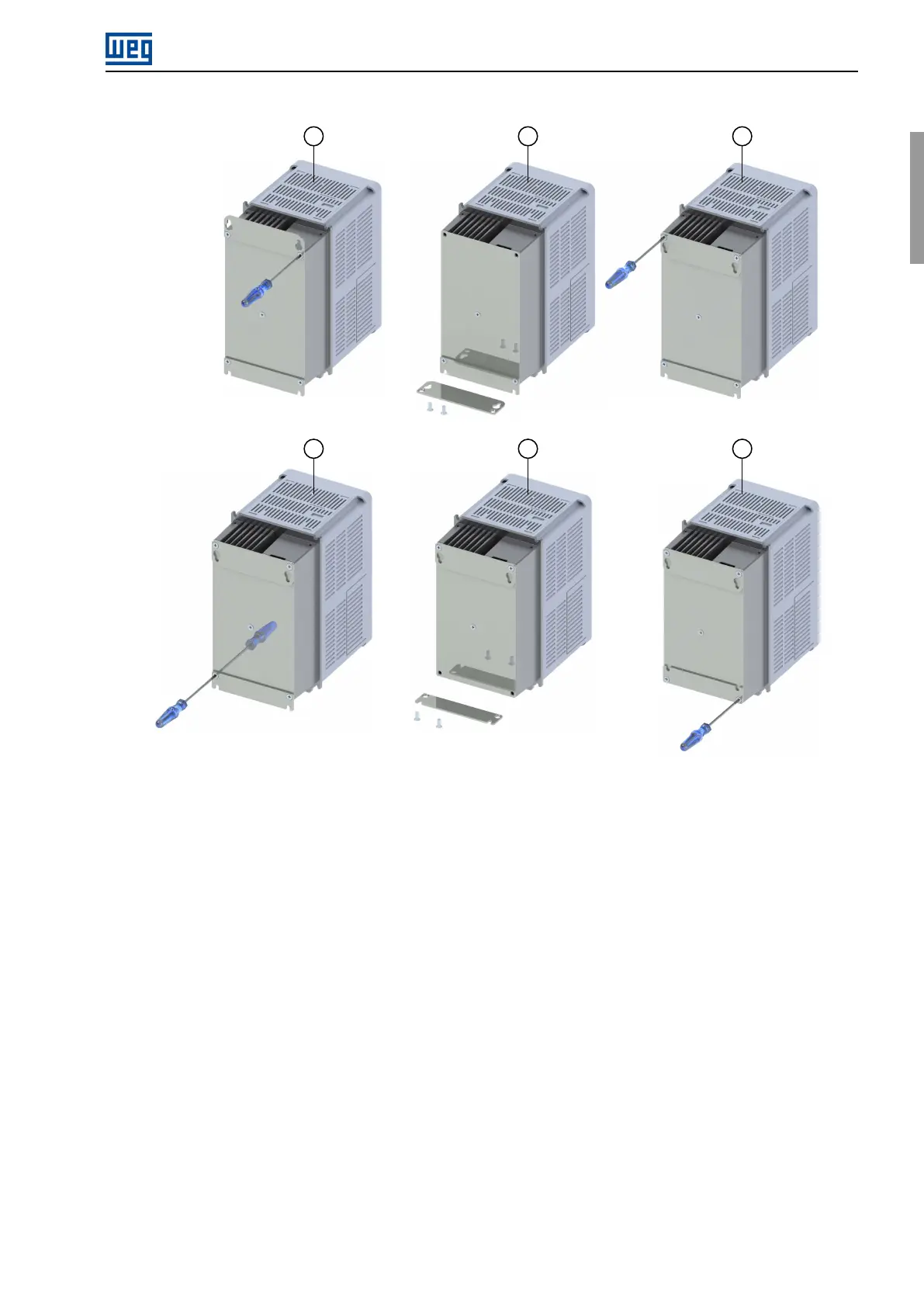

Figure3.4:Repositioningofthemountingbrackets
3.1.5AccesstoControlandPowerTerminals
InCFW900invertersofframesA,B,CandD,itisnecessarytoremovetheHMIandthefrontcovertoaccessthe
controlandpowerterminals,asshownin
Figure3.5.
CFW900|15
