INSTALLATIONANDCONNECTION
1 32

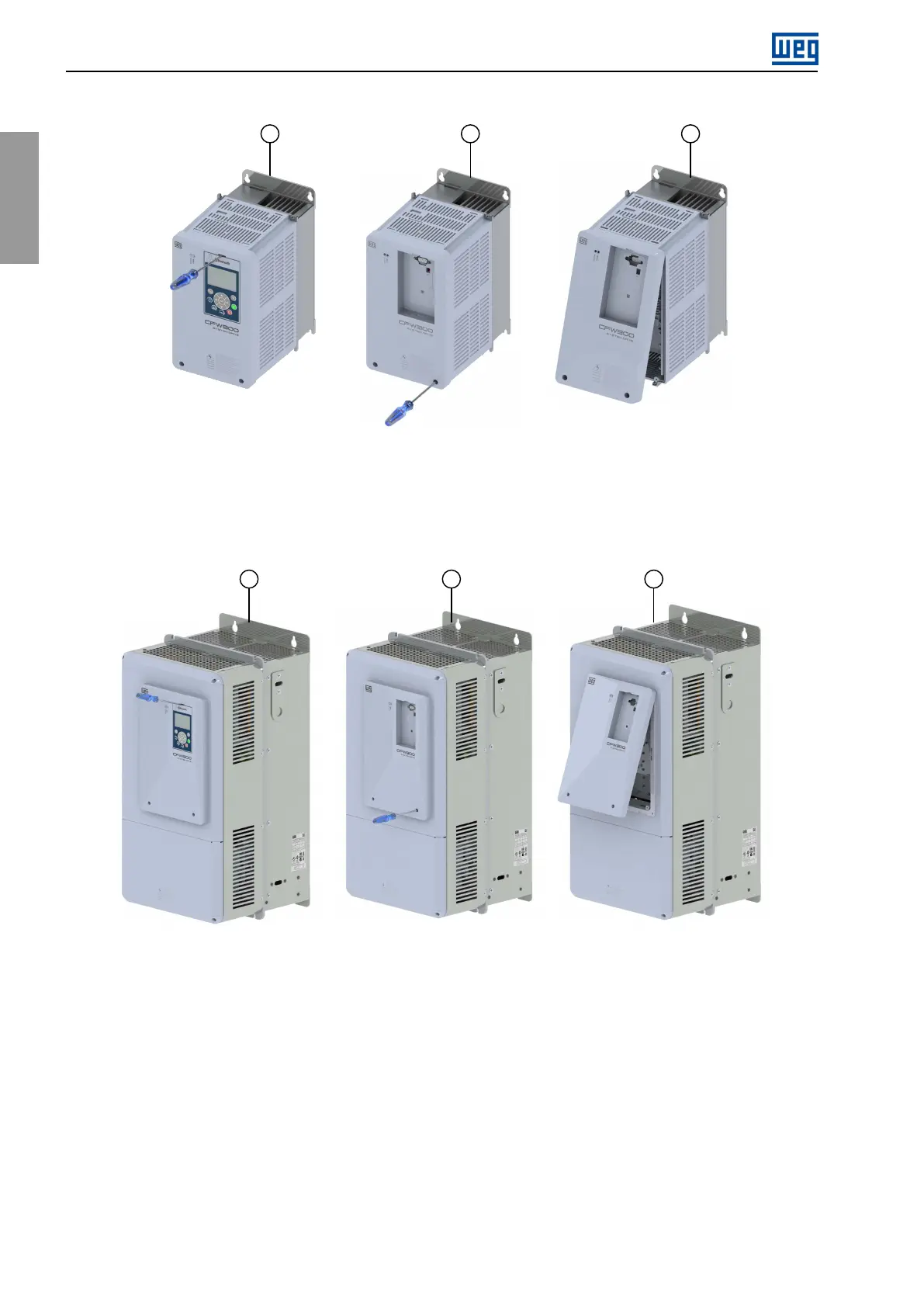

Figure3.5:RemovalofHMIandfrontcover
IncaseofinvertersofframesizeE,itisnecessarytoremovetheHMIandcontrolrackcovertoaccessthecontrol
connectors(see
Figure3.6).Inordertoaccessthepowerconnectors,removethelowerfrontcoverasshownin
Figure3.7.
1 32
Figure3.6:HMIandcontrolrackcoverremoval
16|CFW900
