Installation and Connection

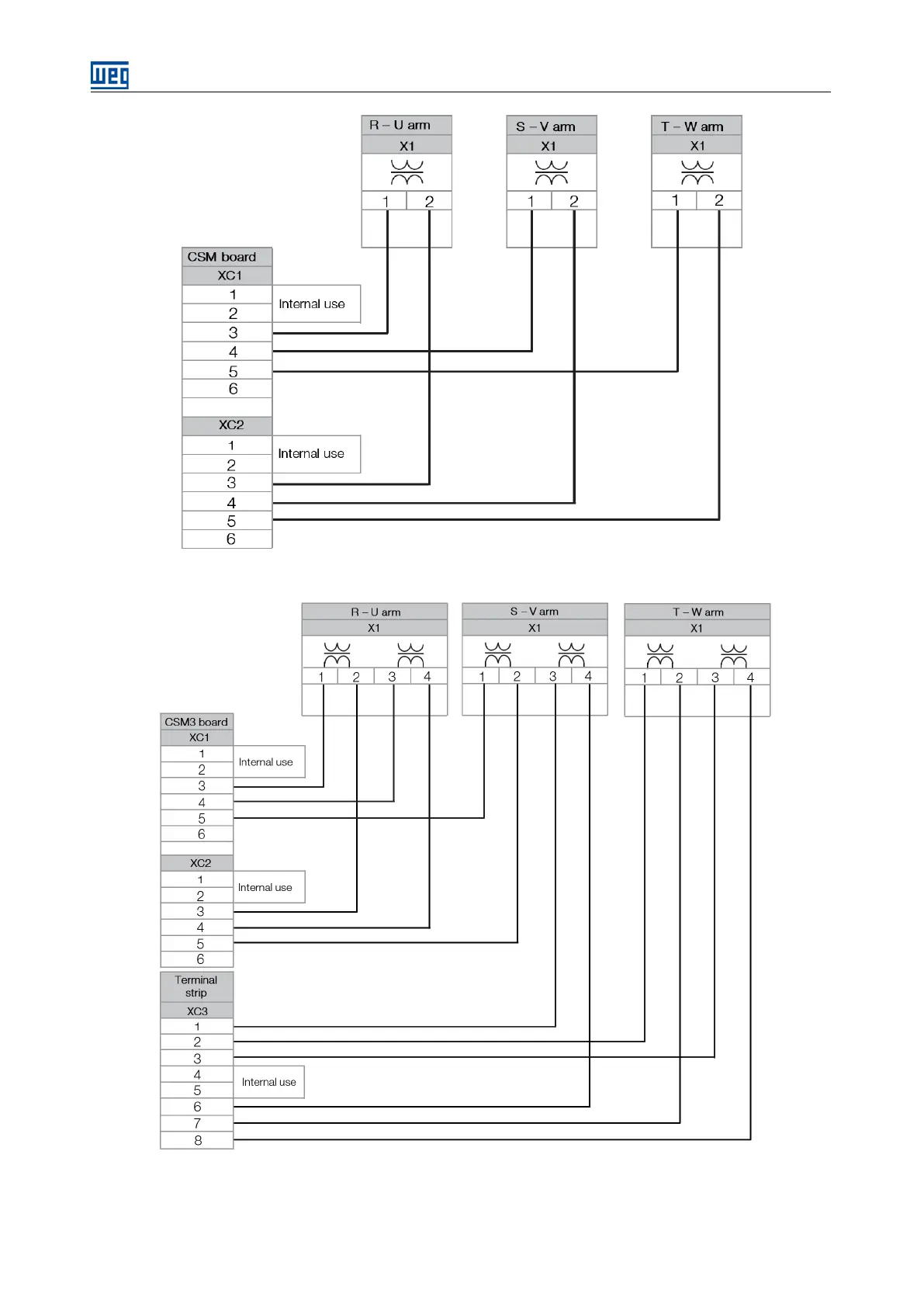

Figure 5.25: Insulated supply connections between the CSM3 board and the power arms of the model 6900 V (V3).
Figure 5.26: Insulated supply connections between the CSM3 board and the power arms of the model 13800 V (V3).
