Installation and Connection

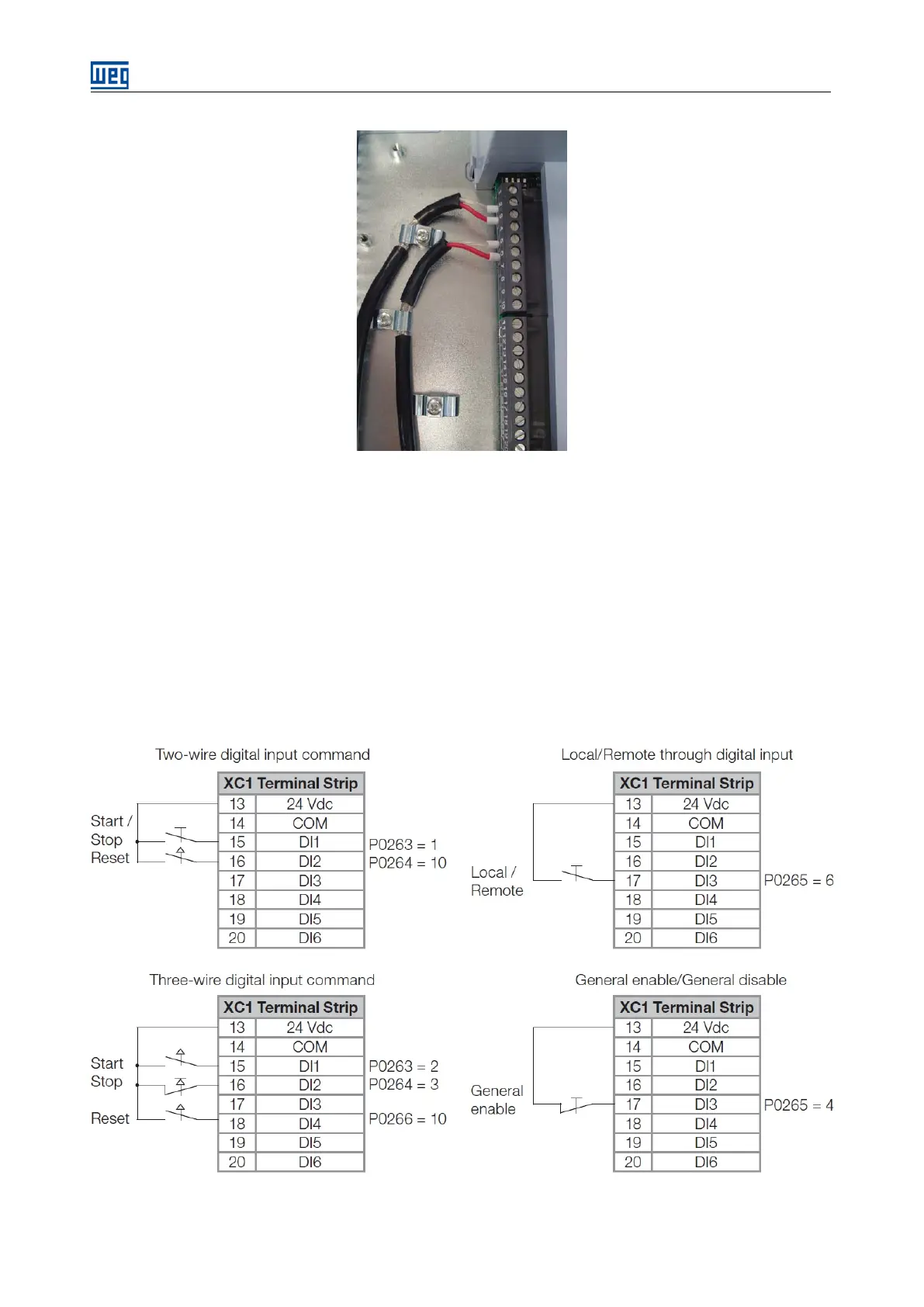

Figure 5.39: Example of cable shield connection of connector XC1
Motor starting control through digital inputs:
The SSW7000 presents 5 command sources: HMI, digital inputs, serial communication, fieldbus
communication and SoftPLC. The command source is selected through the parameters P0220, P0228,
P0229 and P0230. For more details, refer to the section 10.1 - Local/Remote Configuration, in the
programming manual.
When the command source is selected as digital inputs, then the programming is done through the
parameters P0263 to P0268. For more details, refer to the section 10.4 - Digital Inputs, in the programming
manual.
The digital inputs feature programmable functions; figure 5.40 shows some examples of programming.
Figure 5.40: Digital input command examples
