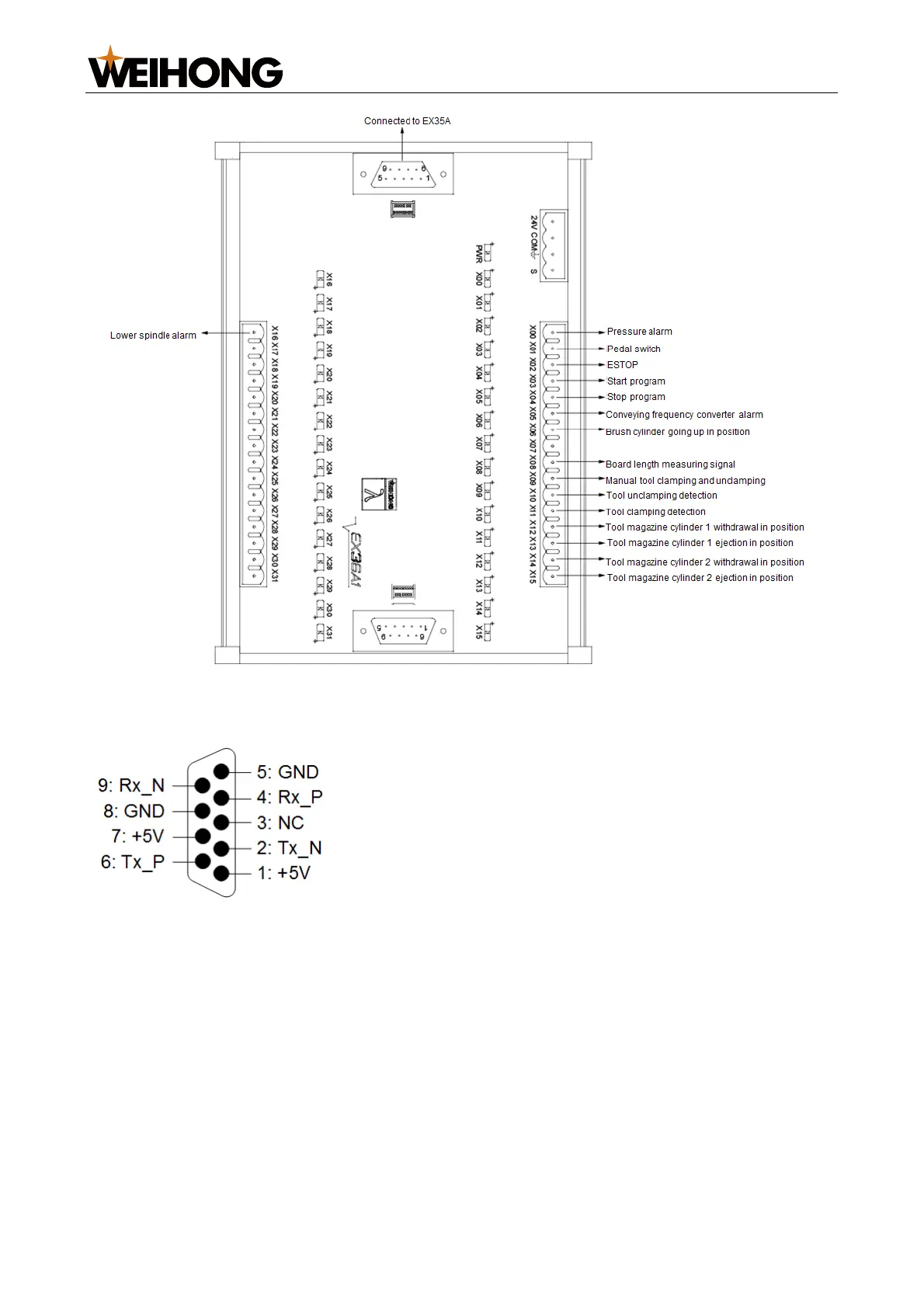

2.2 Operation Panel Ports
Descriptions of the operation panel ports are shown below:
 +5V: Provides power supply for the operation panel.
 Tx_N: Sends differential signal.
 NC: Needs no wire connection.
 Rx_P: Receives differential signal.
 GND: Connects to the ground.
 Tx_P: Sends differential signal.
 Rx_N: Receives differential signal.
2.3 Signal Type
The following signal types are supported:
 Switch Value Input Signal
 Relay Output Signal
