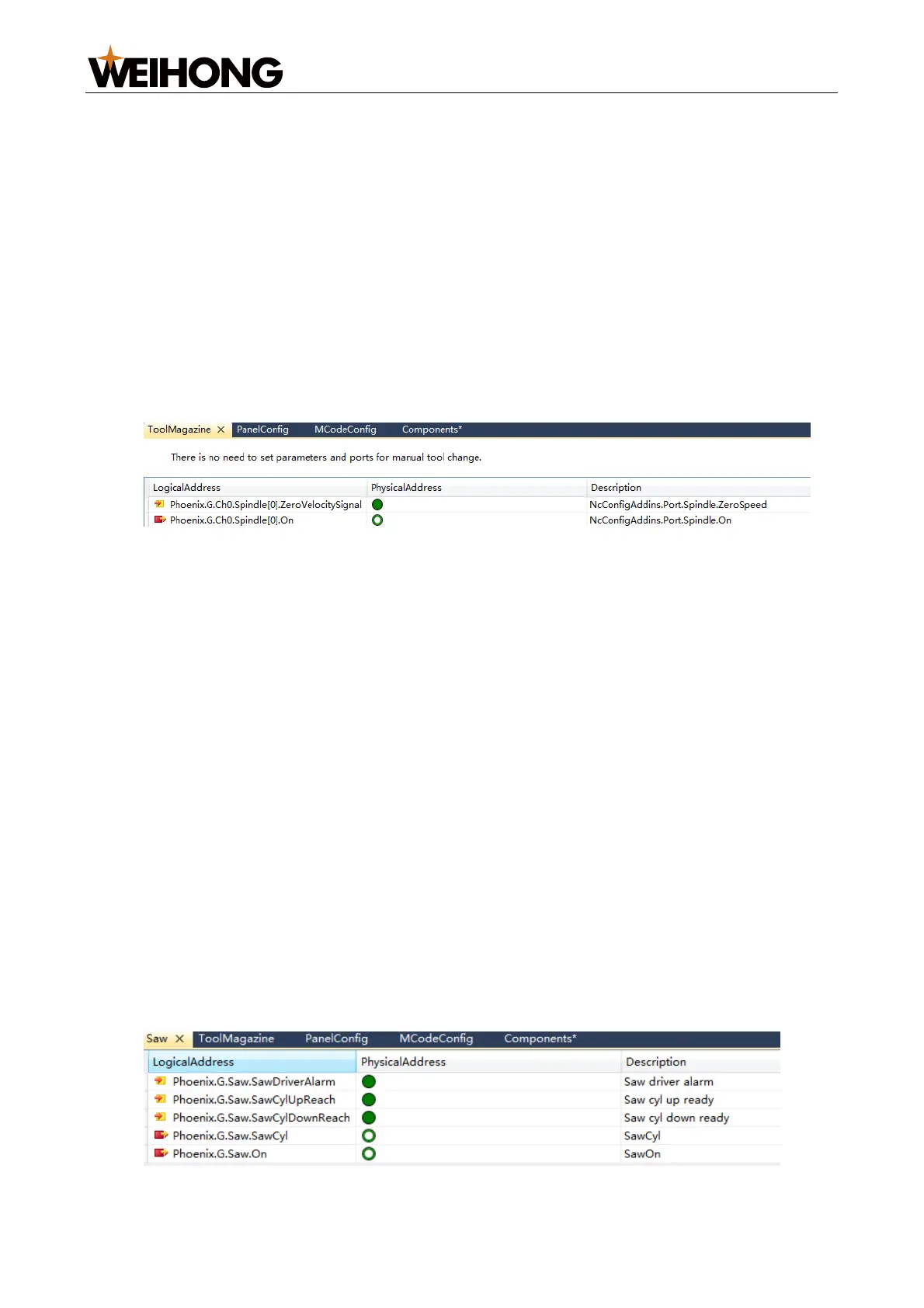

8.3.3 Configure the Tool Magazine
The system supports tool magazines of different mechanical structures, combination of
multi-cylinder single-frequency and multi-cylinder multi-frequency functions, and tool
magazine selection.
Tool magazine options on the Components page include:
NoneMagazine
LinearMagazine
DiskMagazine
ServoToolMagazine
Cylinder
Follow the steps below to configure the tool magazine:
1. In the left Configuration list, double-click ToolMagazine to open the
ToolMagazine page on the right:
2. Set the tool magazine parameters based on the tool magazine type specified on the
Components page.
o NoneMagazine: No tool magazine parameters need setting.
o LinearMagazine: Set the parameter Tool magazine capacity (the
maximum number of tools).
o DiskMagazine: Set the parameter Tool magazine capacity (the maximum
number of tools) and Count tool overtime (maximum time waiting for tool
count signals).
o ServoToolMagazine: Set the parameter Tool magazine capacity (the
maximum number of tools) and rotary axis name.
o Cylinder: Select the cylinder type and set the parameter Cylinder count.
Multi-Cylinder Single-Fre: Every Z axis has multiple cylinders. One
inverter controls multiple spindles.
Multi-Cylinder Multi-Fre: Every Z axis has multiple cylinders. Multiple
inverters control multiple spindles.
Four-Cylinder Double-Fre: Every Z axis has four cylinders. Two
inverters control multiple spindles.
3. Double-click the target PhysicalAddress field to specify a physical address
(controller and port) for the corresponding logical address.
8.3.4 Configuring Saws
Follow the steps below to configure saw:
1. In the left Configuration list, double-click Saw to open the Saw page on the right:
