1 System Introduction
1.1 Overview
This section gives you a brief introduction of the hardware and software of the NcStudio
Phoenix Three-axis Engraving System.
Hardware
Industrial computer: NC60A, NC65C, NC68A, etc.
Lambda controller
o Lambda 21B: Applicable to bus control systems
o Lambda 21A: Applicable to non-bus control systems
o Lambda 20A and so on
EX series terminal board: EX31A
For the hardware connection diagram, see section 1.2 Hardware Connection Diagram.
Software
For introduction of the NcStudio Phoenix Three-axis Engraving System software
interface, see section 1.3 Software Interface.
1.2 Hardware Connection Diagram
Hardware connection method varies based on the control system type. Example of a non-
bus control system and a bus control system using NC60A are shown below.

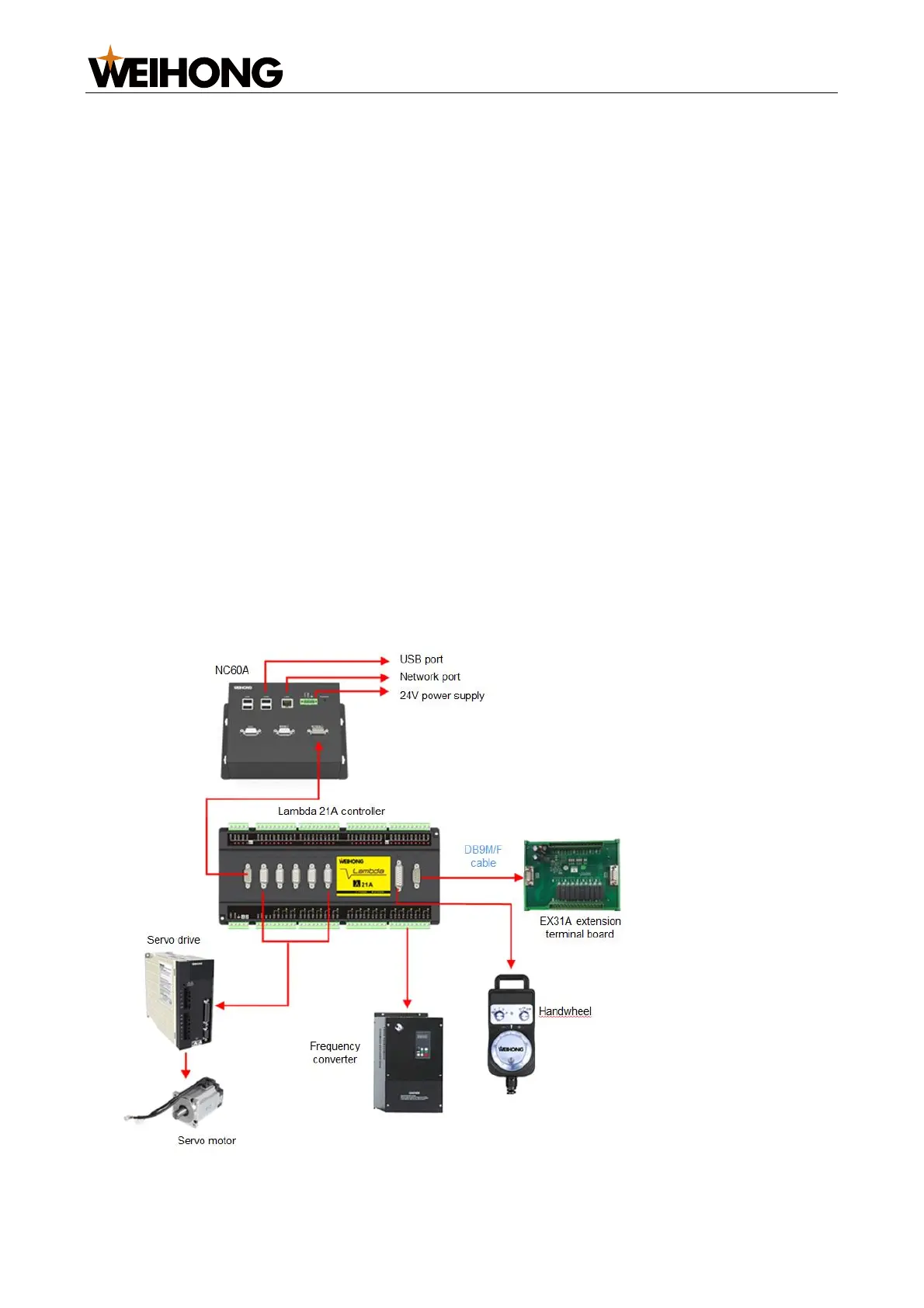

Non-bus control system
Bus control system
