上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
40 / 61

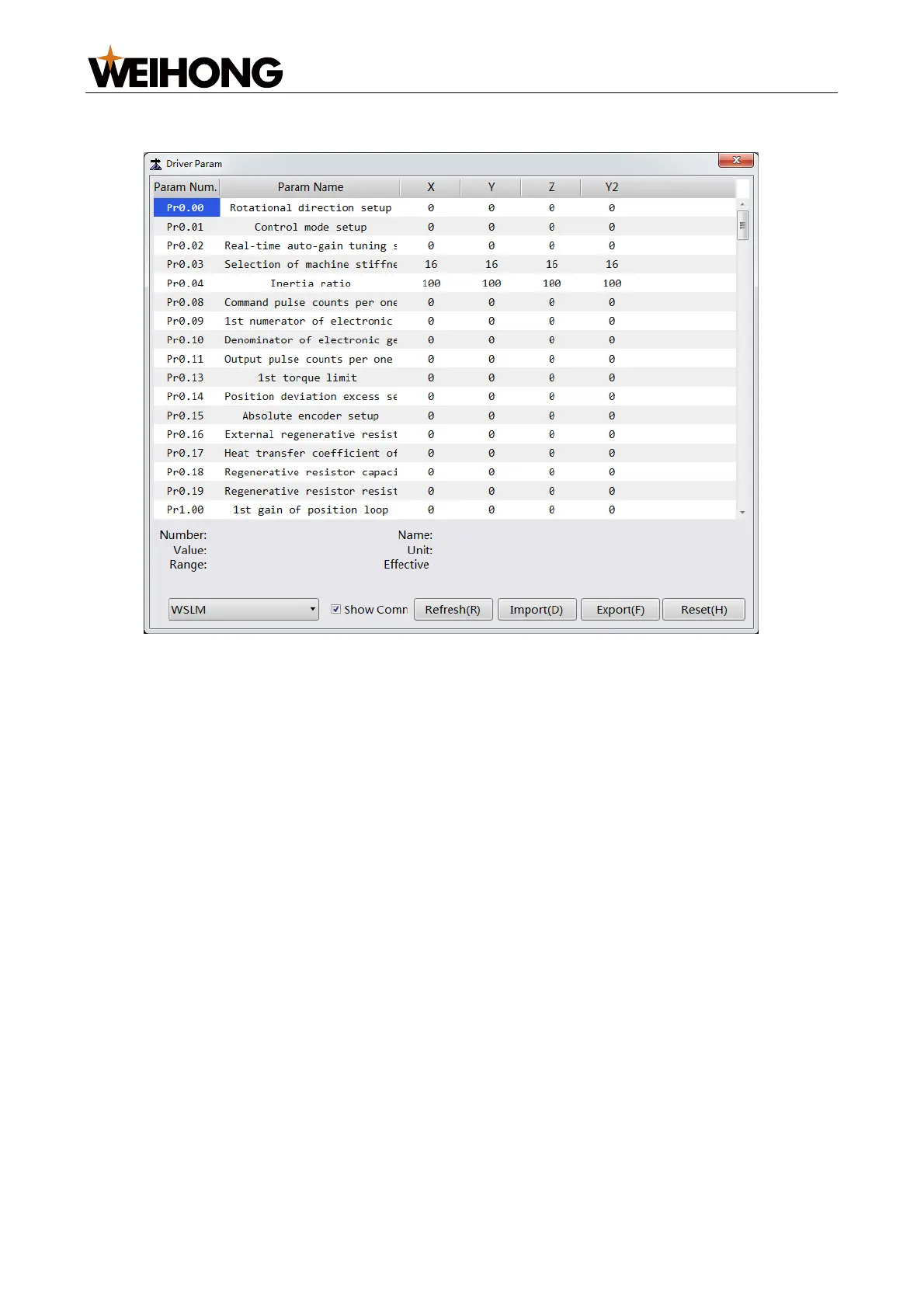

1. In the menu bar, go to System > Driver Parameters to open the Driver Param
window:
2. Double-click the target field, enter the target value, and click OK.
In the Driver Param window, the following functions are also supported:
To show common driver parameters, tick Show common.
To refresh the parameter list, click Refresh.
To import drive parameter settings, click Import, select the target file, and click
Open.
To export drive parameter settings, click Export, select the target storage path, and
click Save.
To restore parameter default values, click Reset.
7.1.3 Tool Compensation Parameters
If a tool is worn or changed, the diameter or length of the new tool may be different. In this
case, you need to modify the tool compensation parameter values to achieve accurate
machining.
Before setting tool compensation parameters:
Set the global parameter Enable Tool Length Compensation to Yes.
Set the global parameter Enable Tool Radius Compensation to Yes.
Measure and record the following parameters:
o Tool Diameter: The diameter of the tool.
o Diameter Wear: The amount of the tool diameter that is worn.
o Tool Length: The length of the tool.
o Length Wear: The amount of the tool length that is worn.
Follow the steps below to set tool compensation values:
