2 Wiring
This section gives you a brief introduction of the signal types supported by the NcStudio
Phoenix Three-axis Engraving System and the port definition.
2.1 Hardware
This section gives introduction of the following hardware:
NC60A
Lambda controller
EX31A
2.1.1 NC60A

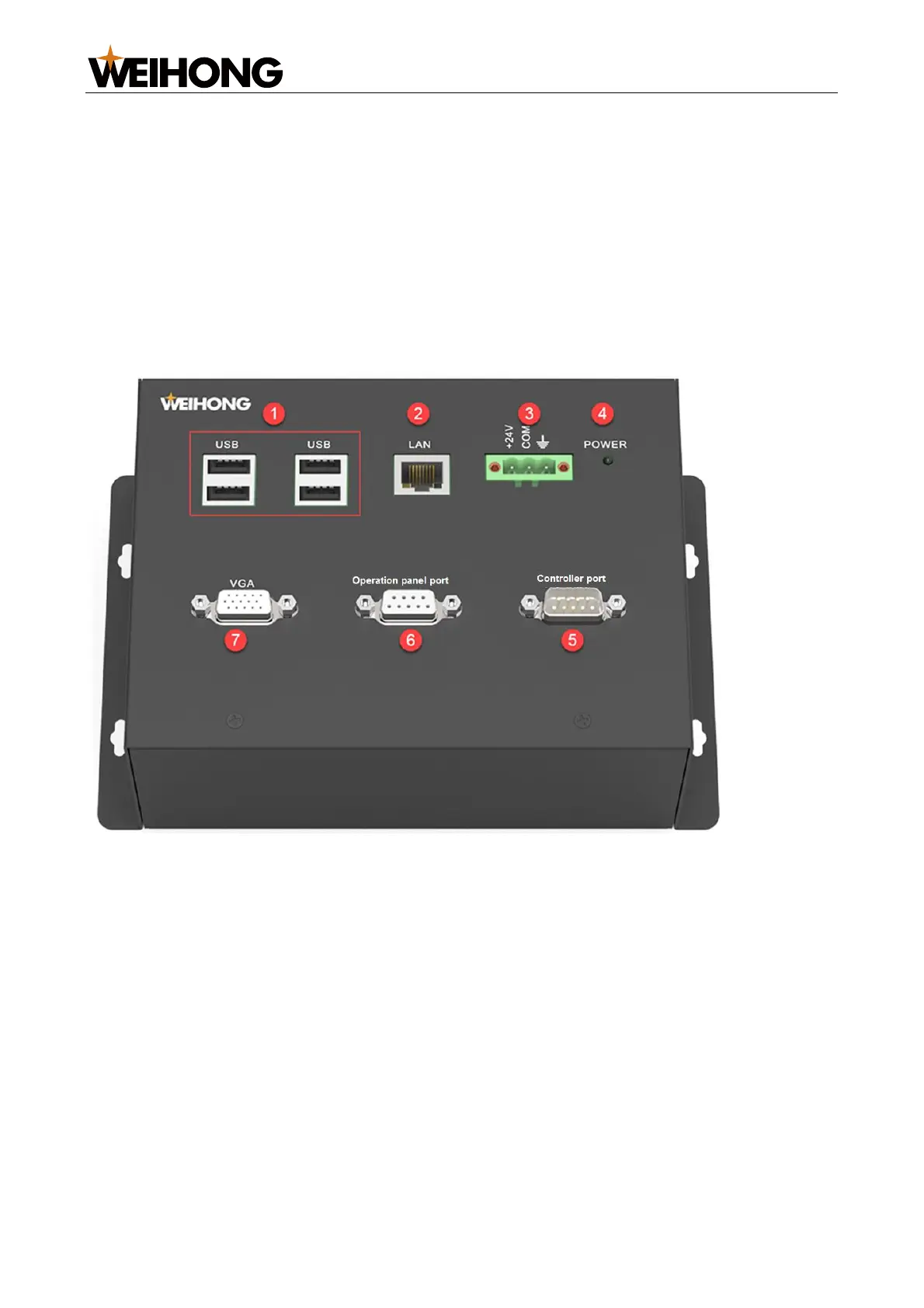

Definitions of the NC60A ports are shown below:
1. USB 2.0 port: For USB data transmission
2. Network port: For network connection
3. 24V DC power supply port: For connection to a 24V DC power supply
4. LED indicator: Shows the current system status
o ON: The system is powered on
o OFF: The system is not powered on
5. Lambda controller port: Phoenix bus RS485 port. For connection to the Lambda
controller.
6. Operation panel port: Phoenix bus RS485 port. For connection to the operation
panel.
7. VGA display port: For connection to the display
2.1.2 Lambda Controller
Use different Lambda controllers based on the type of the control system:
Lambda 21B: Applicable to bus control systems
Lambda 21A: Applicable to non-bus control systems
