上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
58 / 61
10.8 Going to Fixed Point
You can control the axes to move to a point with specified mechanical coordinates.
You can change the point mechanical coordinates by modifying the values of Fixed Point
Position(X), Fixed Point Position(Y), and Fixed Point Position(Z) parameters.
Follow the step below to make the axes move to the point:
In the menu bar, go to Machine > To Fixed Point.
10.9 MDI
The system supports at most 8 user-entered simple commands to achieve quick
movement or machining.
Follow the steps below to use the MDI function:

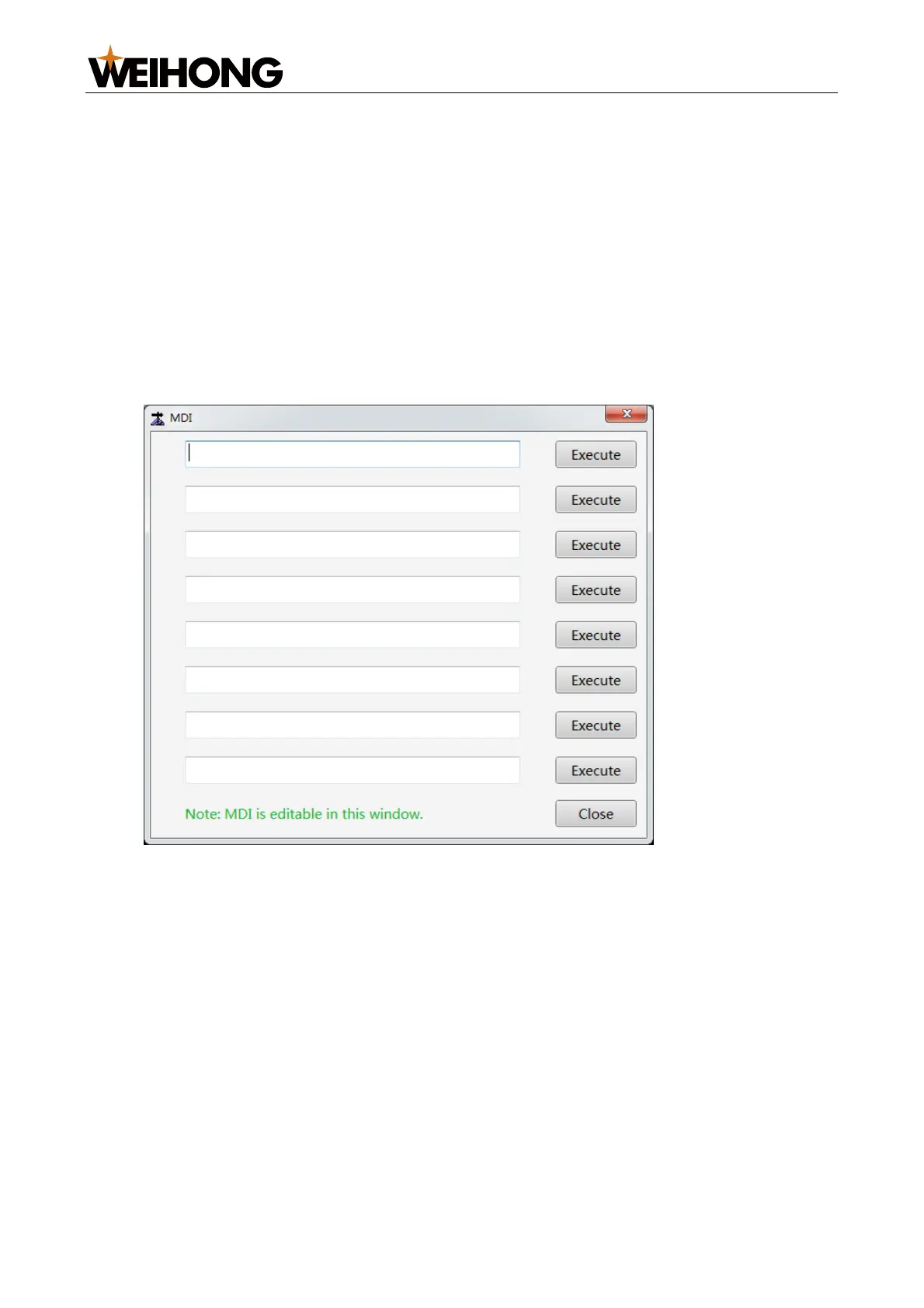

1. In Auto or Manual mode, go to Machine > MDI in the menu bar:
2. Enter a command in a field and click Execute to make the system run the entered
command.
10.10 Clearing Drive Alarms
Some types of drive alarms can be cleared in the software. In some cases, after such
alarms are cleared, no other drive alarms will be reported and the system will exit
emergency stop state.
Follow the step below to clear drive alarms:
In the menu bar, go to Machine > Clear Servo Alarm.
10.11 Reconnecting to the Controller
In cases such as the controller is powered off and on, you can reconnect to the controller
without restarting the software.
Follow the step below to reconnect to the controller:
