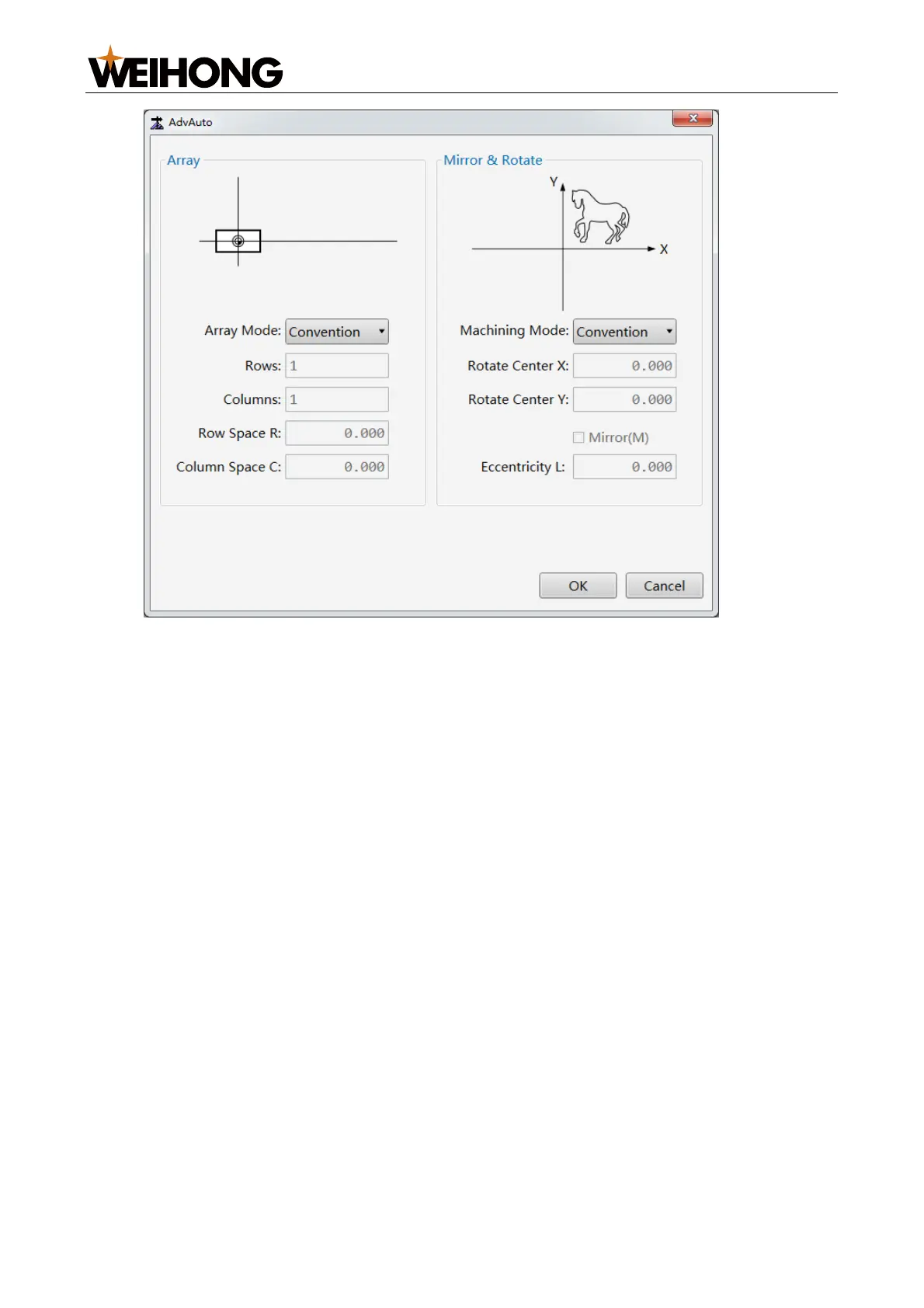

2. In the Mirror & Rotate area, click the Machining Mode pull-down menu and select
an option:
o To rotate the path:
a. Select CW 90°/CW 180°/CCW 90°.
b. Enter the rotation center X and Y coordinates in the Rotate Center X and
Rotate Center Y fields.
o To mirror the path:
a. Select Mirroring by X/Mirroring by Y.
b. Tick Mirror.
c. Optional: To adjust the position of the paths, enter the target deviation in
the Eccentricity L field.
The machining mode is set to Convention by default, which means not to enable
rotation or mirroring.
5.7 Machining Cycle
You can set the machining to be repeated for a certain number of times and at certain
interval, and check the current times of machining.
Every complete running of the program counts as one time.
Follow the steps below to set machining cycle:
1. In the menu bar, go to Advanced > Cycle Setting to open the Cycle Setting
dialog box:
