8.3 Configuring Machine Parts
In NcConfig, you can select and configure the machine parts in use, such as M codes,
operation panel, tool magazine, saw, double work station, clamp, and handwheel.
Follow the steps below to configure machine parts:

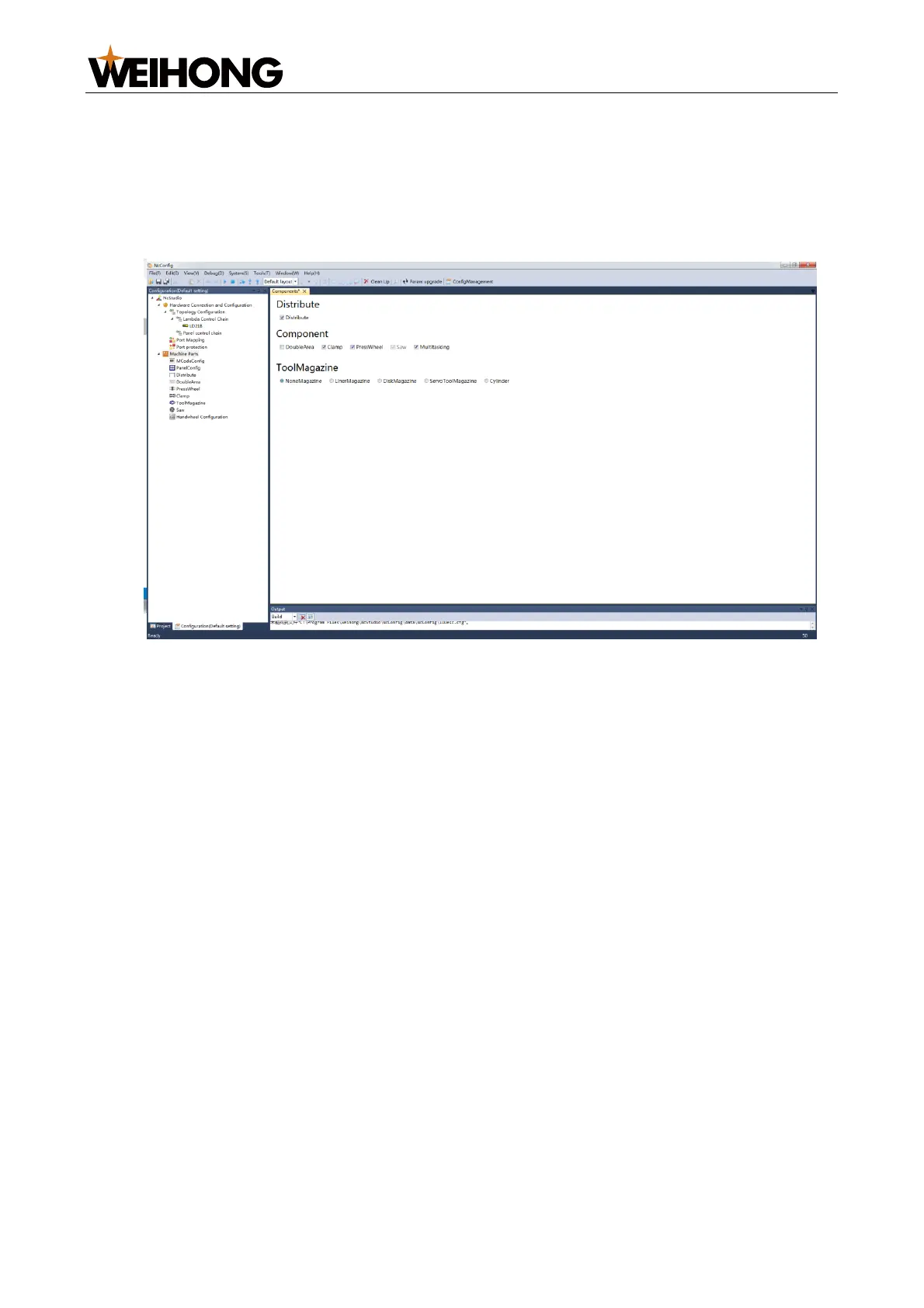

1. On the left Configuration list, go to NcStudio > Machine Parts. Double-click
Machine Parts to open the Components page on the right.
2. Tick required parts. The functions of the ticked parts will be displayed in the
software.
3. Configure the parts as shown below:
o Configure M codes
o Configure function buttons
o Configure the tool magazine
o Configure saws
o Configure dual drive
o Configure dual work stations
o Configure press wheels
o Configure clamps
o Configure the handwheel
8.3.1 Configure M Codes
You can configure the M codes for control of machine movement and port status.
After a machine part is ticked and the settings saved, corresponding available M codes will
be displayed on the MCodeConfig page.
Note: Configure M codes based on the selected machine parts.
M codes include:
Function M codes: Running functional M codes generates machine movement.
Valve M codes: Running valve M codes controls port status.
Follow the steps below to configure M codes:
To Next Page
