上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
15 / 61

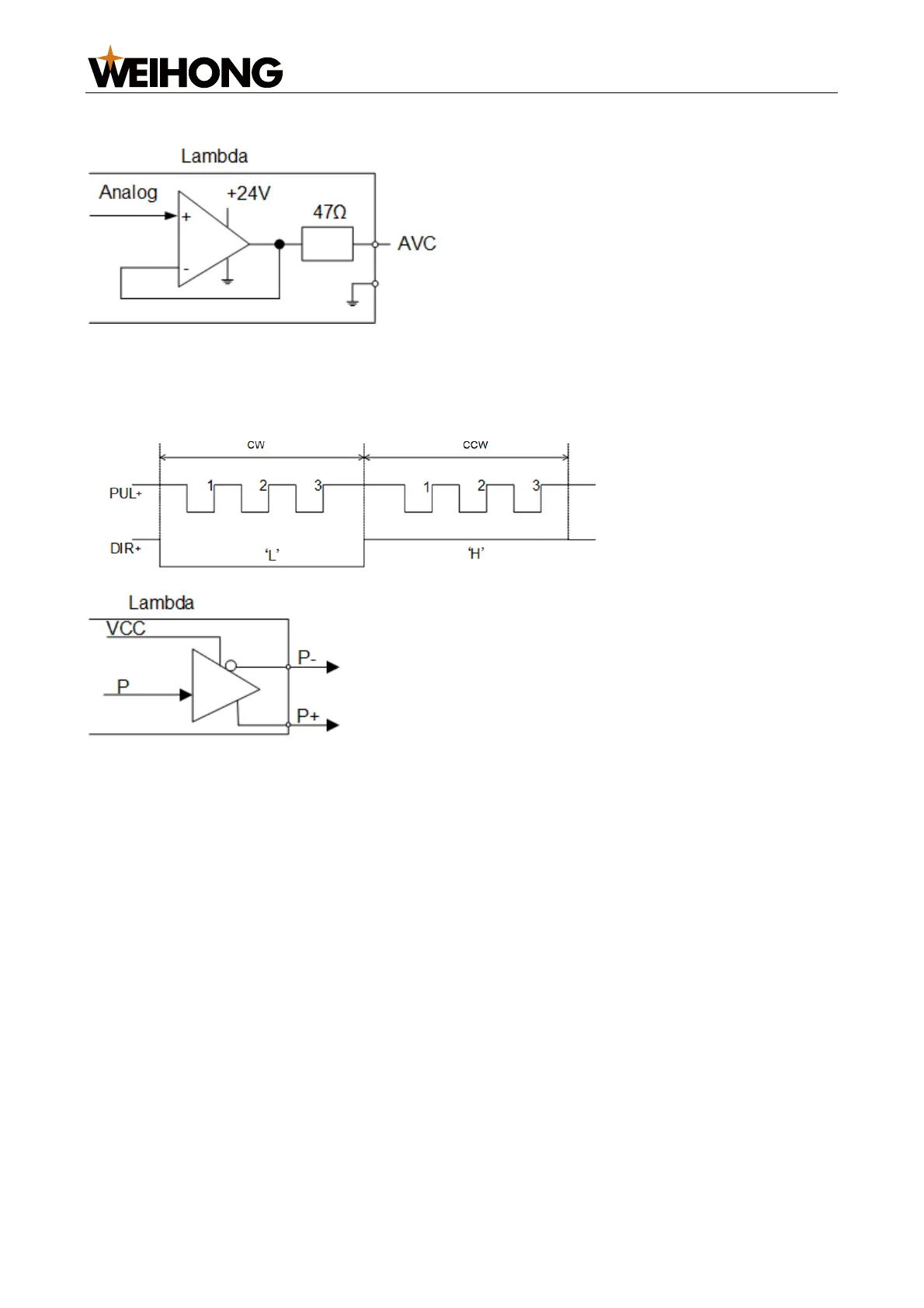

The figure is as follows:
2.3.4 Command Pulse Signal
Pulse commands that control the controller's motion consist of pulse + direction, negative
logic, as shown below. The maximum pulse frequency is 1MHz.
