上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
3 / 61

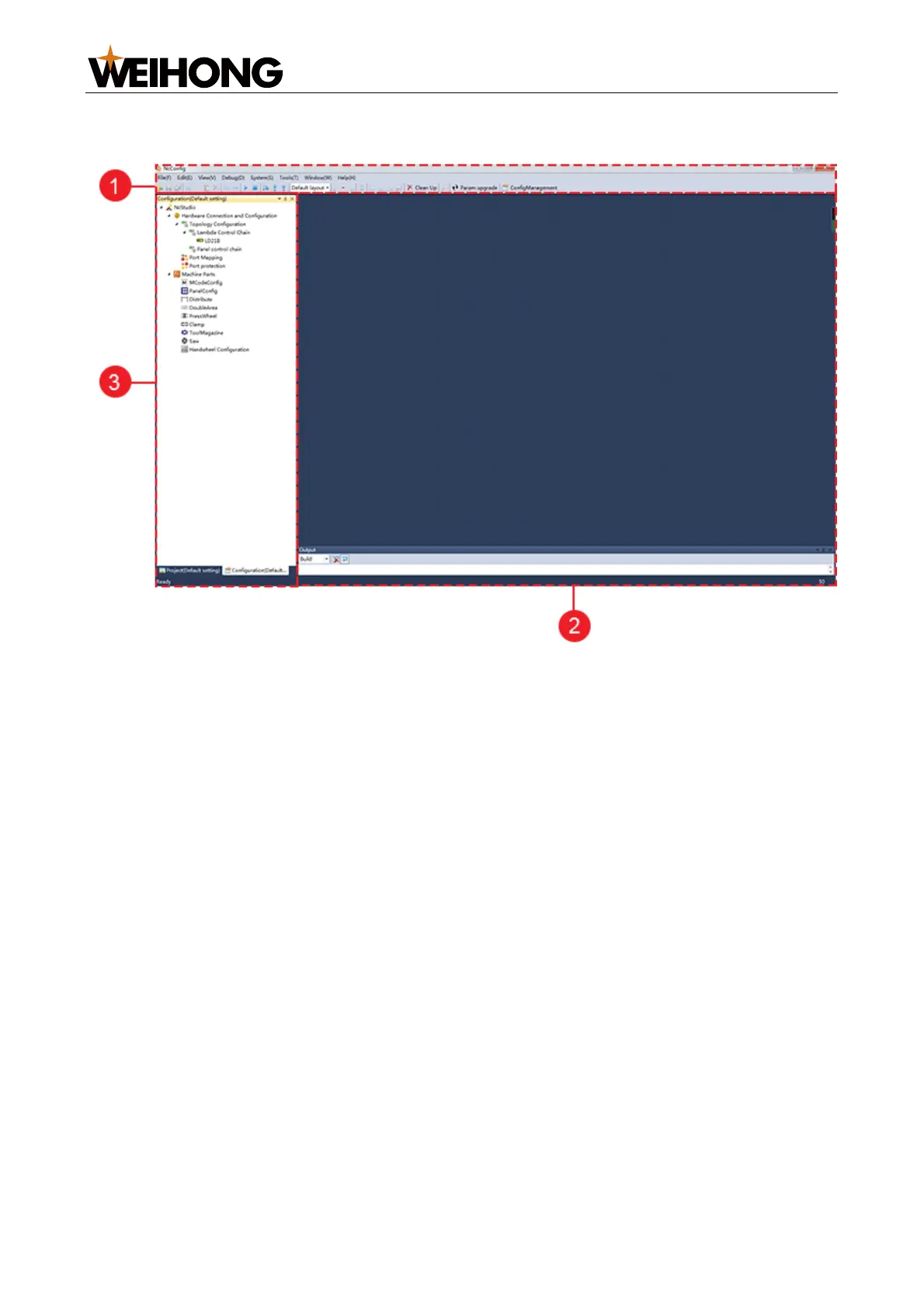

1. Menu bar
2. Function area
3. Project configuration area
1.3.1.1 Function Area
Target functions are selected in the project configuration area and debugged in the
function area.
1.3.1.2 Project Configuration Area
Click the Project or Configuration tab in the project configuration area's lower part to use
different functions (If the Project tab is not displayed in this area, go to View > Project in
the menu bar).
Functions on the Configuration page:
Topology configuration
Machine parts
Port mapping
Port protection
1.3.2 NcTune
The homepage of NcTune is shown below:
