上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
39 / 61
7 System Settings
7.1 Viewing and Setting Parameters
This section introduces how to set the system global parameters, drive parameters, and
tool compensation parameters.
7.1.1 Global Parameters

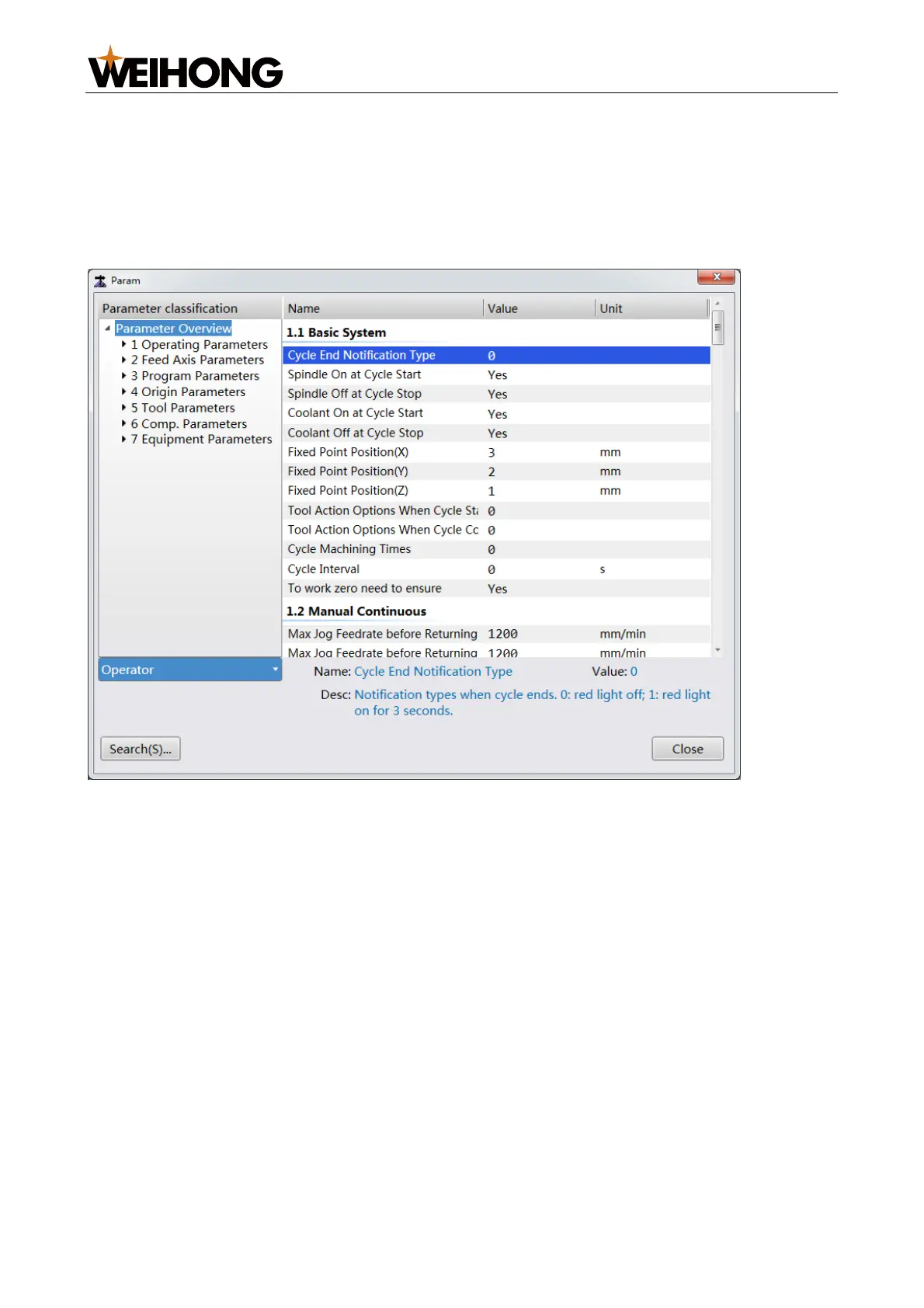

In the menu bar, go to System > Global Parameters to open the Param window:
Click the Operator pull-down menu on the left side. Select Operator or Manufacturer to
check and set corresponding parameters.
There are seven types of global parameters: operating parameters, feed axis parameters,
program parameters, origin parameters, tool parameters, compensation parameters, and
equipment parameters.
You can search for a parameter by clicking a parameter type in the left list or clicking
Search in the lower left corner, entering the parameter name in the field, and clicking Next.
7.1.2 Drive Parameters
After the system is connected to the drive, it automatically reads the drive parameter
settings. You can also modify the drive parameter settings based on the machine structure
and your demands.
Before setting drive parameters, ensure that the system is connected to the hardware
correctly.
Follow the steps below to set drive parameters:
