3 Description
3.4.2 Reusable breathing circuit

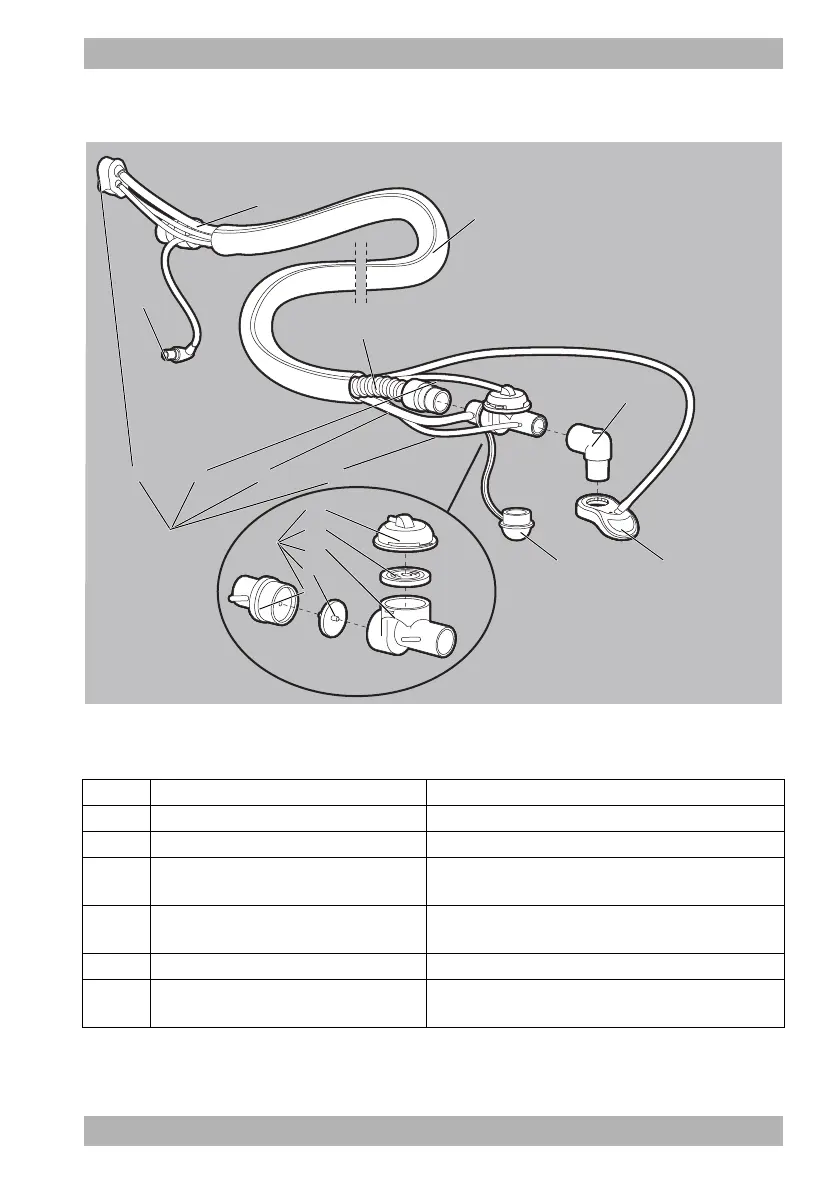

3-5 Reusable breathing circuit
1
2
10
3
17 14
5
7
16
11
4
15
6
18
13
12
9
8
No. Designation Description
1 Service label (concealed) Indicates the time of the next maintenance.
2 Protective sleeve Protects the ventilation hose from dirt and damage.
3 Ventilation hose
The respiratory gas flows through the ventilation hose
from the device to the patient valve.
4 Elbow
Connects the reusable breathing circuit to the mask or
tracheal tube.
5 MEDUtrigger Used to trigger mechanical breaths manually.
6 Protective cap
Protects the patient end of the breathing circuit from
damage and dirt.
