Description
888349067
COMPACT module SP-COP1 is a central processing unit for the entire system in which all of
the signals are monitored and logically processed according to the configuration stored in the
SP-COP-CARD1 program removable storage. The module has safe inputs and outputs as well
as test signal outputs. The system outputs are switched as a result of the processing. The in-
ternal safety bus in this case serves as a data interface.
Module versions
In addition to the basic version there is the SP-COP1-
P
compact module.
This has additional press control functions.
Display elements, interfaces, and terminal description
888350603

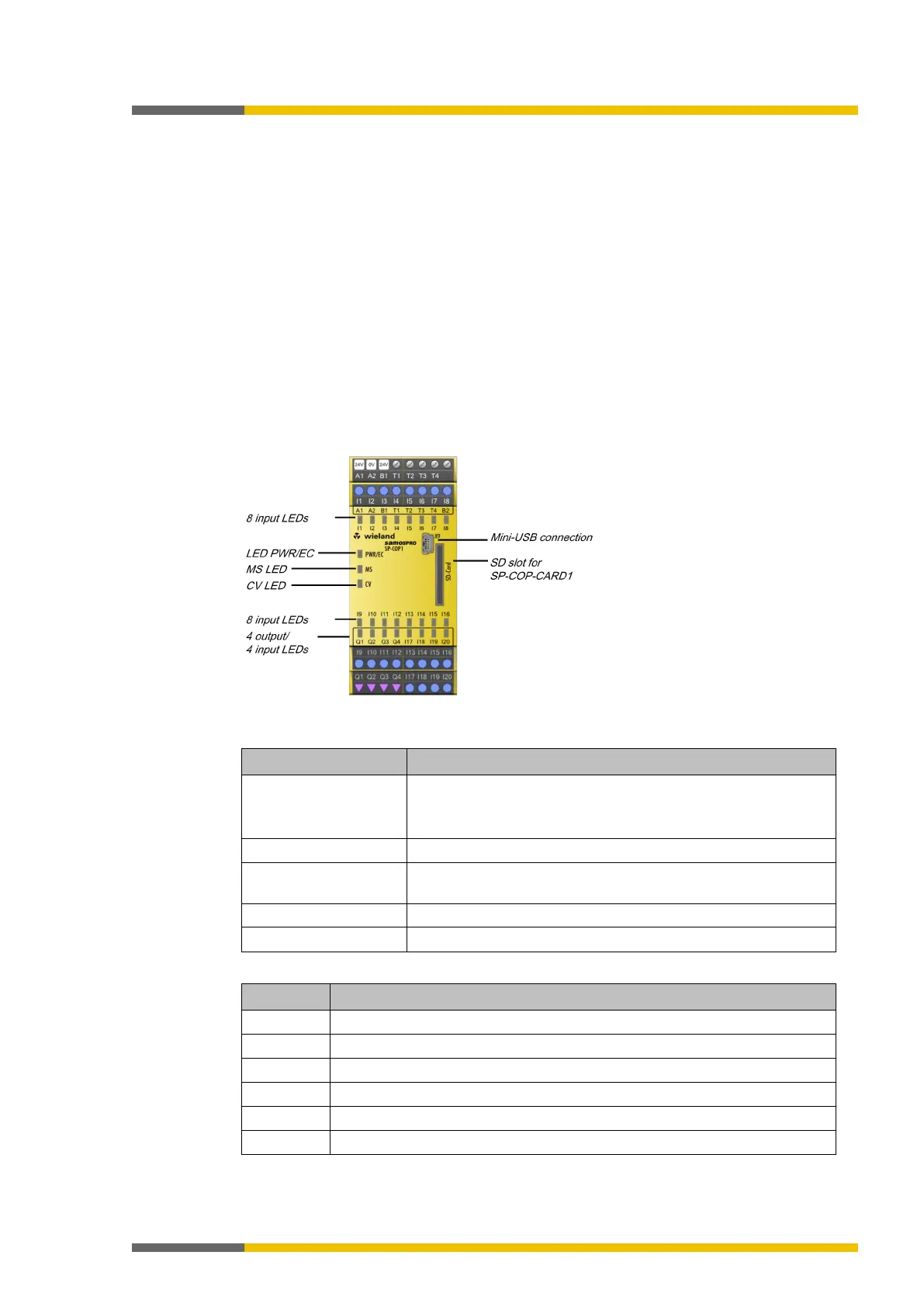

Illustration 4: SP-COP1 display elements
Table 4: 4 LED displays
LED
Meaning
PWR/EC Display of the supply voltage state
Display of an error through various
Flashing codes [ch. 10.3.1, p.
63]
MS
Display of the Module state [ch. 10.3.1, p. 63]
CV Display of the verification state of the
Control project [ch. 10.3.1,
p. 63]
Input LED I1 to I20
State display of the Inputs [ch. 10.3.1, p. 63]
Output LED Q1 to Q4
State display of the Outputs [ch. 10.3.1, p. 63]
Table 5: SP-COP1 pin assignment
Pin
assignment
A1
24 V supply voltage for all modules, except for supply of outputs
A2
GND of supply voltage
I1 - I20
Safe, digital inputs
Q1 - Q4
Safe, digital outputs
B1
24 V supply voltage of outputs Q1 - Q4
T1 - T4
Test signal outputs
3.4
3.4.1
3.4.2
