Display elements and terminal assignment
1126324875

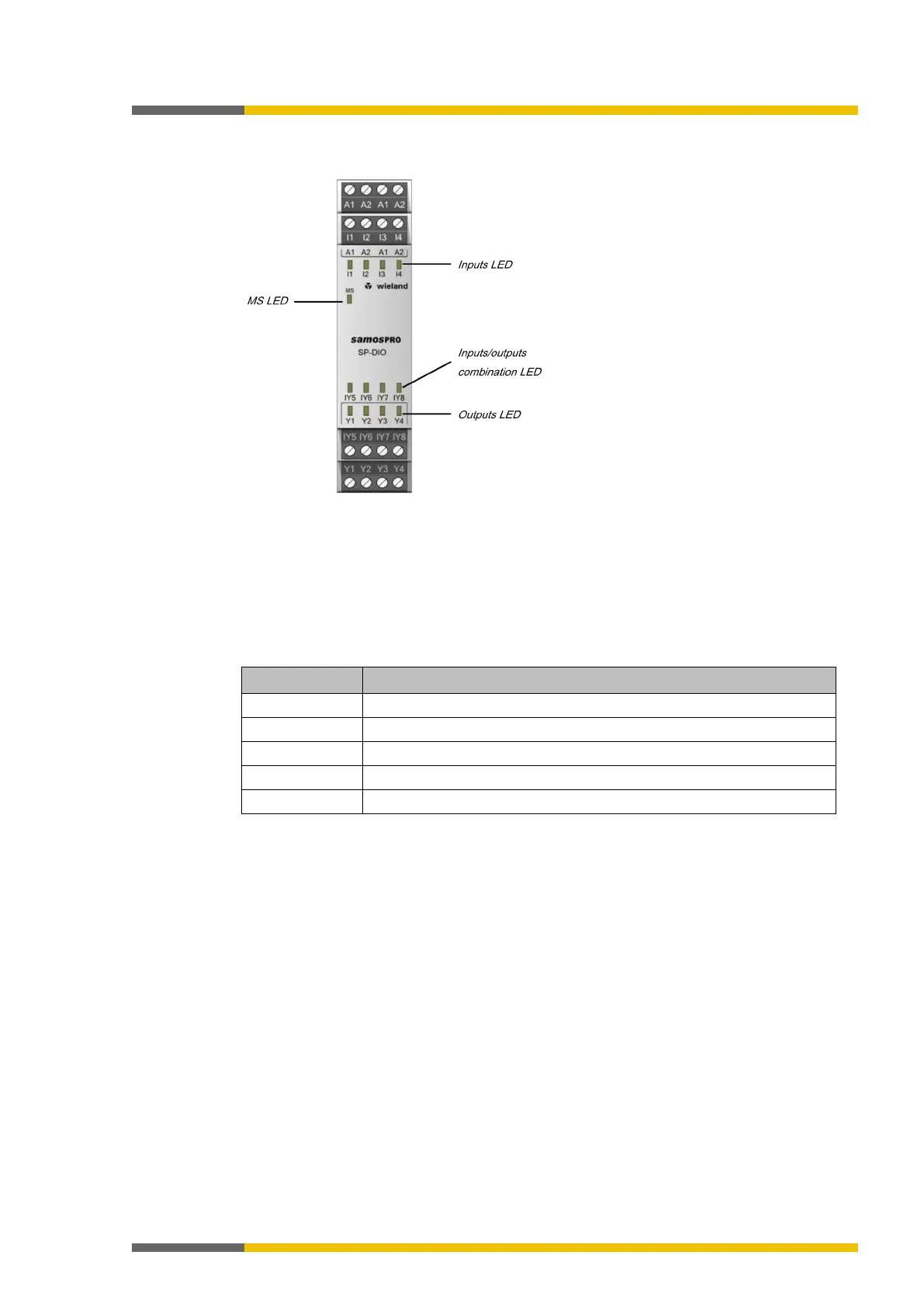

Illustration 16: SP-DIO display elements
Flashing codes
Further information:
Device state and LED displays of the expansion module (SP-DIO) [ch.
10.3.3, p. 65]
Terminal assignment
Table 13: SP-DIO terminal assignment reference
Terminal
assignment
A1
24 V
A2
GND
I1–I4
non-secure inputs 1 to 4
IY5–IY8
non-secure inputs/outputs combination 5 to 8
Y1–Y4
non-secure outputs 1 to 4
