Removing modules from normal rail
888517003
Procedure 1: Removal of main module SP-COPxxx

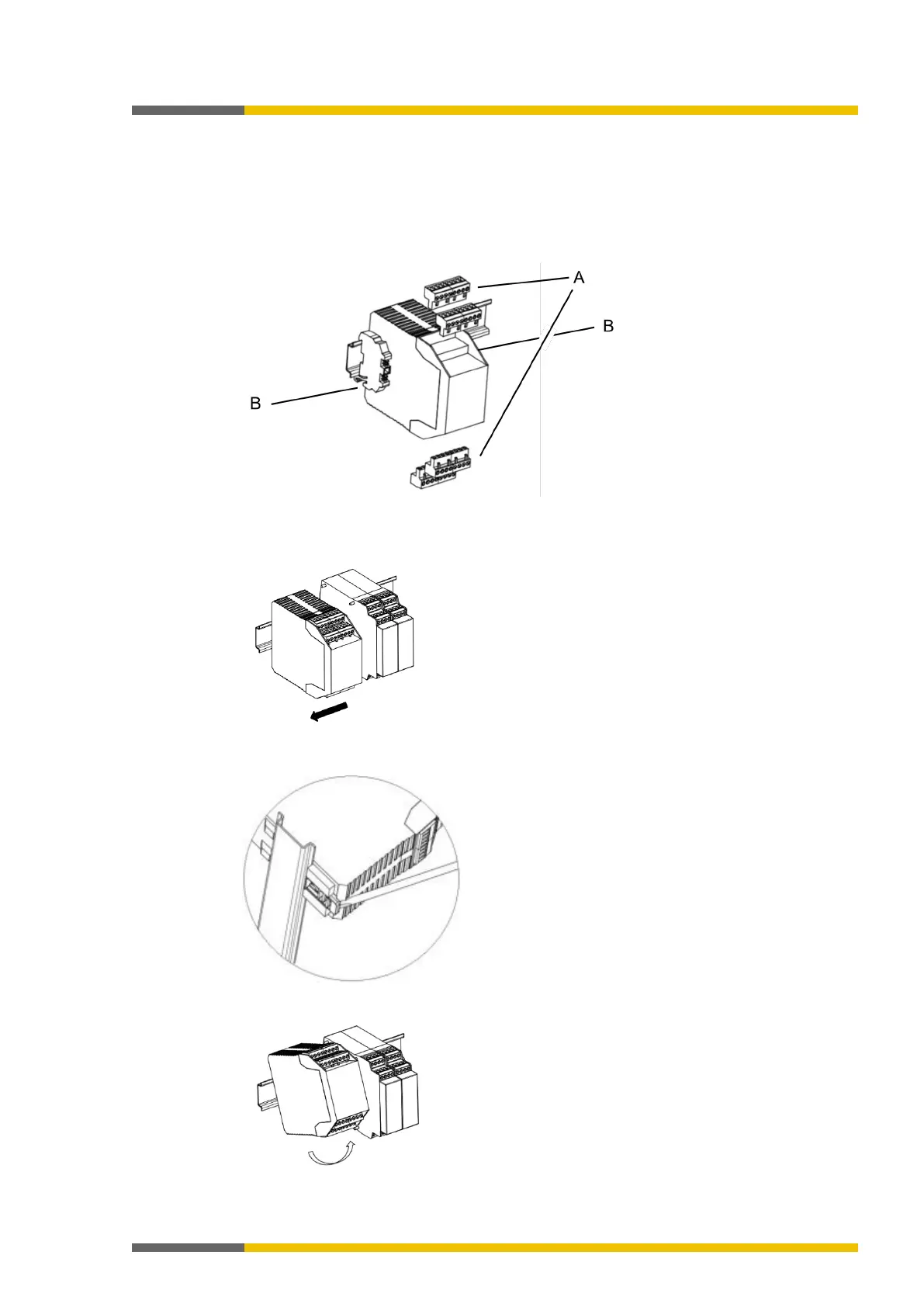

Remove plug-in terminals with wiring [A] and remove the end terminals [B].
With multiple modules:
Pull the modules apart from one another individually in the direction of the arrow until the
lateral plug connection is disconnected.
Release the modules.
To do this, pull the snap-on foot of the modules outward using a screwdriver.
Fold the module somewhat away from the standard rail and remove it from the rail.
