Installing/removing
Wieland Electric GmbH | BA000966 | 07/2016 (Rev. C)
Procedure 2: Removing gateways or expansion modules

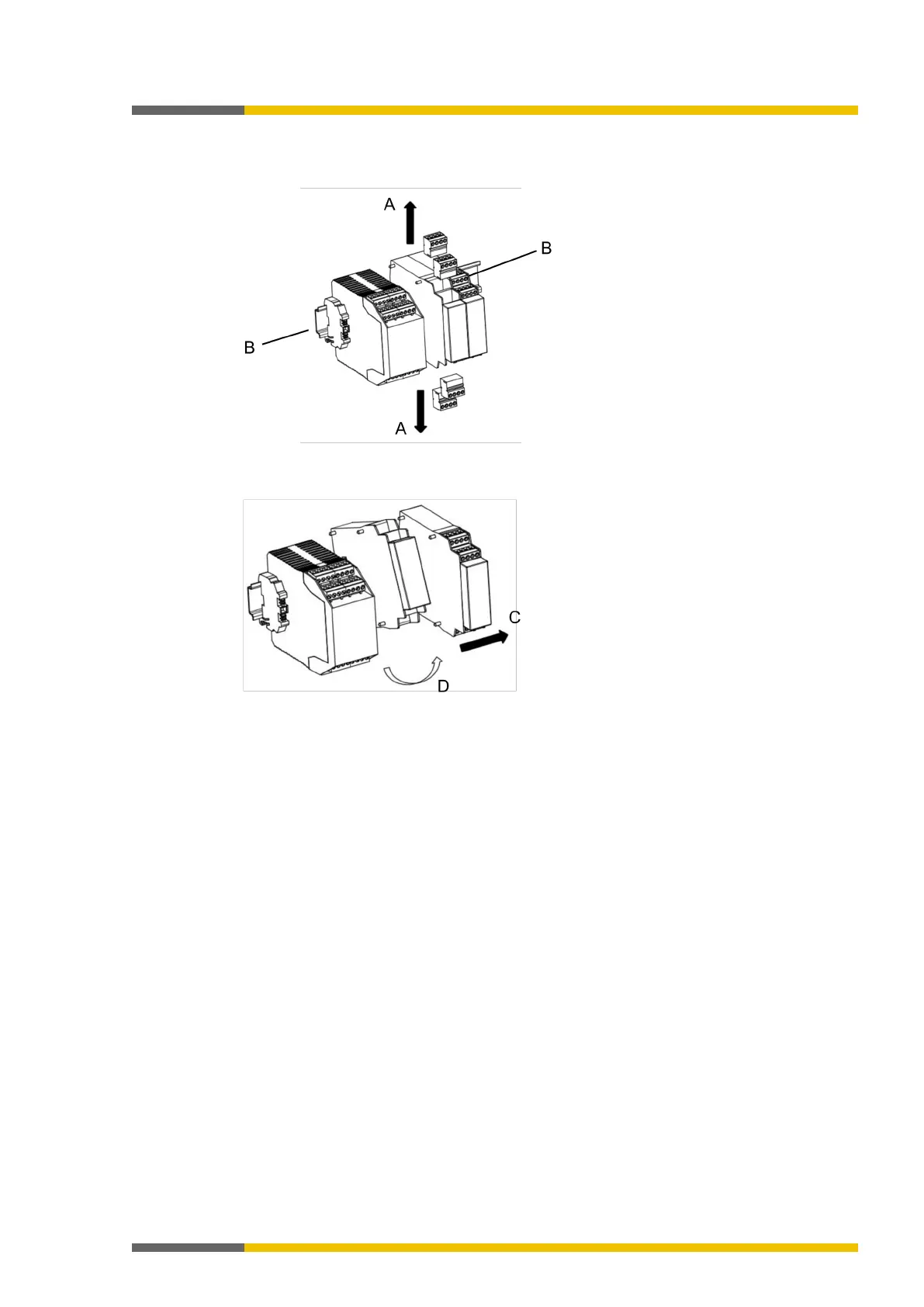

Remove plug-in terminals with wiring [A] and remove the end terminals [B].
With multiple modules:
Pull the modules apart from one another individually in the direction of the arrow [C] until
the lateral plug connection is disconnected.
Press on the module from above and fold the module away from the standard rail while it
is in the pressed-down state [D].
