Wieland SP-SDIO - Display Elements and Terminal Assignment

Product description
Wieland Electric GmbH | BA000966 | 07/2016 (Rev. C)
28
Display elements and terminal assignment
888379019

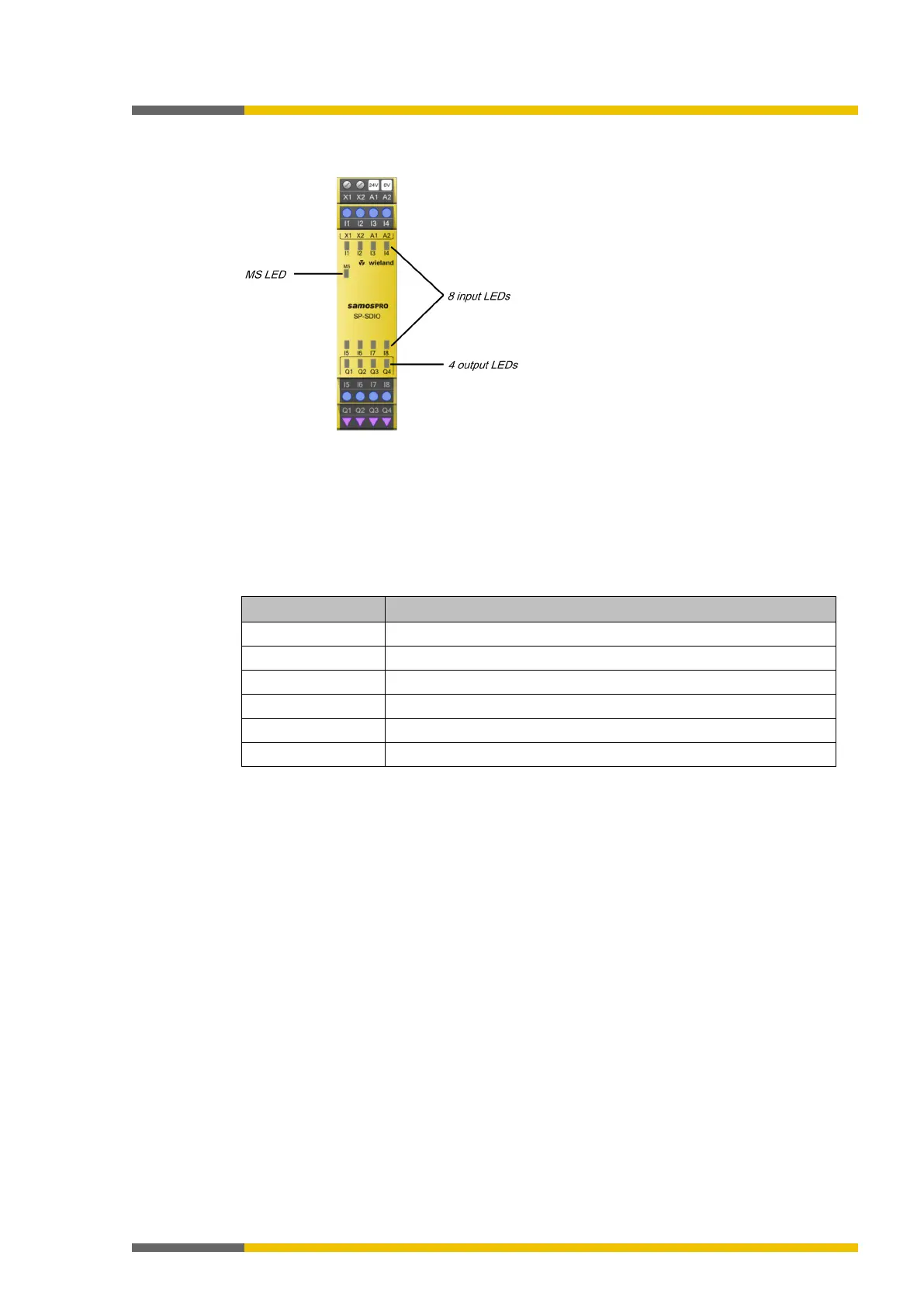

Illustration 10: SP-SDIO display elements
Flashing codes
Further information:
Device state and LED displays in the expansion modules (SP-SDIO, SP-
SDI) [ch. 10.3.2, p. 65]
Terminal assignment
Table 11: SP-SDIO terminal assignment reference
Terminal
assignment
X1/X2
Test output 1 / test output 2
I1–I4
Inputs 1 to 4
A1
24 V
A2
GND
I5–I8
Inputs 5 to 8
Q1–Q4
Outputs 1 to 4
3.8.2
