Wieland SP-SDIO - Internal Circuits

Product description
Wieland Electric GmbH | BA000966 | 07/2016 (Rev. C)
29
Internal circuits
888388363

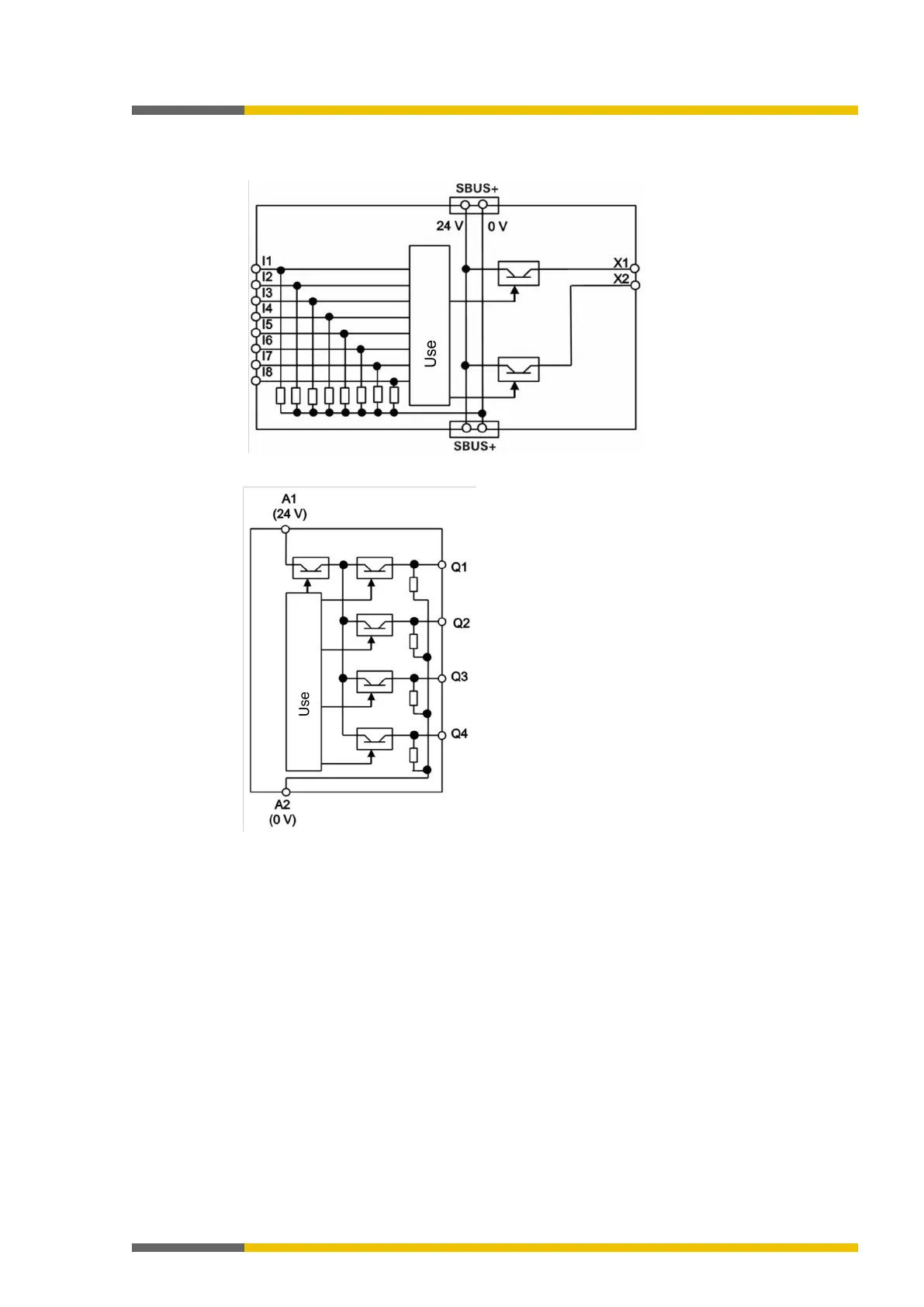

Illustration 11: Internal SP-SDIO circuits: Safe inputs and test outputs
Illustration 12: Internal SP-SDIO circuits: Safety outputs
3.8.3
