Dimensional drawings
888567435
SP-COP1-xxx / SP-COP2-xxx controller modules
888568971

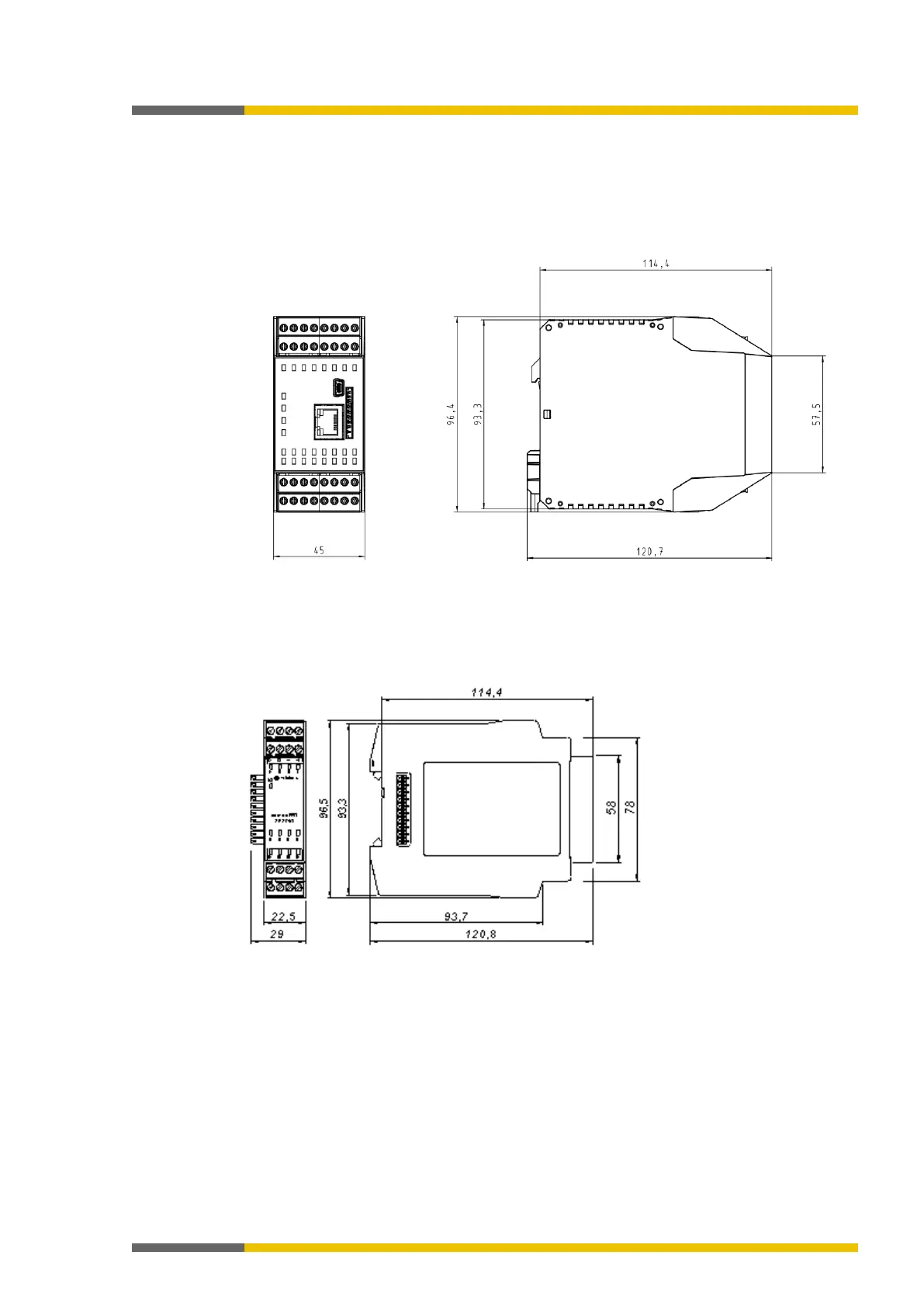

Illustration 25: SP-COP1 / SP-COP2 dimensions (mm)
SP-SDIO and SP-DIO input/output expansion / SP-SDI input expansion
888571659
Illustration 26: SP-SDIO / SP-SDI, SP-DIO, SA-OR-S1 / SA-OR-S2 dimensions (mm)
