– Input override at a function block for muting
– Input reset at a function block for valve monitoring
– Resetting of inputs to zero and setting at a start value on an event counter function
block
• When using an odd-numbered test output, odd-numbered inputs must be used, while
even-numbered inputs must be used when using an even-numbered test output.
•
You have to use the test outputs of the module at which the device to be tested has been
connected.
Report function in samosPLAN5+
After project planning, you will receive the following documentation in samosPLAN5+ under
"Info -> Report":
• Logic report
• List of parts
• Wiring information

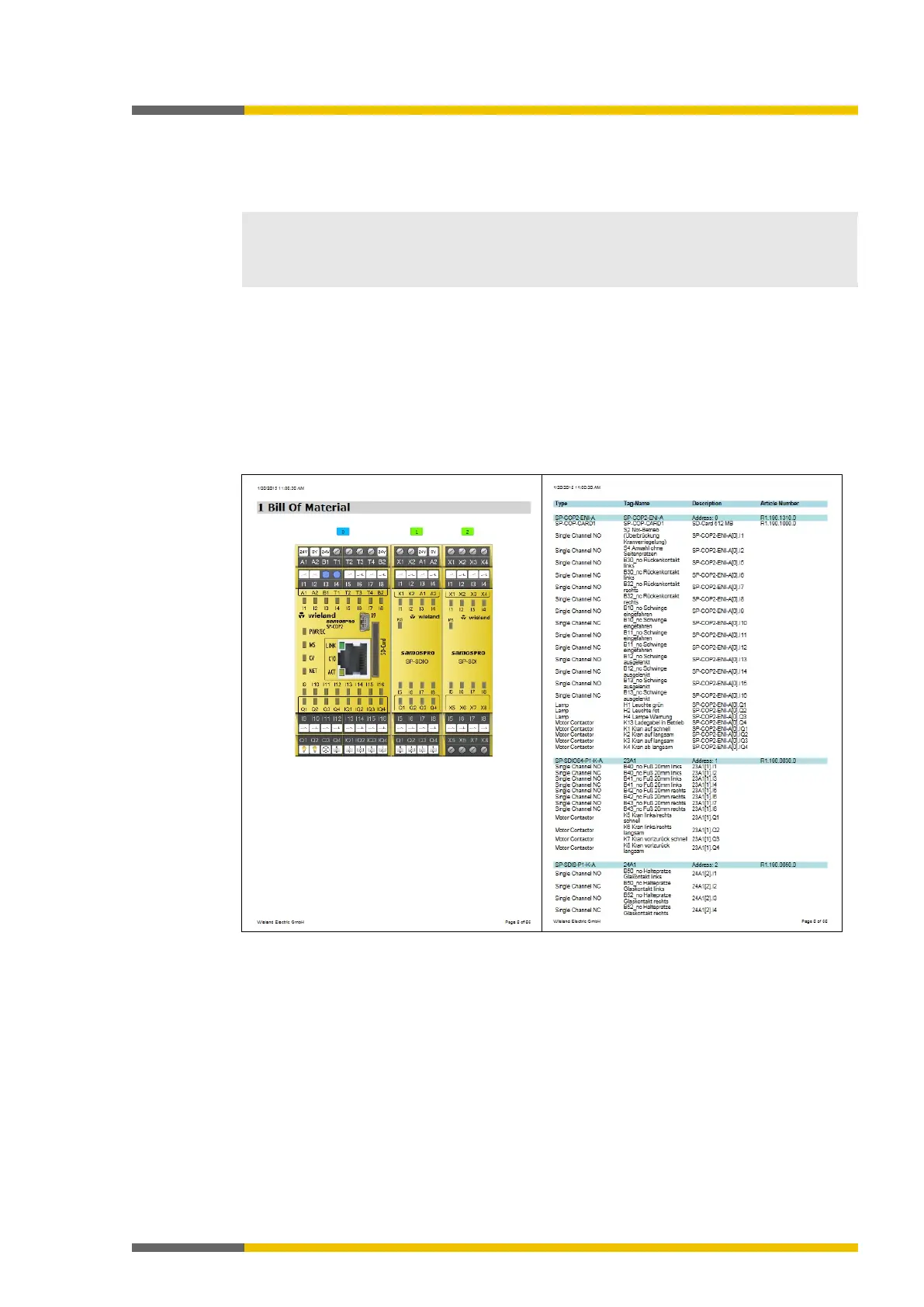

Table 14: Excerpt from exemplary documentation in samosPLAN5+
