03/2016 – UM-MT-EN-01 127
9.6 Device Fuses
The fuses must comply with the published technical specifications (see Section Error!
eference source not found. Page Error! Bookmark not defined.). Bridging the fus-
es is prohibited, due to the risk of electric shock and fire.
When replacing a fuse, turn off the power using the main power switch and unplug the
power cord from the outlet. Using a screwdriver, unscrew the fuse holder from the pow-
er junction box. Change the fuse and screw the fuse holder into the terminal box.
Note: The figure below is of a WOODWAY PPS Medical Treadmill. The process for re-
moving and replacing the fuse is identical to that of all WOODWAY medical treadmills.

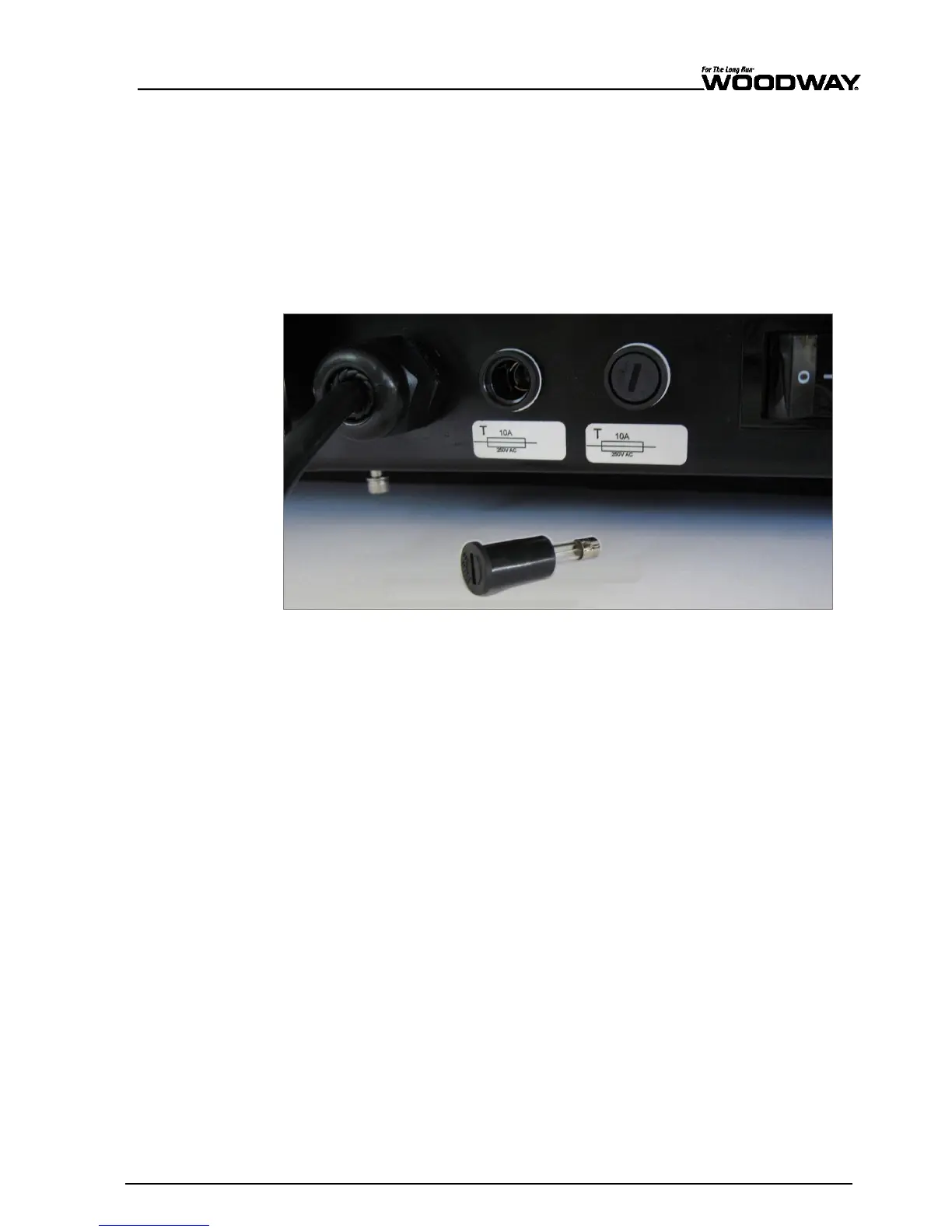

Fig. 118 Device fuses
