Commissioning
22
Connecting the
probe
5 Place the probe (8) into the probe holder (9).
6 Place the cable (11) of the probe (8) into the cable
holder (1) on the stand rod.

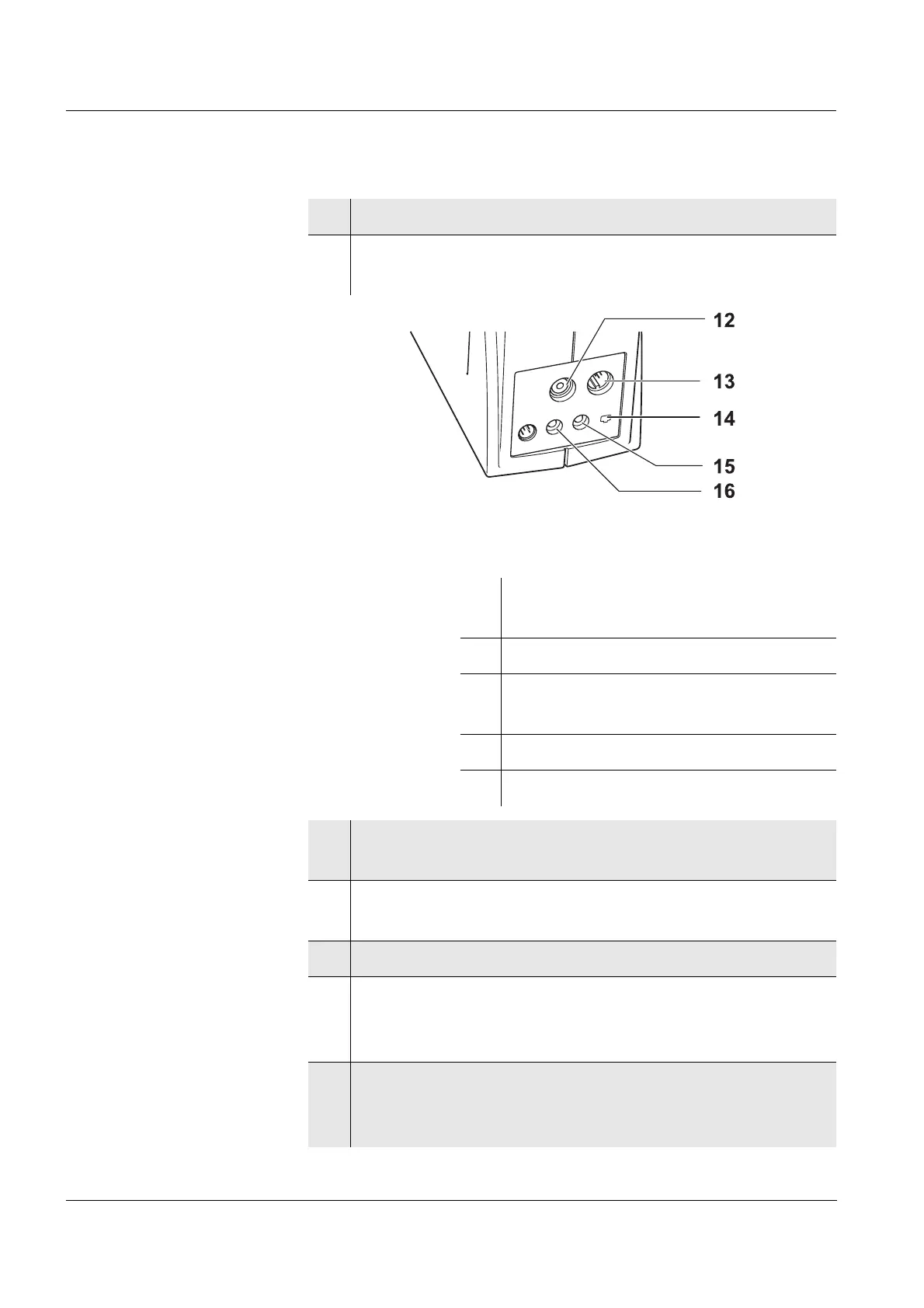

Connections depending on the
measuring module:
12 pH/ORP electrode or ion-selective
electrode
13 D. O. probe or conductivity cell
14 Oxygen probe with integrated stirrer
(StirrOx G)
15 Reference electrode
16 Temperature probe
7 Plug the probe (8) on the measuring module into the
respective socket (12 or 13).
8 If necessary, insert the plug for the temperature
probe of the electrode into the socket (16).
9 Prepare the beaker with the test solution (7).
10 Adjust the height of the probe holder (9) by pressing
the locking key (10) so that the probe is immersed in
the test solution.
11 For pH, ORP or ISE electrodes with a separate
reference electrode:
Plug the reference electrode into the socket (15).
