Commissioning
23
Connecting the
terminal

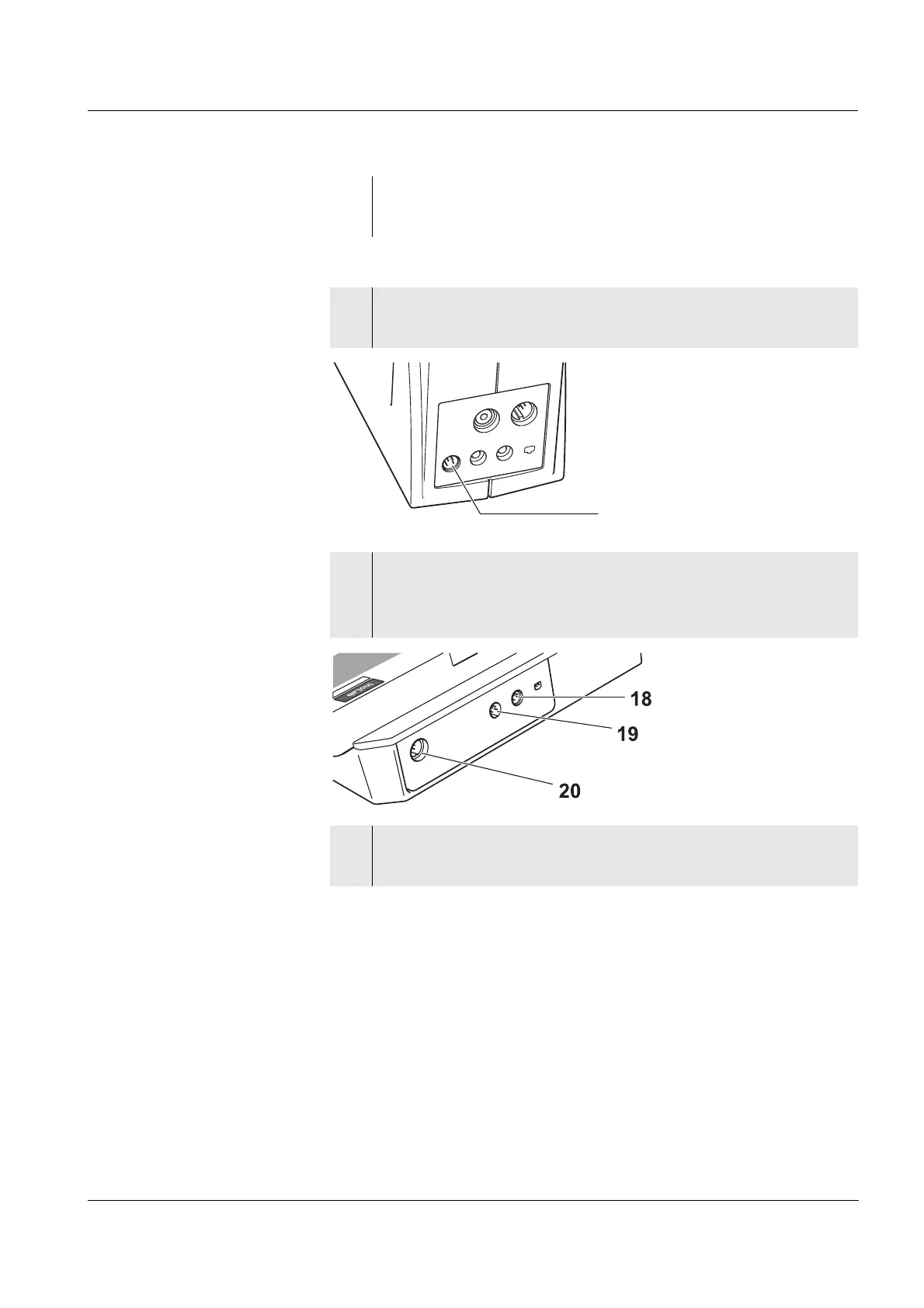

12 Place the probe cable (11) into the cable shaft (3) so
that it is stored safely.
13 Plug the connecting cable to the terminal (AK M-T)
into the socket (17).
14 Place the terminal on a flat surface near the
measuring module and protect it from intense light
and heat.
15 Plug the connecting cable from the measuring
module to the terminal (AK M-T) into the socket (18).
