3.3.2 Connecting the power pack / charging the batteries

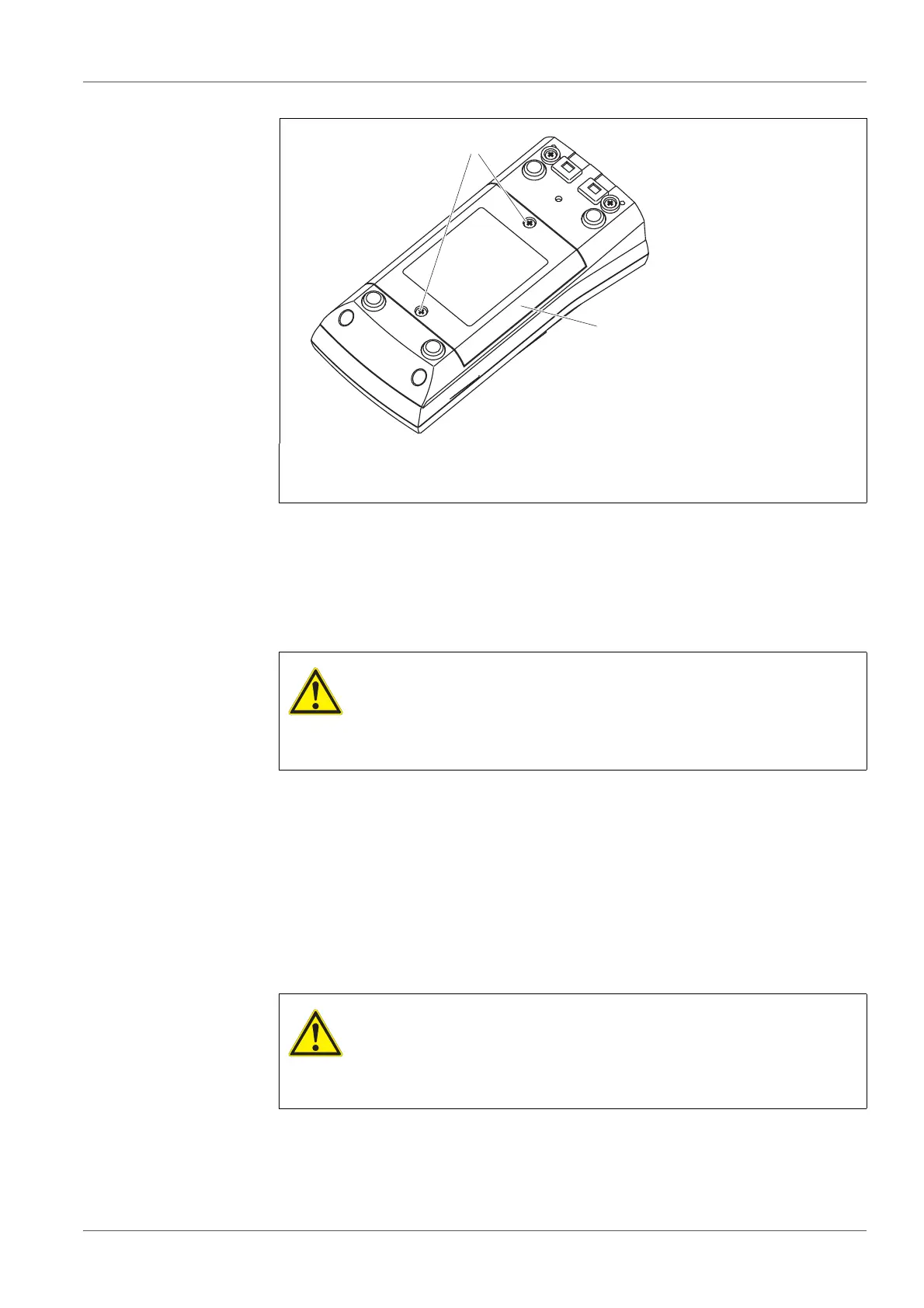

1Screws
2 Battery compartment
1 Unscrew the two screws (1) on the underside of the meter.
2 Open the battery compartment (2) on the underside of the
meter.
CAUTION
Make sure that the poles of the rechargeable batteries are po-
sitioned correctly.
The
± signs on the batteries must correspond to the ± signs in
the battery compartment.
3 Place four rechargeable batteries (type Mignon AA) in the battery
compartment.
4 Close the battery compartment (2) and tighten the screws (1).
CAUTION
Use original power packs only (see section 16.1).
The line voltage at the operating site must lie within the input
voltage range of the original power pack (see section 16.1).
