Assembling
Ensure chemicals residues within the Spray System are drained.
Ensure cleaning of the aircraft are conducted before the disassembly of the RevoSpray.
📋
PREREQUISITE

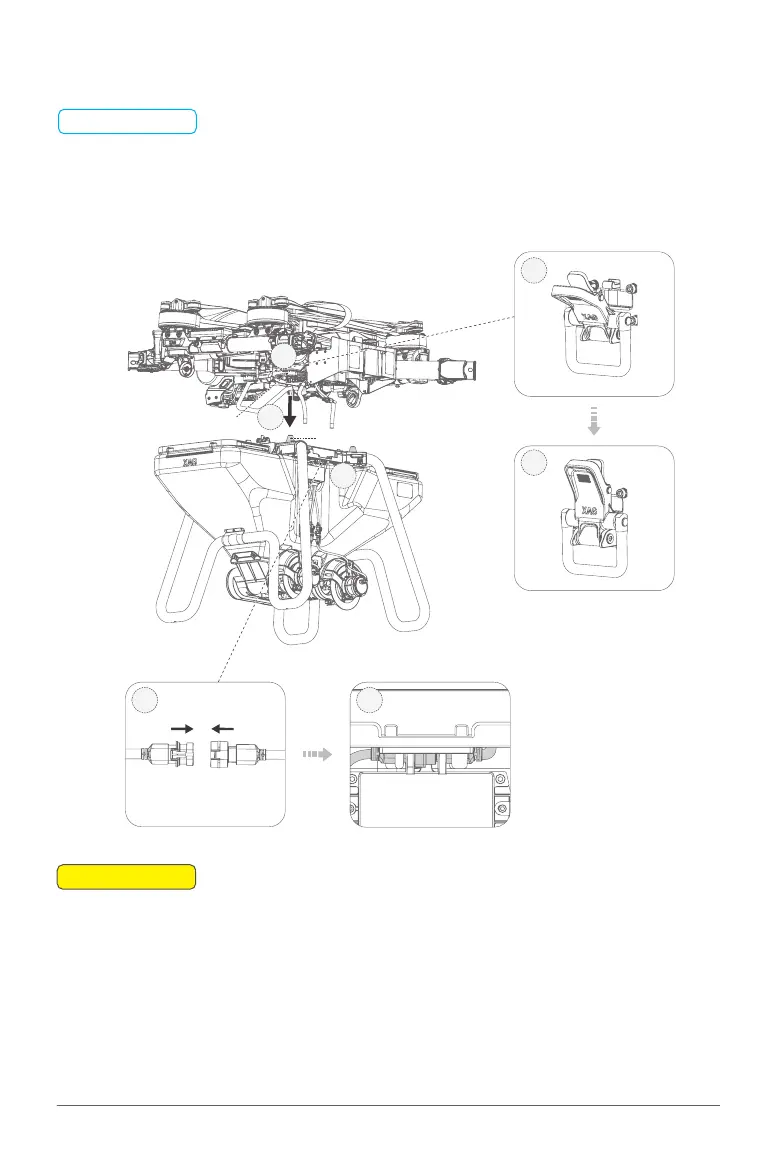

01. Start by aligning the airframe's alignment hole with the Boss alignment on the RevoCast System.
Once aligned, gently place the airframe onto the RevoSpray.
02. Proceed to lock and secure the two Airframe Hasps to the RevoCast System. Make sure the
Airframe and the RevoCast System are firmly secured to prevent any misalignment during
operation.
03. Finally, connect the payload system cables from the Airframe to the RevoCast System's cable.
After the connection, affix and securely fasten the cable to the cable holder.
📖
INSTRUCTION
Boss alignment
Alignment hole
02
03
03 03
02
02
01
To Next Page
