RJ-901C/RJ-900C Maintenance Manual 5 Self-Diagnosis Mode
5-29
5. After mechanical adjustment, make the machine print out head nozzle check patterns again.
5.5.5 Head Slant Check Menu 2
This menu prints out a sample printing to check for head slant in the vertical direction.
To perform head slant check, follow the steps below.
1. Set media as necessary.
2. After media is set, the machine prints out head slant check patterns in the following modes.
• 1 pass Uni-D
• PF: 360 dpi, CR: 360 dpi
Finish printing

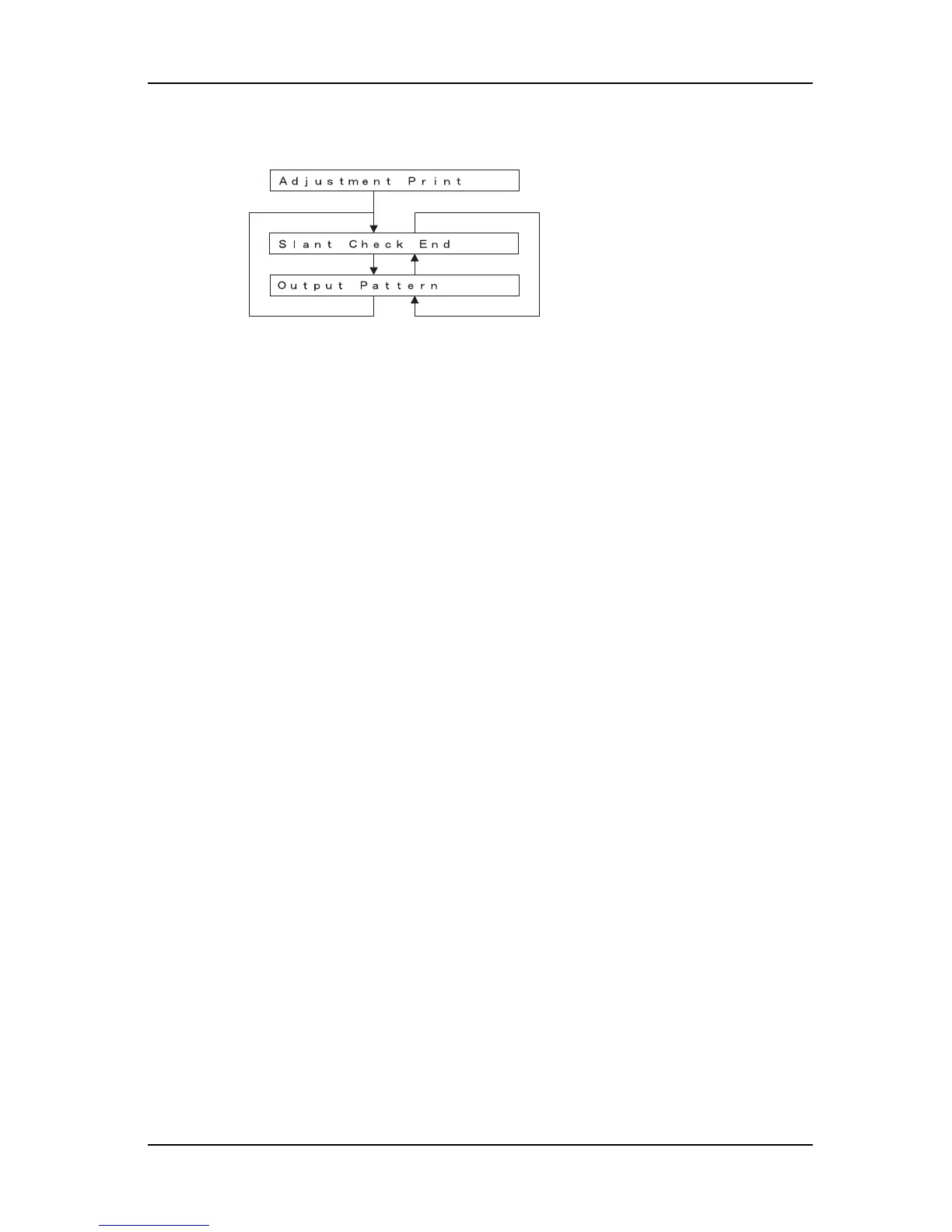

Display during adjustment printing
Output pattern
Previous menu
Previous menu
Next menu
Next menu
Finish printing
