RJ-901C/RJ-900C Maintenance Manual 4 Parts Replacement
4-11

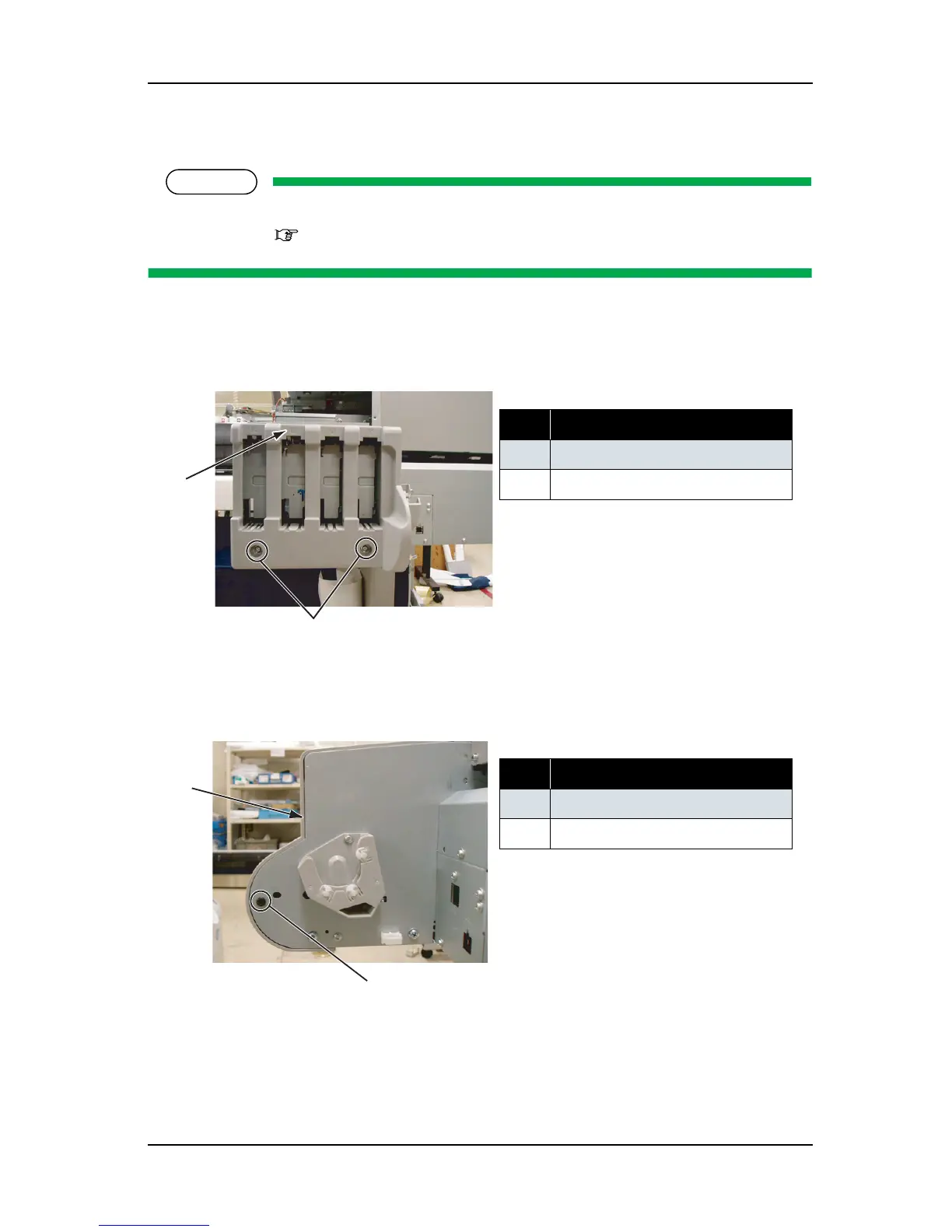

4.2.4 Removing Ink Holder (I/H) Cover
NOTE
Before removing the ink holder (I/H) cover, remove the following parts.
•L side cover: "4.2.3 Removing L Side Cover" p.4-9
1. Remove the ink cartridge.
2. Remove the I/H cover rear screw (tapping screw M4
× 8, S tight cup: 2pcs).
3. Remove the I/H cover side (scroller receiver side) screw (tapping screw M4
× 12, P tight binding black:
1pce).
4. Remove the I/H cover.
5. To reassemble the unit, reverse the removal procedure.
No. Part name
1 I/H cover
2 I/H cover screw
No. Part name
1 I/H cover
2 I/H cover side screw
1
2
1
2
