7 Adjustment RJ-901C/RJ-900C　 Maintenance Manual
7-32
7.10 PG Height Adjustment
This section describes the procedure to check the carriage height (distance from the platen).
7.10.1 Jigs and Tools
The following jigs and tools are required for carriage height (distance from the platen) check.
• PG height checking step gauge
TIP
"10.4 Jigs and Tools" p.10-7
7.10.2 Adjustment Procedure
Follow the steps below to adjust the platen height.

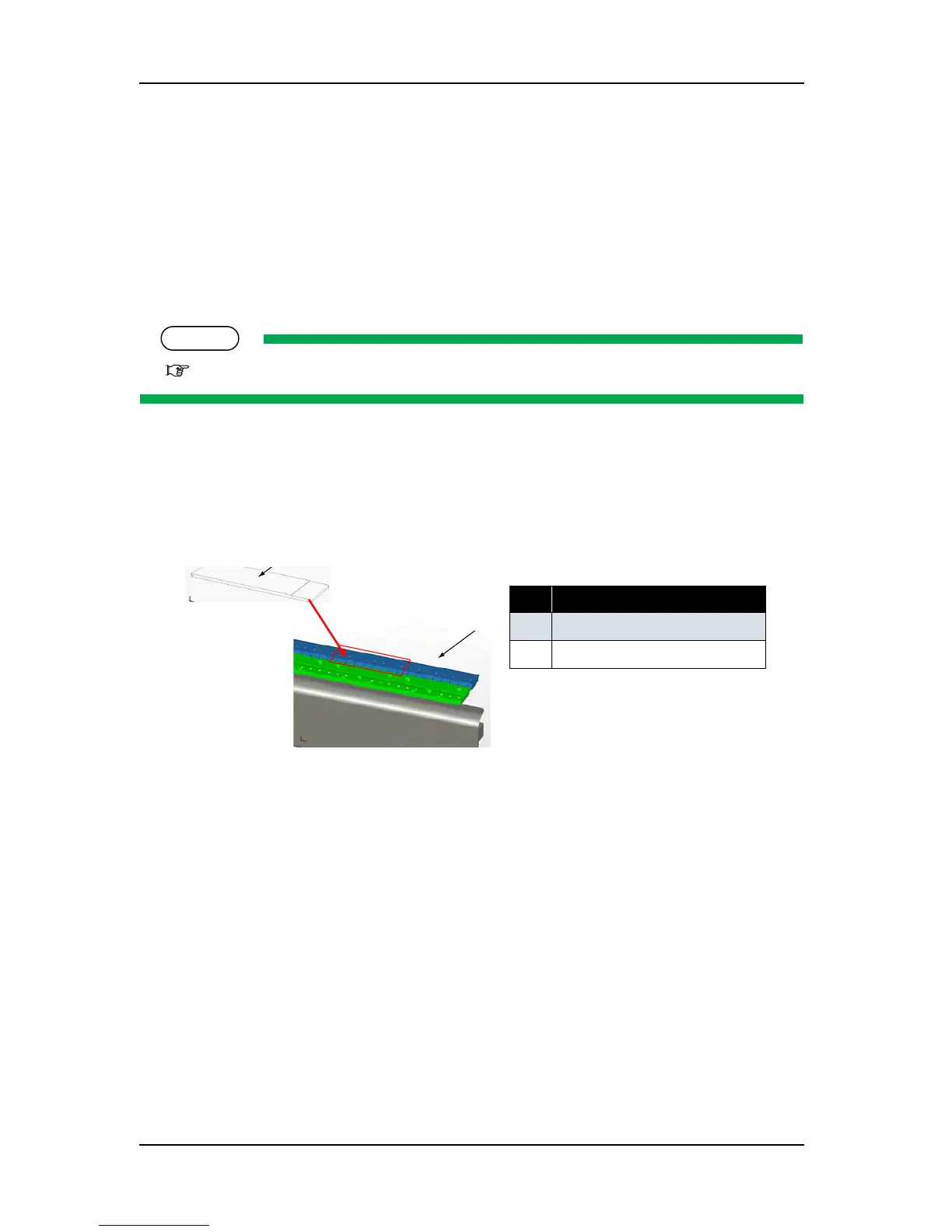

1. When moving the carriage, place the PG height checking jig on the second platen from the origin.
2. Move the carriage from the origin side while the lever is in "LOW".
No. Part name
1
Step Gauge JD-42177
2
Platen

