RJ-901C/RJ-900C Maintenance Manual 7 Adjustment
7-31

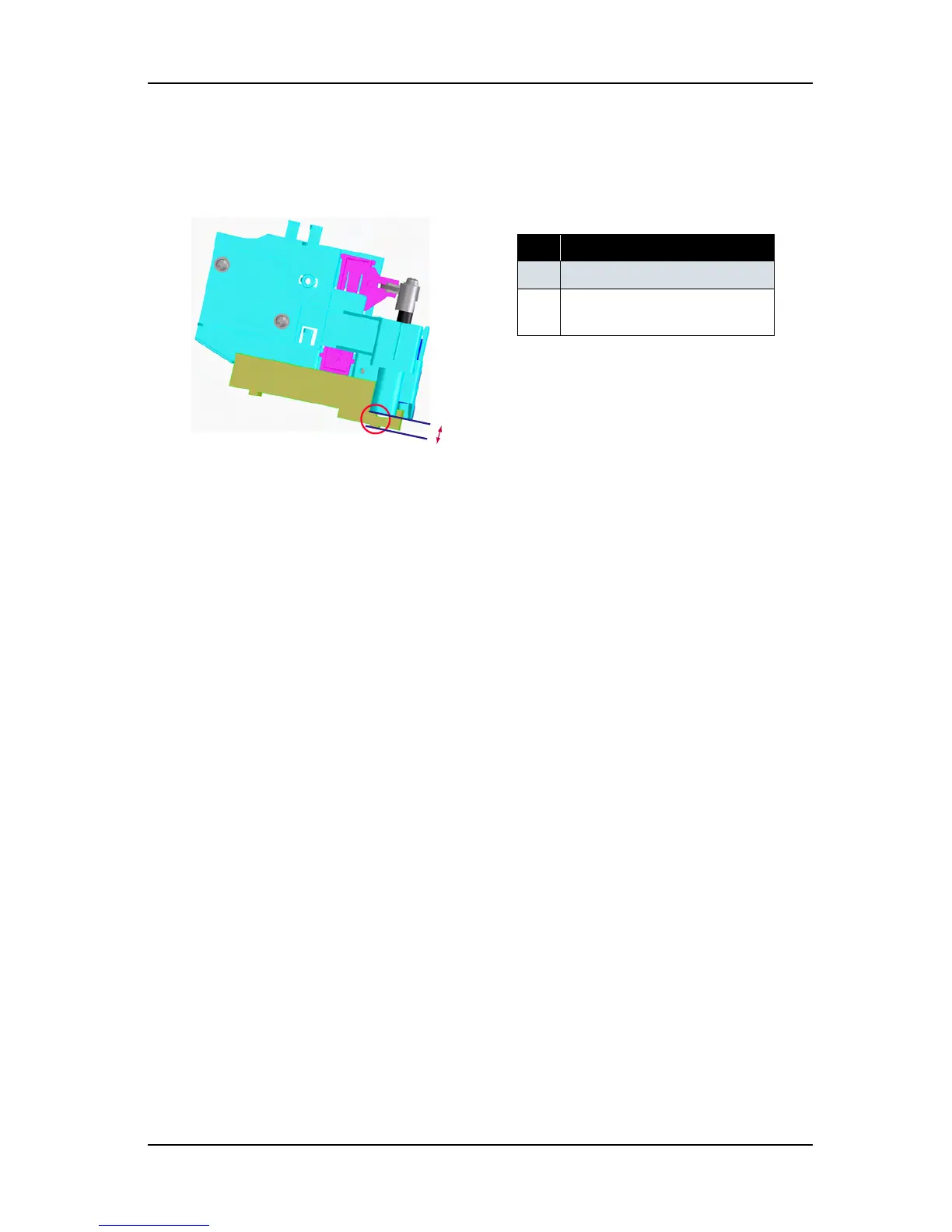

4. Position the cutter holder so it is 5.2mm above the platen.
While making sure that the part indicated by a circle in the figure is sustained, fasten the tentatively-tightened
screw fully and determine the cutter holder height.
No. Part name
1
Cutter holder
2
OOrOO
