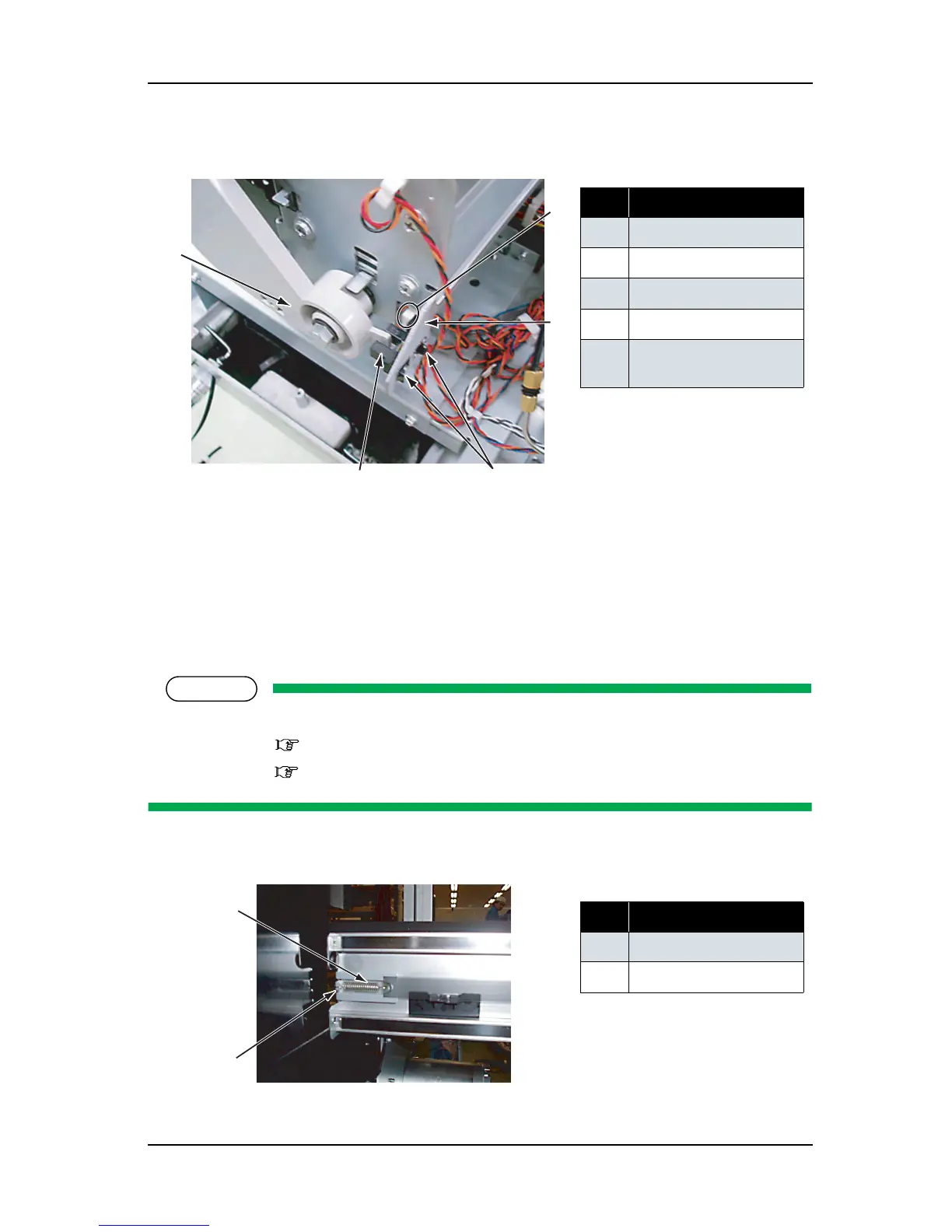

RJ-901C/RJ-900C 　 Maintenance Manual 4 Parts Replacement
4-33
2. Detach the lever sensor cable assembly connector from the lever sensor.
3. Release the hook retaining the lever sensor, then replace the lever sensor.
4. To reassemble the unit, reverse the removal procedure.
4.5.4 Replacing T Fence
NOTE
Before replacing the T fence, remove the following covers.
• R side cover: "4.2.1 Removing R Side Cover" p.4-6
•L side cover: "4.2.3 Removing L Side Cover" p.4-9
1. Remove the T fence spring from T fence spring hook on the L frame side.
No. Part name
1 Pressure lever
2
Lever sensor
3
Hook
4
Sensor mounting plate
5
Lever sensor cable
assembly connector
No. Part name
1 T fence spring
2
T fence spring hook
1
2
3
4
5
4
1
2
To Next Page
