4 Parts Replacement RJ-901C/RJ-900C　 Maintenance Manual
4-34

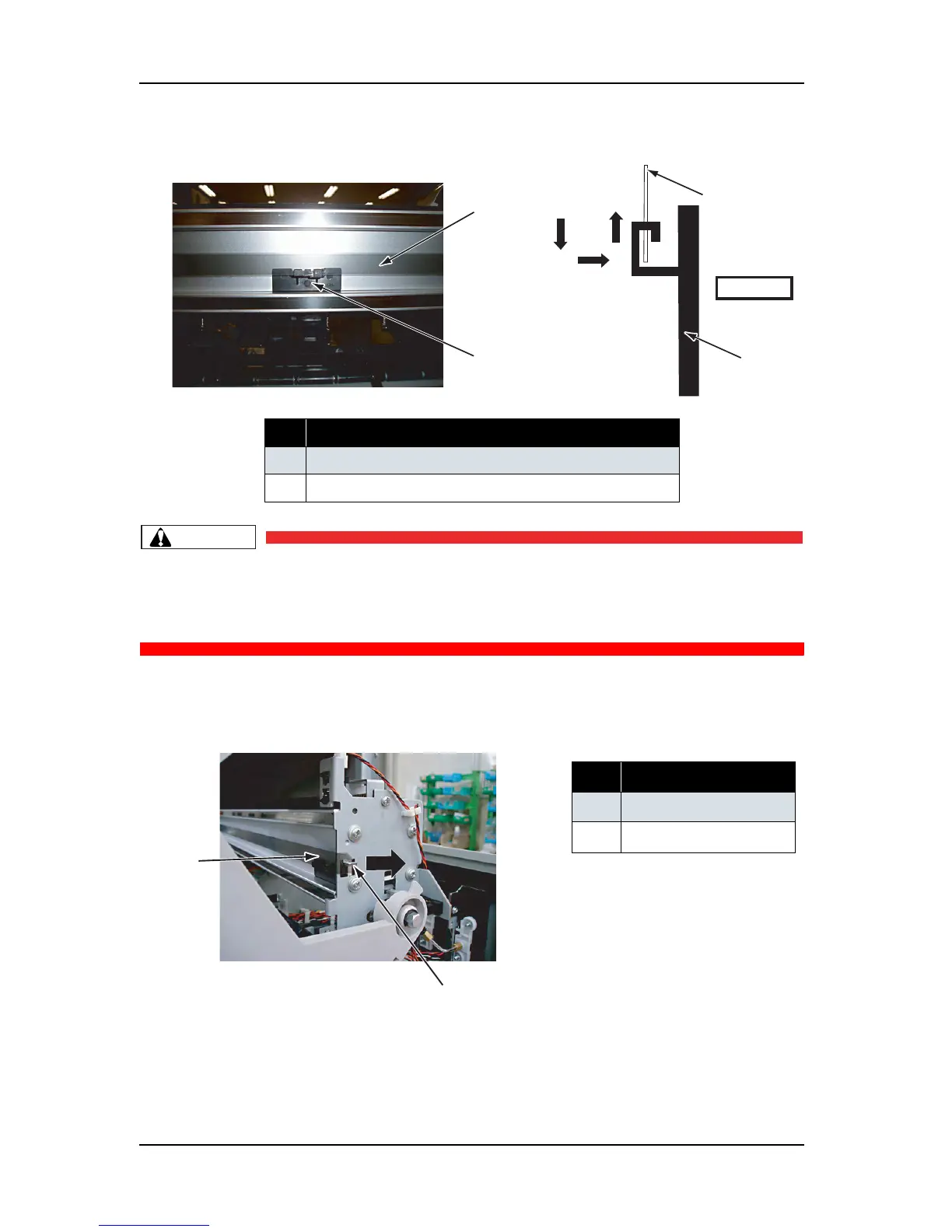

2. From the three fence guides, remove the T fences by following instructions in the diagram below.
CAUTION
When removing the T fence, note the following.
• Do not pull the T fence by force; the fence guide can be easily broken.
• Pay attention not to damage or break the T fence.
3. Remove the T fence from the CR rail frame R hook on the R frame side, then pull it out toward the
direction of the arrow in the diagram.
4. Replace the T fence.
5. Fold a new T fence to the outside (90 degrees) at the point 9 mm from the edge, then install it to the CR
rail frame hook.
No. Part name
1
T fence
2
Fence guide
No. Part name
1 T fence
2
T fence hook
1
2
side view
Fence guide
Ô˜
Ô™
Ôš
T fence
Slide the T fence in the order
of arrows shown above to install.
1
2
To Next Page
