RJ-901C/RJ-900C 　 Maintenance Manual 4 Parts Replacement
4-31
6. Remove the screws retaining the CR motor assembly to the CR motor mounting material (cup screw M4
×
8: 4pcs).
7. Replace the CR motor assembly.
8. To reassemble the unit, reverse the removal procedure.
9. Perform adjustments by following the instructions in "7.2 Adjustment Item" p.7-3.
4.5.2 Replacing CR_HP Sensor
NOTE
Before replacing parts in the CR_HP sensor assembly, remove the R side cover.
• R side cover: "4.2.1 Removing R Side Cover" p.4-6
1. Release the CR locker by pushing it with your finger, then move the carriage from the capping position
to the left.

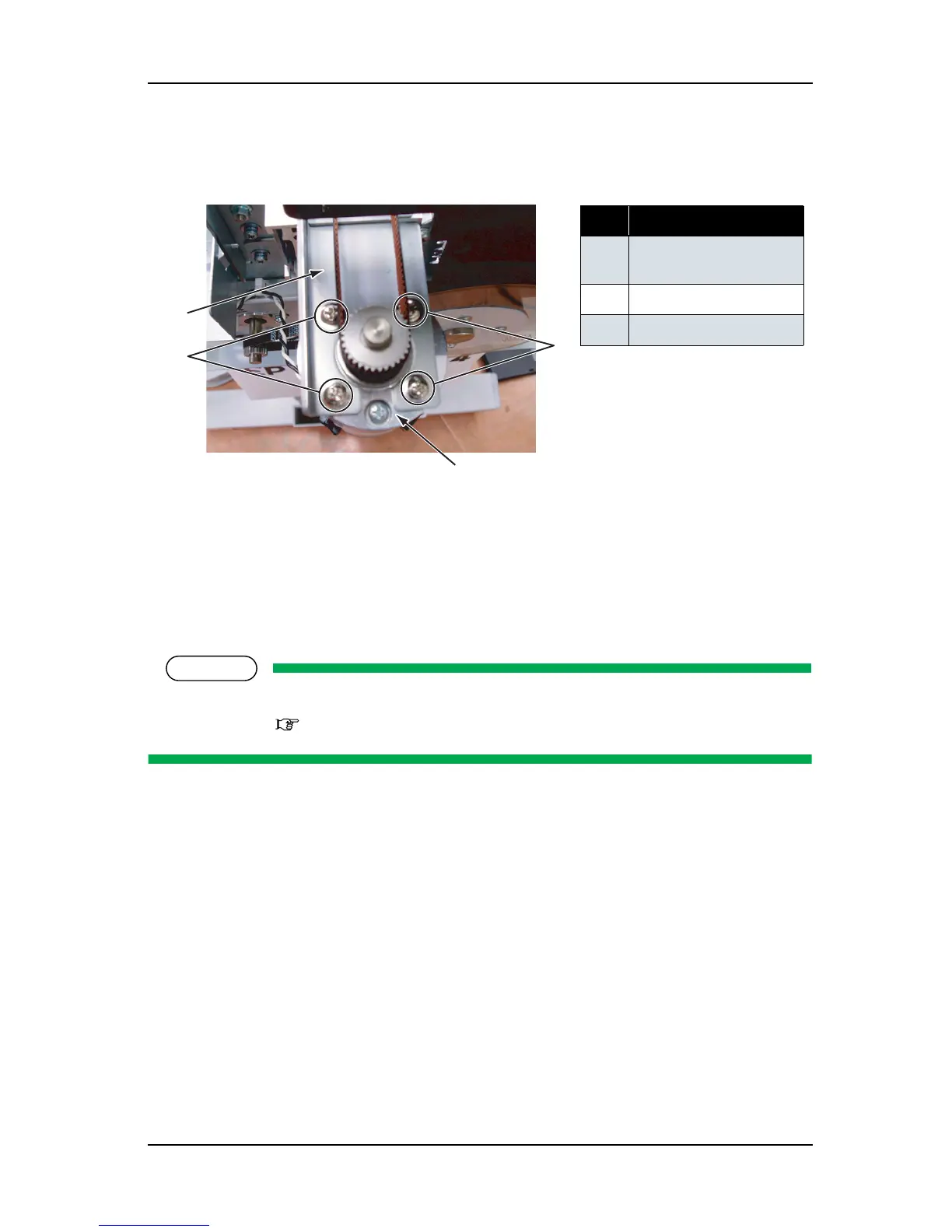

No. Part name
1 CR motor mounting
material
2
CR motor screw
3
CR motor
2
1
2
3
