Xerox 7142 Service Manual

5 Self-Diagnosis Mode RJ-901C/RJ-900C Maintenance Manual
5-42
5.5.10 Top and Bottom Adjustment Menu
This menu is used to adjust the printing margins.
To adjust the margins, follow the steps below.
1. Set media as necessary.
2. After media is set, the machine prints out band feed correction adjustment patterns and cuts the media in
the following modes.
• Black, 1 pass, unidirectional, 360 dpi
3. Check the printed top & bottom adjustment patterns for the following points.
• Top distance
• Bottom distance
•Side margin

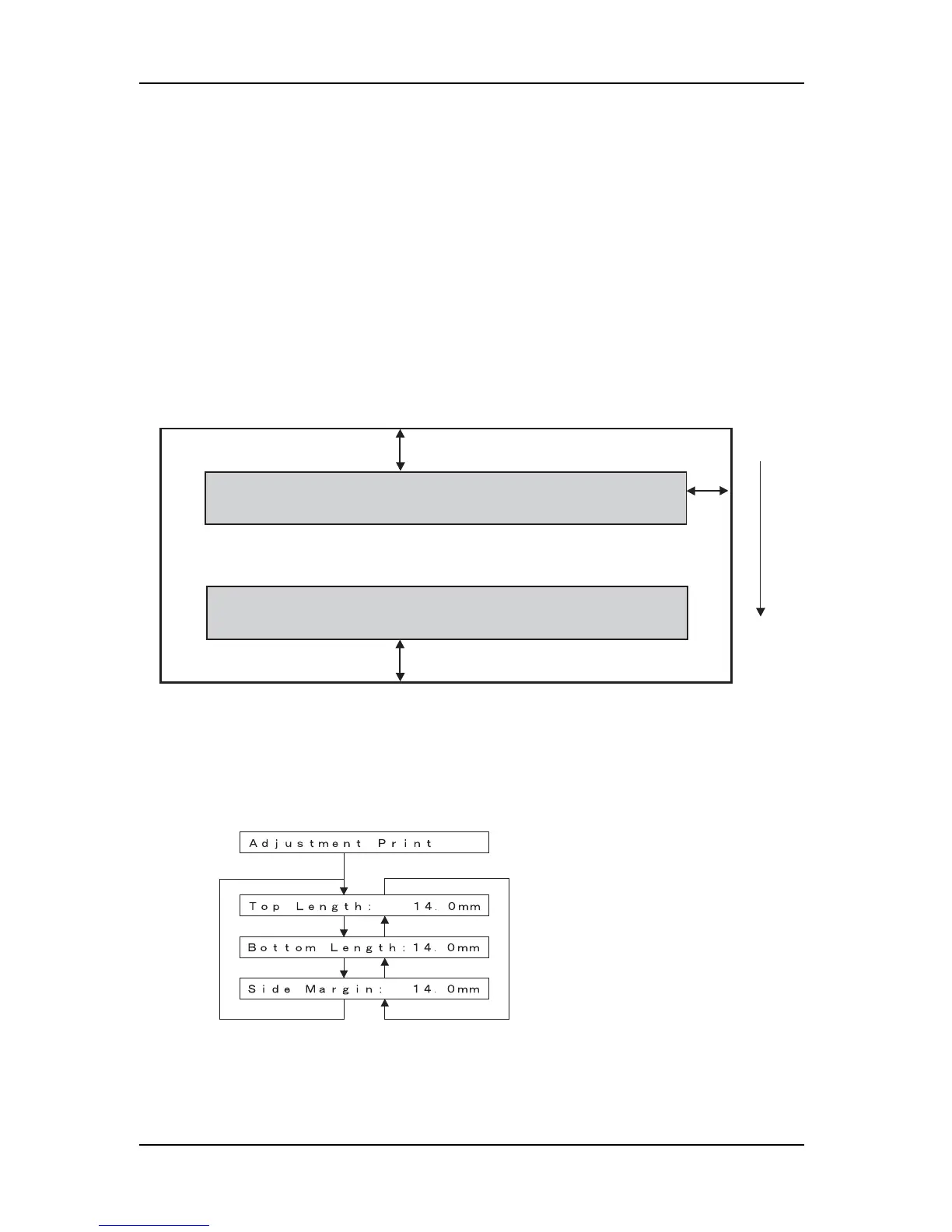

1: Top distance
2: Bottom distance
3: Side margin
4: Media feed direction
4. Enter each measured value as the parameter.
2
1
3
4
TOP
Previous menu
Next menu
Previous menu
Next menu
Previous menu
Next menu
Top Length: 0.1㨙㨙 increments
Bottom Length: 0.1㨙㨙 increments
Side Margin: 0.1㨙㨙 increments
