RJ-901C/RJ-900C 　 Maintenance Manual 4 Parts Replacement
4-35

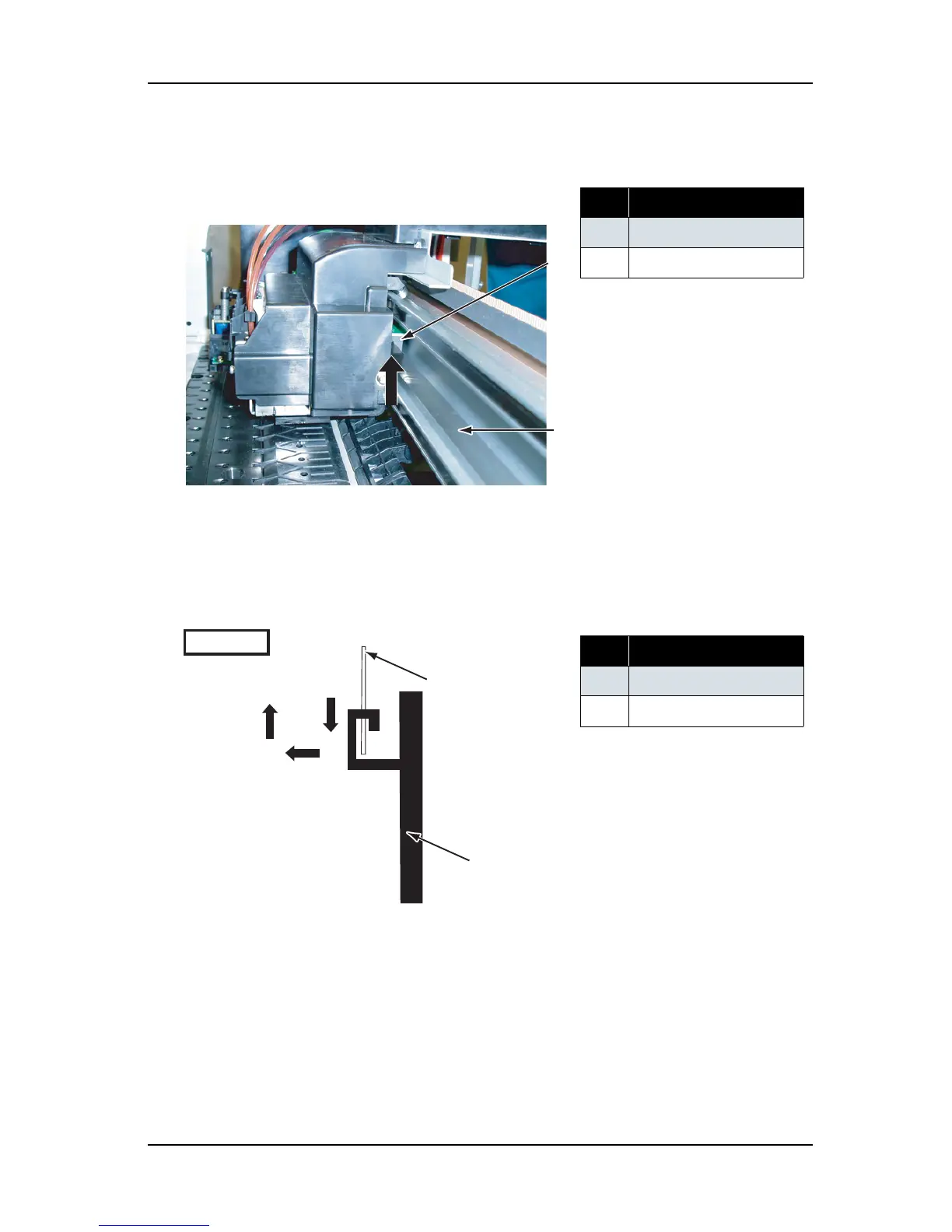

6. Insert the T fence into the CR encoder assembly.
7. Install the T fence to the fence guide.
8. Install the T fence spring to the T fence spring hook on the L frame side.
9. Perform adjustments by following the instructions in "7.2 Adjustment Item" p.7-3.
No. Part name
1 T fence
2
CR encoder assembly
No. Part name
1 T fence
2
Fence guide
1
2

Ô˜
Ô™
Ôš

side view
Slide the T fence in the order
of arrows shown above to install.
To Next Page
