7 Adjustment RJ-901C/RJ-900C　 Maintenance Manual
7-30

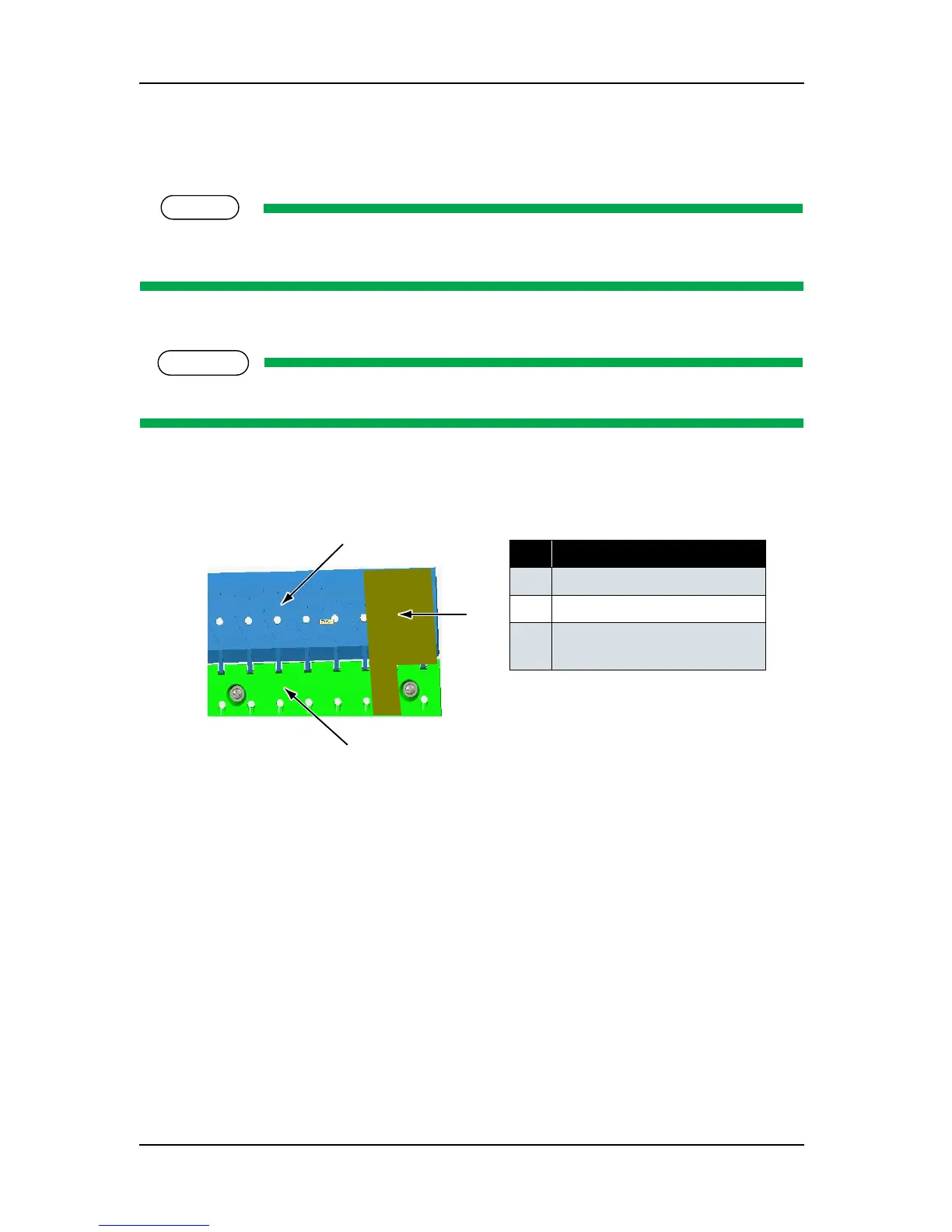

(1) Media Guide L Mounting Position Adjustment
1. Loosen the three screws retaining the media guide L.
TIP
To loosen the leftmost screw on media guide L, use a Phillips screw driver by inserting it through the
gap in I/H assembly.
2. Attach the cutter positioning jig near (right side of) the retaining screw of media guide L.
NOTE
Before starting work, tentatively tighten the cutter holder.
3. Fully tighten the sub platen screw that is nearest to the origin, and place the cutter .5mm from rear of slot
in platen. Tightened screw.
No. Part name
1
Platen
2
Sub platen
3
Cutter holder height adjusting
jig



To Next Page
