RJ-901C/RJ-900C 　 Maintenance Manual 7 Adjustment
7-35

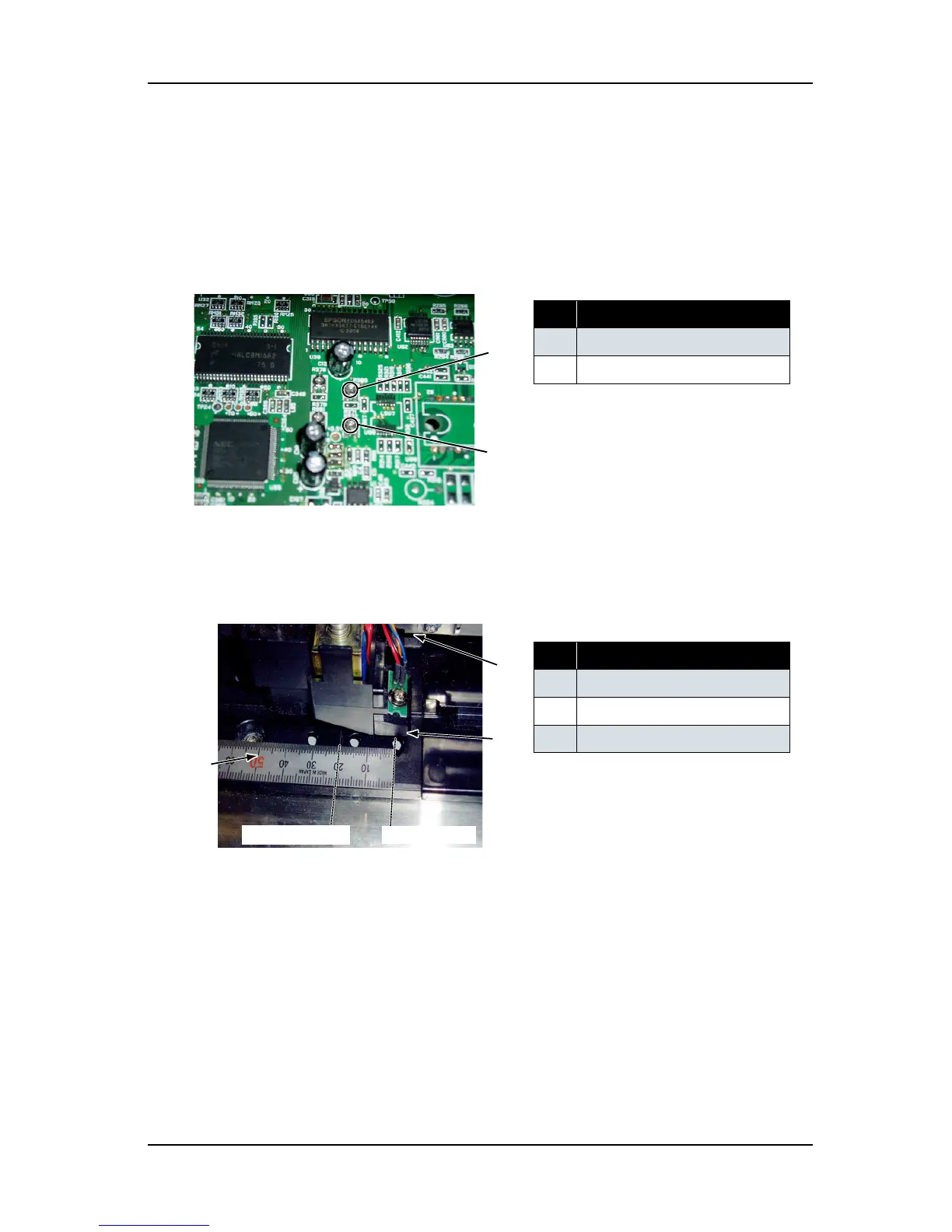

9. Adjust the P_EDGE sensor adjusting volumes as shown below so that the value displayed in the operation
panel becomes "75±5".
Counterclockwise: Sensitivity increases
Clockwise: Sensitivity decreases
• Trimmer R369: Rough adjustment
• Trimmer R372: Fine adjustment
10. Remove the standard media, then move the paper edge sensor to the position 20 mm apart from the media
set position as shown below.
11. Check that the value displayed in the operation panel is "30" or less.
No. Part name
1
Trimmer R369
2
Trimmer R372
No. Part name
1
Metal measure
2
P_EDGE sensor
3
Carriage





Media set position
P_EDGE Sensor
