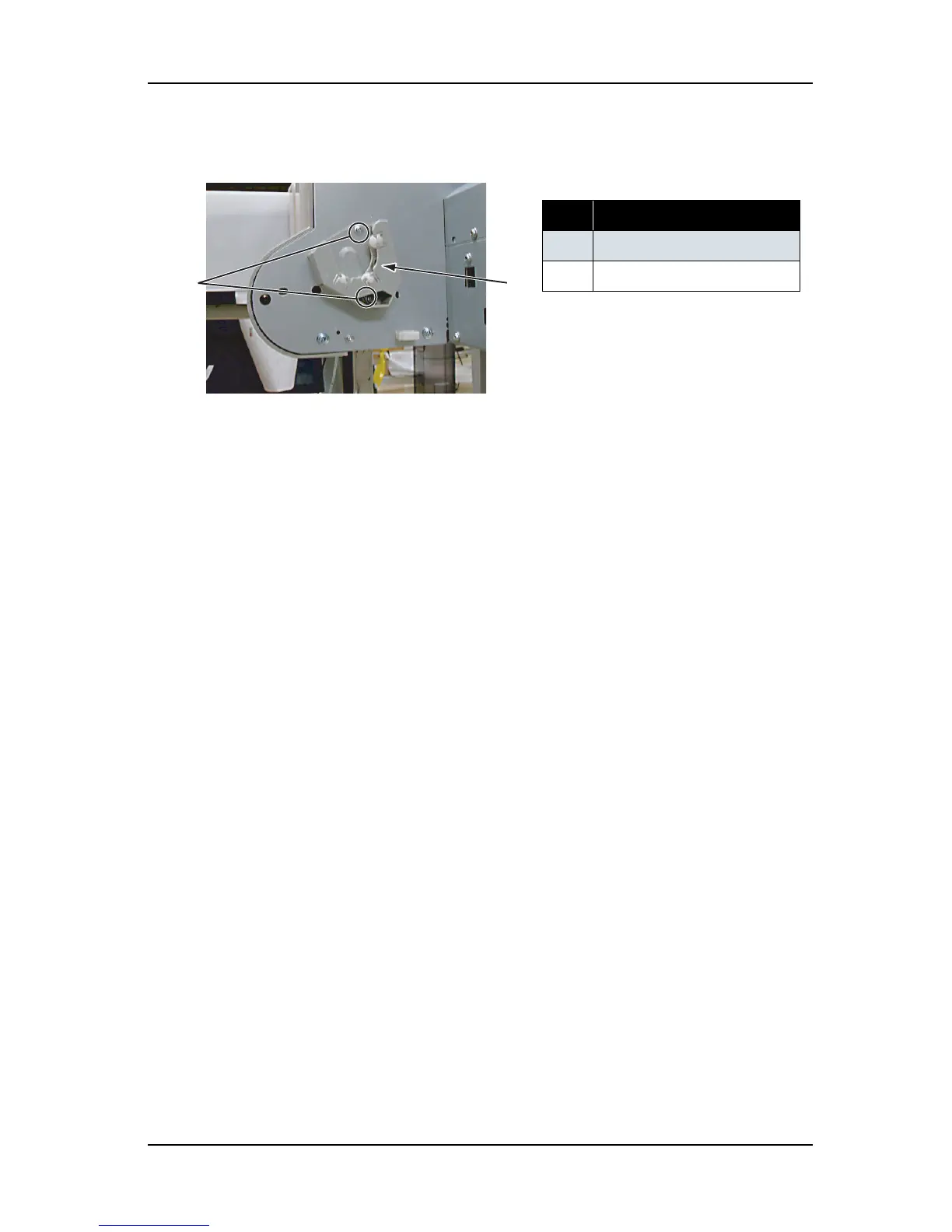

RJ-901C/RJ-900C
　
Maintenance Man
ual
4 Parts Replacement
4-15
3.
Remove th
e scroller recei
ver L
-retaining screw (tapping screw M3
×
6, S tight cup: 2p
cs).
4.
Remove th
e scroller recei
ver R.
5.
To reassemble th
e unit, reve
rse the removal p
rocedure.
No.
Part name
1
Scroller receiver R
screw
2
Scroller receiver R
1
2
60
62
Table of Contents
General
7
Default Chapter
1
Service Manual
1
Table of Contents
7
1 Safety Instructions
14
Introduction
14
Warnings, Cautions and Notes
14
Important Safety Instructions
15
Warning Labels
18
Handling the Warning Labels
18
Locations and Types of Warning Labels
19
Operation Labels
21
Handling the Operation Labels
21
Locations and Types of Operation Labels
22
2 Product Overview
25
Introduction
26
Features
26
Part Names and Functions
27
Front Section
28
Rear Section
29
Operation Panel
30
Plotter Status
33
Maintenance Mode2
33
Normal
33
Self-Diagnosis Function
33
Setup Menu
33
3 Specifications
35
Introduction
36
Product Specifications
36
Interface Specifications
41
USB Interface Specifications
41
Network Interface Specifications
42
Options/Supplies List
42
Options
42
Supplies
43
Choosing a Place for the Plotter
44
4 Parts Replacement
47
Introduction
49
Removal of Covers
51
Removing R Side Cover
52
Removing Operation Panel Unit
54
Removing L Side Cover
55
Removing Ink Holder (I/H) Cover
57
Removing Front Cover
58
Removing Top Cover
59
Removing Media Guide R2
60
Removing Scroller Receiver (L, R)
60
Replacement of Board Base Section Components
62
Replacing Connector Panel, Network Interface Card (NIC), Cooling Fan
62
Removing Board Bracket
64
Replacing Main Board Assembly
67
Replacing Power Board Assembly
68
Replacing Inlet Assembly
70
Replacement of PF Driving Section Components
72
Replacing PF Motor Assembly
72
Replacing PF_ENC Assembly
73
Replacing PF_ENC Scale
74
Replacement of CR Driving Section Components
76
CR Motor Assembly
76
Replacing CR_HP Sensor
77
Replacing Lever Sensor
78
Replacing T Fence
79
Side View
81
Replacing CR Driven Pulley
82
Replacement of Head Section Components
83
Replacing Print Head
83
Replacing Cutter Holder Assembly
87
Replacement of Maintenance Section Components
93
Removing Maintenance Base Assembly
93
Replacing Pump Cap Assembly
98
Replacing Cleaner Head (Cleaning Wiper)
99
Replacing Flushing Box Assembly
100
Replacement of Ink Supply Section Components
101
Replacing Ink Holder (I/H) Assembly
101
Replacing Ink Sensor Assembly
103
Replacing Cover Sensor Assembly
106
Replacement of Frame Section Components
108
Replacing Suction Fan Assembly
108
Replacing P_REAR Sensor Assembly
109
Replacement of Cable Guide Section Components
110
Replacing CR Board Assembly
110
Replacing Ink Tube
111
Replacing CR Tape Wire
114
5 Self-Diagnosis Mode
121
Introduction
122
Preparation
122
Preparations on Machine
122
Starting up
122
Operations in Self-Diagnosis Mode
124
Operating Self-Diagnosis Mode
124
Diagnosis Items in Self-Diagnosis Menu
126
Inspection Menu
126
5.4 Inspection Menu
127
Memory Size Menu
128
Backup Parameter Version
129
Firmware Version
129
Revision of Main Board Assembly
129
Setting of DIP Switches
129
Version Menu
129
Operation Panel Menu
130
Cover Sensor
131
Ink END Sensor
131
Ink ID Sensor
131
Ink NOT Sensor
131
Lever Sensor
131
Menu
131
P_EDGE Sensor
131
P_REAR Sensor
131
Sensor Menu
131
Waste Fluid Box Sensor
131
Encoder Menu
134
Fan Menu
134
Menu
134
History Menu
135
Menu
135
Head Waveform Menu
137
5.5 Adjustment Menu
139
Default Chapter
139
Adjustment Menu
139
Menu
142
Skew Check Menu
142
Head Rank Input Menu
143
Head Nozzle Check Menu
144
Head Slant Check Menu 1
146
Head Slant Check Menu 2
147
CW Adjustment
149
Repeatability Adjustment Menu
153
CCW Adjustment
156
Band Feed Correction Menu
159
Top and Bottom Adjustment Menu
160
P_REAR Sensor Position Adjustment Menu
161
Test Printing Menu
162
Head Cleaning Menu
163
Feed Pitch Check Menu
164
Software Counter Initialization Menu
164
Solid Print Menu
166
Cleaning Menu
167
Sample Printing Menu
168
Parameter Menu
169
Parameter Initialization Menu
170
Parameter Update Menu
170
Endurance Running Menu
178
CR Motor Endurance Menu
179
General Endurance Menu
179
PF Motor Endurance Menu
179
Endurance Running Check Menu
187
Media Feed Menu
187
9 Troubleshooting
189
7 Adjustment
201
8 Maintenance
238
9.1 Introduction
246
10 Appendix
326
6 Maintenance Mode2
189
Introduction
189
Introduction
190
Maintenance Menu
190
Operating Maintenance Mode2
190
Operations in Maintenance Mode2
190
Starting up the Maintenance Mode2
190
Counter Display Menu
191
Counter Initialization Menu
194
Counter Update Menu
195
Counter Print Menu
197
Media Feed Menu
197
Adjustment Item
201
Introduction
201
Jigs and Tools
208
Parameter Backup
208
Working with Dedicated Network Software
208
Required Environment
209
Receiving Parameters
212
Firmware Installation
213
Sending Parameters
217
Adjustment Procedure
219
Jigs and Tools
219
PF Speed Reduction Belt Tension Adjustment
219
Adjustment Procedure
221
Jigs and Tools
221
PF Encoder Assembly Position Adjustment
221
CR Belt Tension Adjustment
223
Head Alignment Adjustment(Horizontal Height)
224
Head Alignment Adjustment(Slant)
226
Adjustment Procedure
227
Cutter Holder Height Adjustment
227
Jigs and Tools
227
Adjustment Procedure
230
Jigs and Tools
230
PG Height Adjustment
230
Media Sensor Sensitivity Adjustment
231
P_EDGE Sensor Sensitivity Adjustment
232
P_REAR Sensor Adjustment
234
Introduction
238
Periodical Services
239
Part Life Information
240
Lubrication/Bonding
242
Transportation of Plotter
243
Introduction
246
Troubleshooting with Error Messages
246
Operation Status
247
Errors with Message
250
Data Errors
259
Command Errors
260
Command Errors
261
Errors Requiring Reboot
262
Error Messages During File Transmission
276
Initial Operation Problems
277
Troubleshooting Without Error Messages
277
Media Feed Problems
286
Printing Problems
290
Noise Problems
308
Media Cutting Problems
312
Online Function Problems
316
Other Problems
319
Problems in Using Dedicated Network Software
322
Maintenance Part List
325
Wiring Diagram
325
10 Appendix
326
Maintenance Part List
326
Wiring Diagram
326
Required Tools
327
Main Board
328
Frame Assy
329
Exploded View
333
5
Based on 1 rating
Ask a question
Give review
