RJ-901C/RJ-900C 　 Maintenance Manual 4 Parts Replacement
4-51

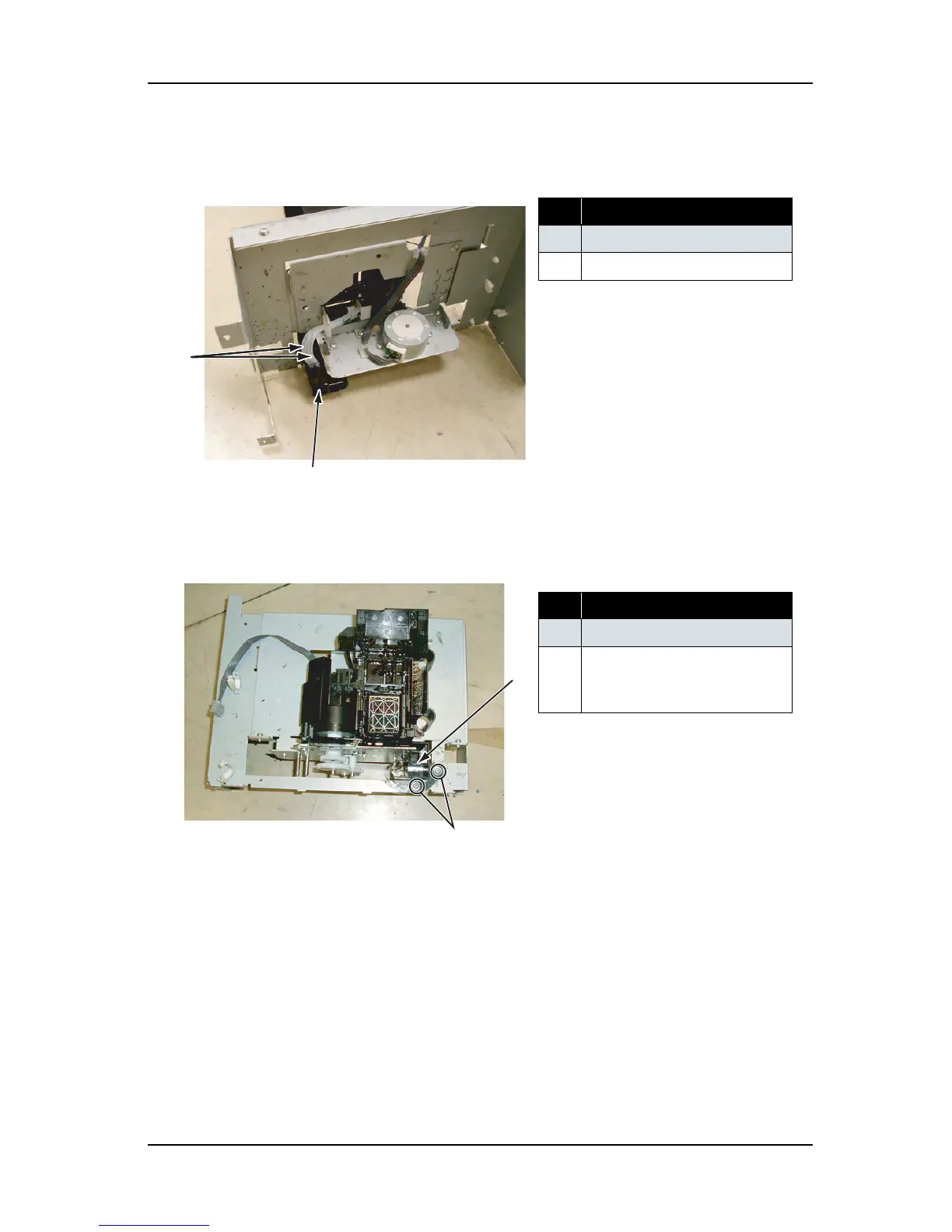

9. Remove the two tubes inserted in the waste fluid guide.
10. Remove the waste fluid guide-retaining screw (tapping screw M3 x 6, S tight cup: 2pcs).
11. To reassemble the unit, reverse the removal procedure.
No. Part name
1
Waste fluid guide tube
2
Waste fluid guide
No. Part name
1
Waste fluid guide
2 Waste fluid guide-retaining
screw (tapping screw M3 x 6, S
tight cup)
1
2
Back side of maintenance base assembly
1
2
To Next Page
