4-40
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.30
Repairs
REP 1.29 Exit Roll and Bushings
Parts List on PL 4.3
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Middle Cover (REP 1.3).
3. Remove the Exit Roll and Bushings (Figure 1).
a. Remove the Drive Gear, release the latch.
b. Remove the Bushings (2), release the latch and rotate the bushing.
c. Remove the Exit Roll.

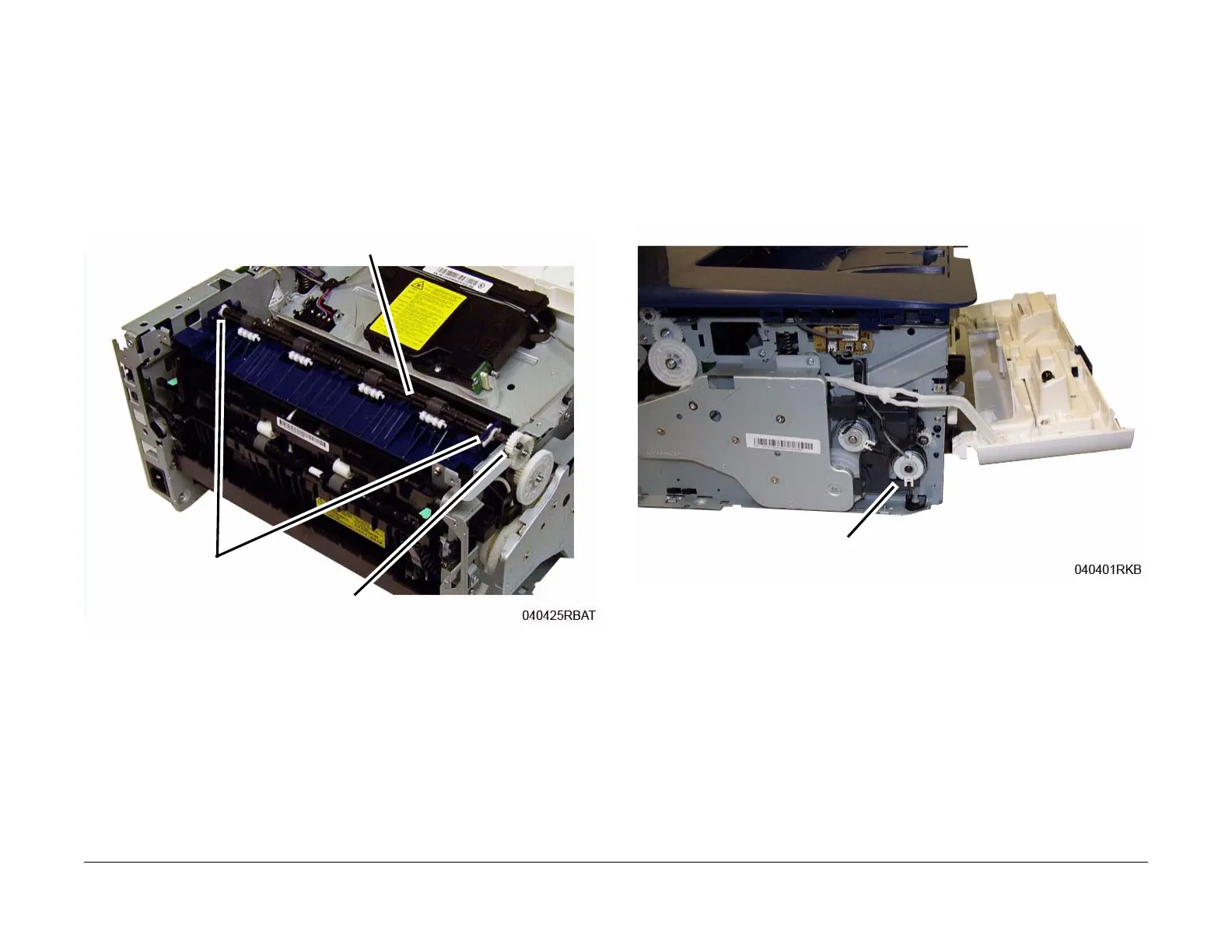

Figure 1 Exit Roll and Bushing (Top View)
Replacement
Install the components in the reverse of removal.
REP 1.30 Feed Idler Gear
Parts List on PL 4.6
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Left Side Cover (REP 1.2).
3. Remove the Feed Clutch and Drive Gear (Figure 1):
a. Remove the E-ring and Washer from the Feeder Clutch.
b. Remove the Feeder Clutch and Drive Gear.
Figure 1 Feed Clutch Removal
Exit Roll
Bushings
Drive Gear
Feed Clutch

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
