Xerox WorkCentre 3225 User Manual

June 2014
4-9
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.4, REP 1.5
Repairs

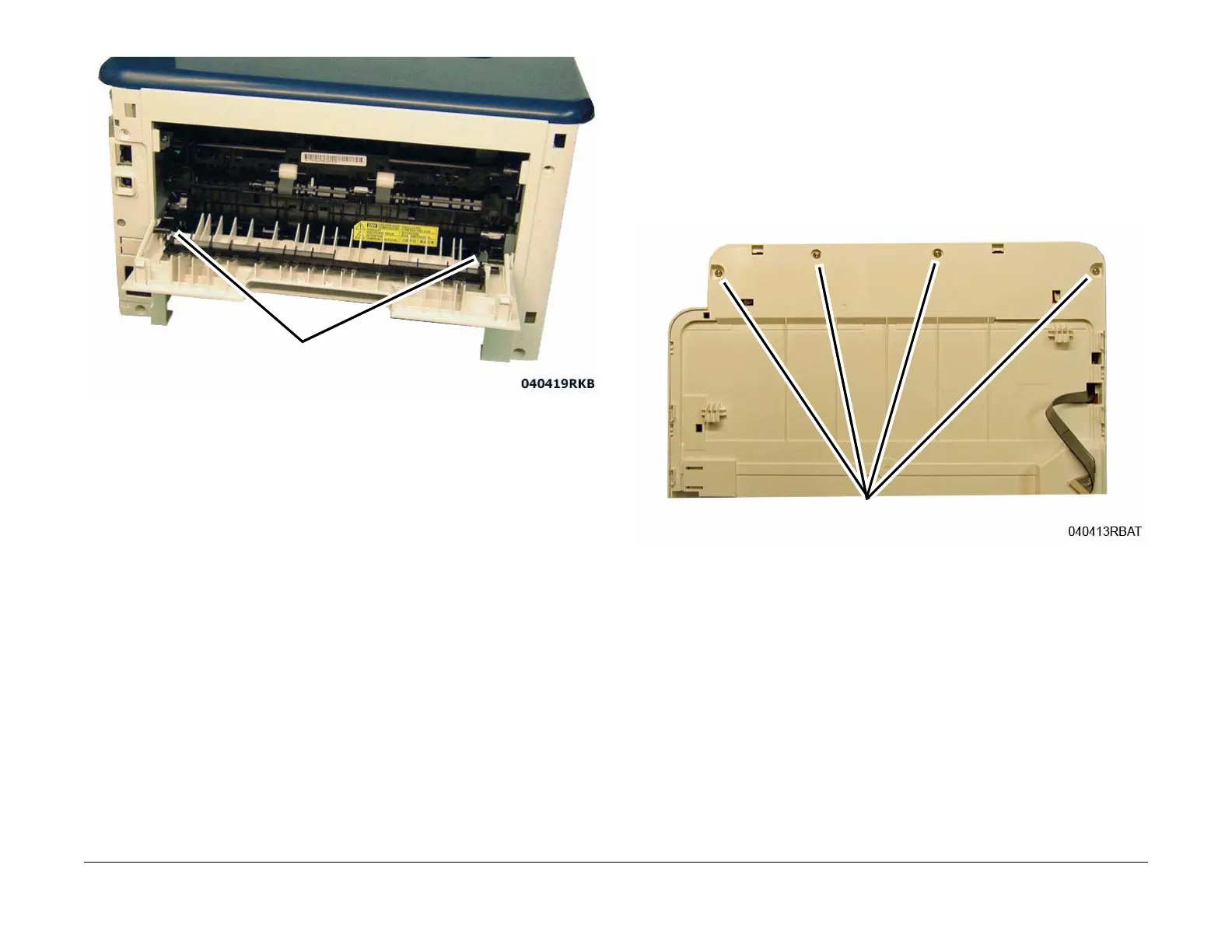

Figure 2 Support Arms
4. Push down on the top of the Rear Cover to release the Latch Hooks (3) and remove the
cover.
Replacement
Install the components in the reverse of removal.
Important: If the Rear Cover is being replaced, remove the Data Plate Label from the old Rear
Cover and install it onto the new Rear Cover (Figure 1).
REP 1.5 Control Panel PWB
Parts List on PL 8.1
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Right Side Cover (REP 1.2).
3. Remove the ADF Module (REP 1.22).
4. Remove the ADF/Scanner Assembly (REP 1.28).
5. Remove the screws (4) from under the Control Panel (Figure 1).
Figure 1 Control Panel Screws (Bottom View)
Support Arms
Screws

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
