Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 4.5
Parts Lists

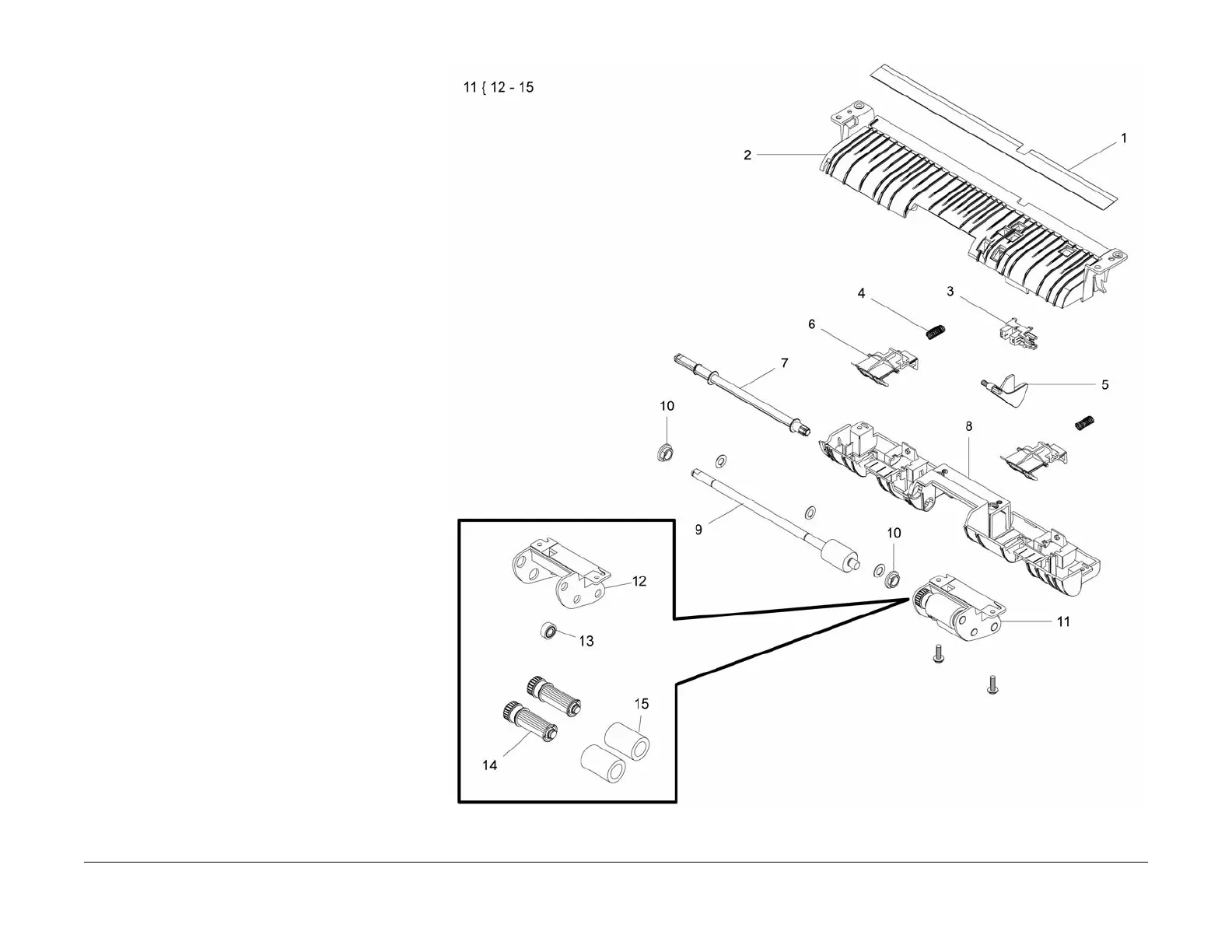

PL 4.5 Base Pick Up
Item Part Description
1 – Duplex Path Sheet
2 – Duplex Guide
3 130N01758 Sensor
4– Spring
5 – Paper Tray Empty Sensor
6 – Duplex Guide Lever
7 – Pick Up Shaft
8 – Pick Up Guide
9 022N02802 Paper Drive Roller
10 – Bushing
11 130N01760 Paper Feed Roll Assembly
12 – Feed Roll Holder
13 – Idle Pick Up Gear
14 – One Way Clutch
15 – Retard Roller
