Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.18, REP 1.19
Repairs
REP 1.18 Duplex Paper Guide
Parts List on PL 4.2
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Paper Cassette.
3. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Rear Cover (REP 1.4).
NOTE: The Rear Cover holds the Duplex Paper Guide Pivot in the frame cutout. With the
Rear Cover removed, the paper guide will come out of the pivot when the front latches are
released.
4. Remove the Duplex Paper Guide (Figure).
a. From the front of the printer press the Duplex Paper Guide release tabs (2) (Figure
1).
b. From the rear of the printer slide the Duplex Paper Guide off the pivots to remove it
(Figure 2).

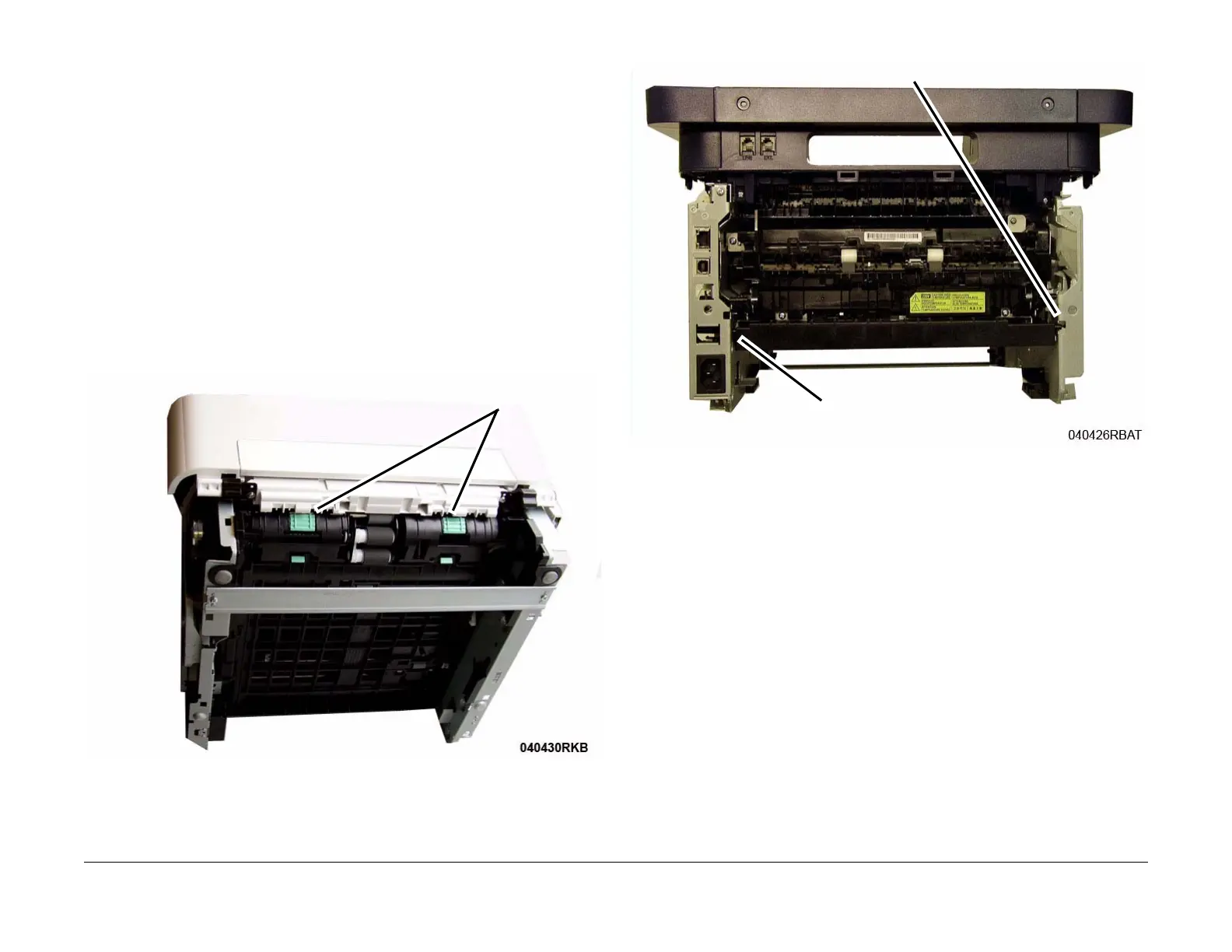

Figure 1 Duplex Paper Guide Release Tabs (Bottom View)
Figure 2 Duplex Paper Guide Pivots (Rear View)
Replacement
Install the components in the reverse of removal.
1. Insert the pivot on the left side into the hole.
2. Insert the right pivot into the frame cutout.
3. Lift and latch the front of the Duplex Paper Guide into position (Figure).
Release Tabs
Pivot Hole
Pivot Cutout

Xerox WorkCentre 3225 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Memory	128 MB
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Paper Output Capacity	120 sheets
Duplex Printing	Manual
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time	As fast as 10 seconds
Maximum Number of Copies	99 copies
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Weight	11.4 kg
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, A4, A5, B5
Operating System Compatibility	Windows, Mac, Linux
Fax Transmission Speed	Approx. 3 seconds per page
